EFCO CORPORATION 6/2012 PART NO. Y310 Page 11 of 13
Series 5600 Curtain Wall Concealed Vent Installation Instructions
Gasket Gasket
Gasket Gasket

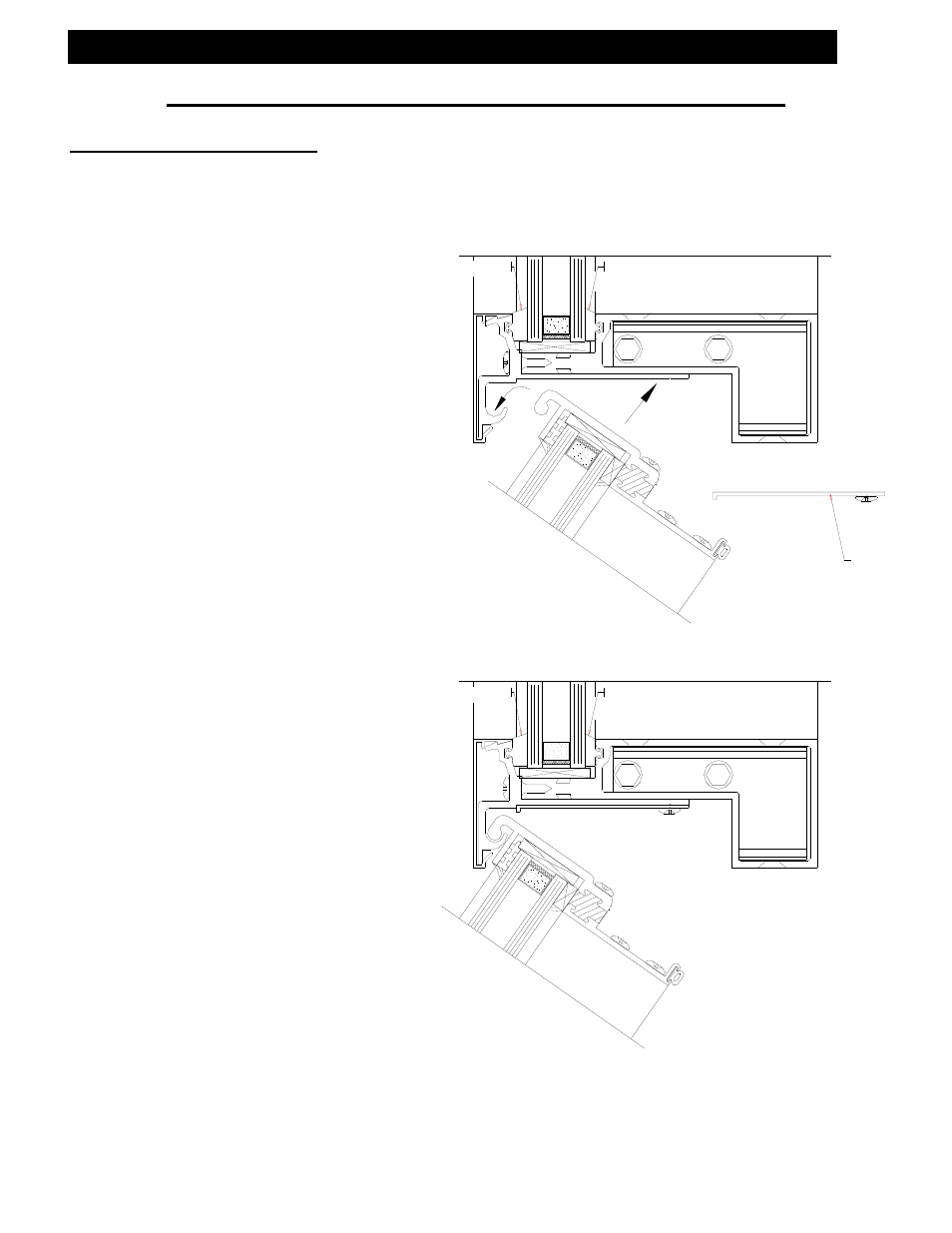

Section VII: Installation of Sash Frame
Installation of Sash Frame
A.) Install sash frame into opening.
B.) Set sash from exterior, tilting top
of sash frame inward to allow
front of frame to hook into
horizontal as shown.
C.) After sash frame is hung in
opening, install anti-lift clip at 3”
long. Locate one at each end of
vent and one at centerline of
D.L.O.
D.) Attach to horizontal with 2 teks.
Anti-Lift
Clip
