Series 5600 Curtain Wall Concealed Vent Installation Instructions
Section VI: Sash Inspection
Sash Inspection
A.) Inspect Sash Assembly.
1.) Inspect all corners for square ness.
2.) Verify that exposed surfaces are free of scratches dents, etc.
3.) Verify the glass is free of scratches.
4.) Inspect hardware to insure proper working order, and alignment.
5.) Inspect bulb gasket around perimeter of sash frame to insure proper position.
1/8" MIN
.
B
A
C

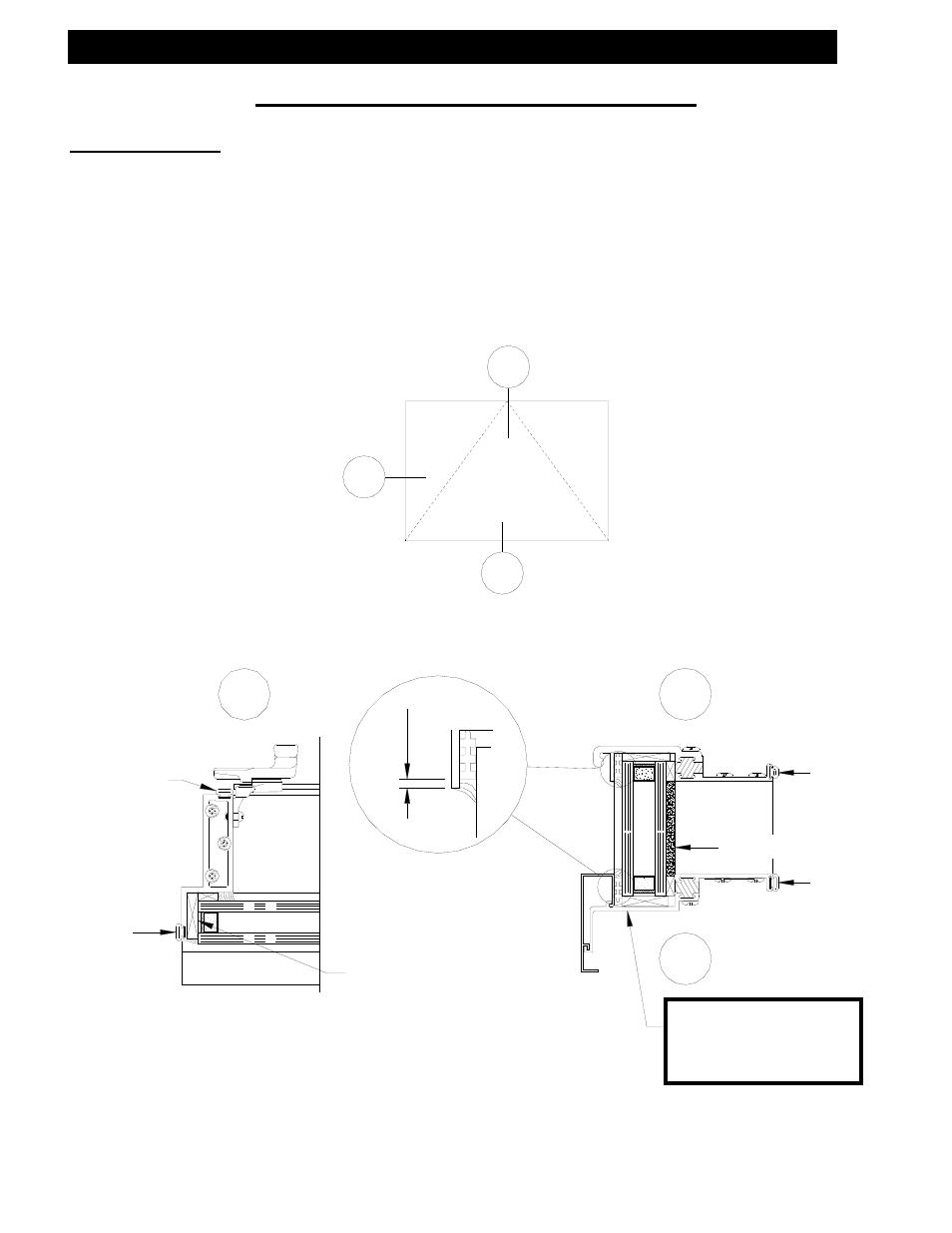

Sash Elevation
Sash Jamb Sash Head
Sash Sill
B
C
A
Side Block
Side Block
Bulb Vinyl
Bulb Vinyl
Bulb Vinyl
Bulb Vinyl
Note: Jamb sash is
welded to head
and sill at each
corner.
