Model SD12 Scooter Dynamometer Installation Guide
C H A P T E R 2
Unpacking the Dyno
2-2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
UNPACKING THE DYNO
When you receive your dyno, examine the exterior of the shipping container for any
visible damage. If damage is detected at this stage, contact the shipper or Dynojet
before proceeding with unpacking.
Use the following steps to unload your dyno. You will need to provide equipment
capable of lifting a minimum of 454 kg (1000 pounds) to move the crated dyno into
position in your dyno room. Refer to “Dynamometer Specifications and
Requirements” on page 1-4 for more information.
The following directions describe how to unpack, and install your dyno. Follow the
directions in the order that they are presented.
U NPACKING THE D YNO
1 Move the crated dyno to a clear area near your dyno room.
2 Using a pry bar, or a large flat screwdriver, and a hammer, carefully remove the
top and sides of the crate.
Note: At this point, you will want to inspect the exterior of the dyno for any
indications of damage. Report any damage immediately.
# RECORD
Be sure you record the dynamometer number on the inside cover of this
manual.
3 Remove the hardware boxes from the crate.
4 Verify the contents of the hardware boxes and set aside.

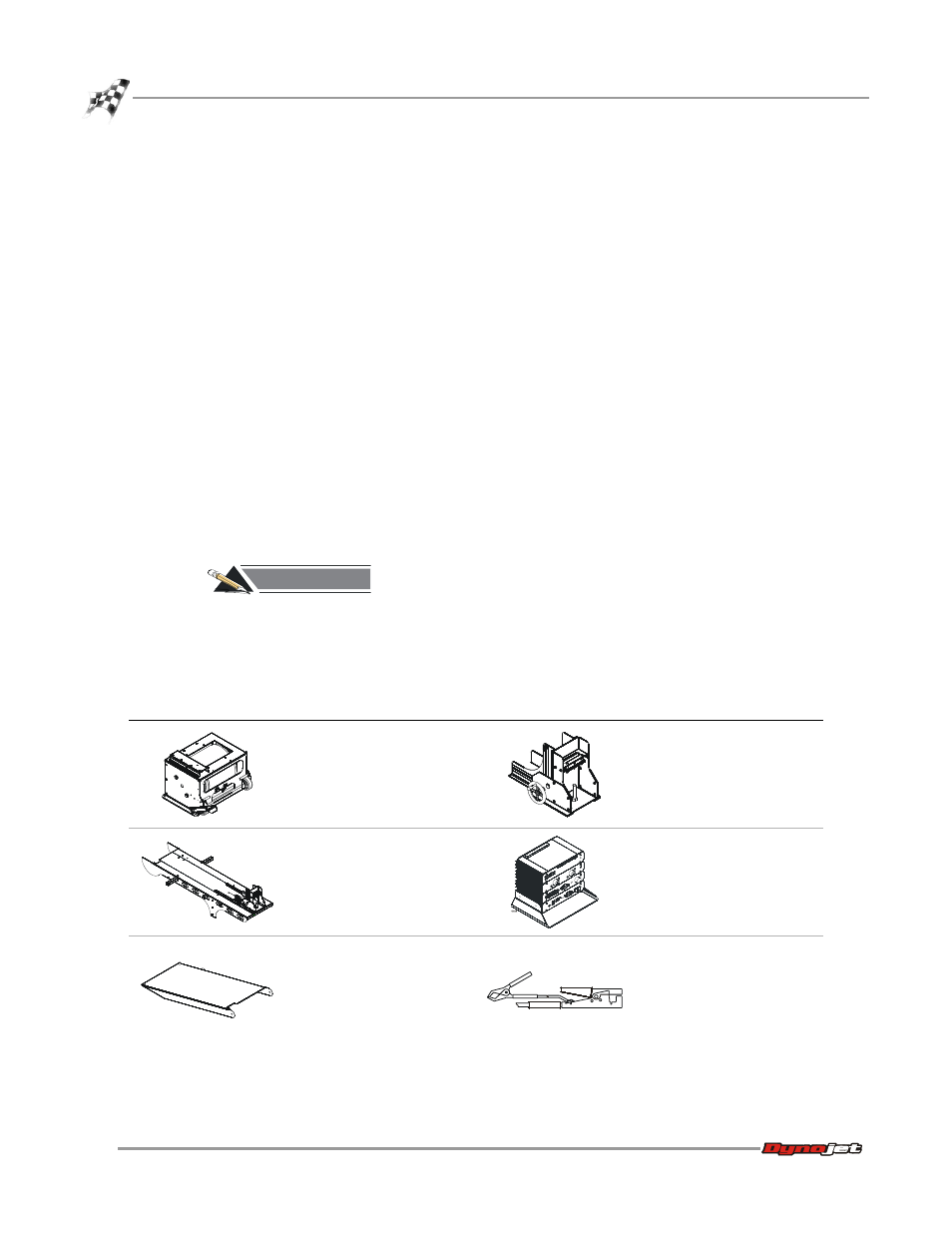

part description part description
drum wheel clamp
P/N 71300003
front support dyno electronics
P/N 76199001
ramp inductive secondary
pickup
P/N DE100-109S
