E XPLORING THE G RAPH O PTIONS
To view the list of graph options available, choose Tools  Graph Options. or right-
click on the graph. A description of these options follows.

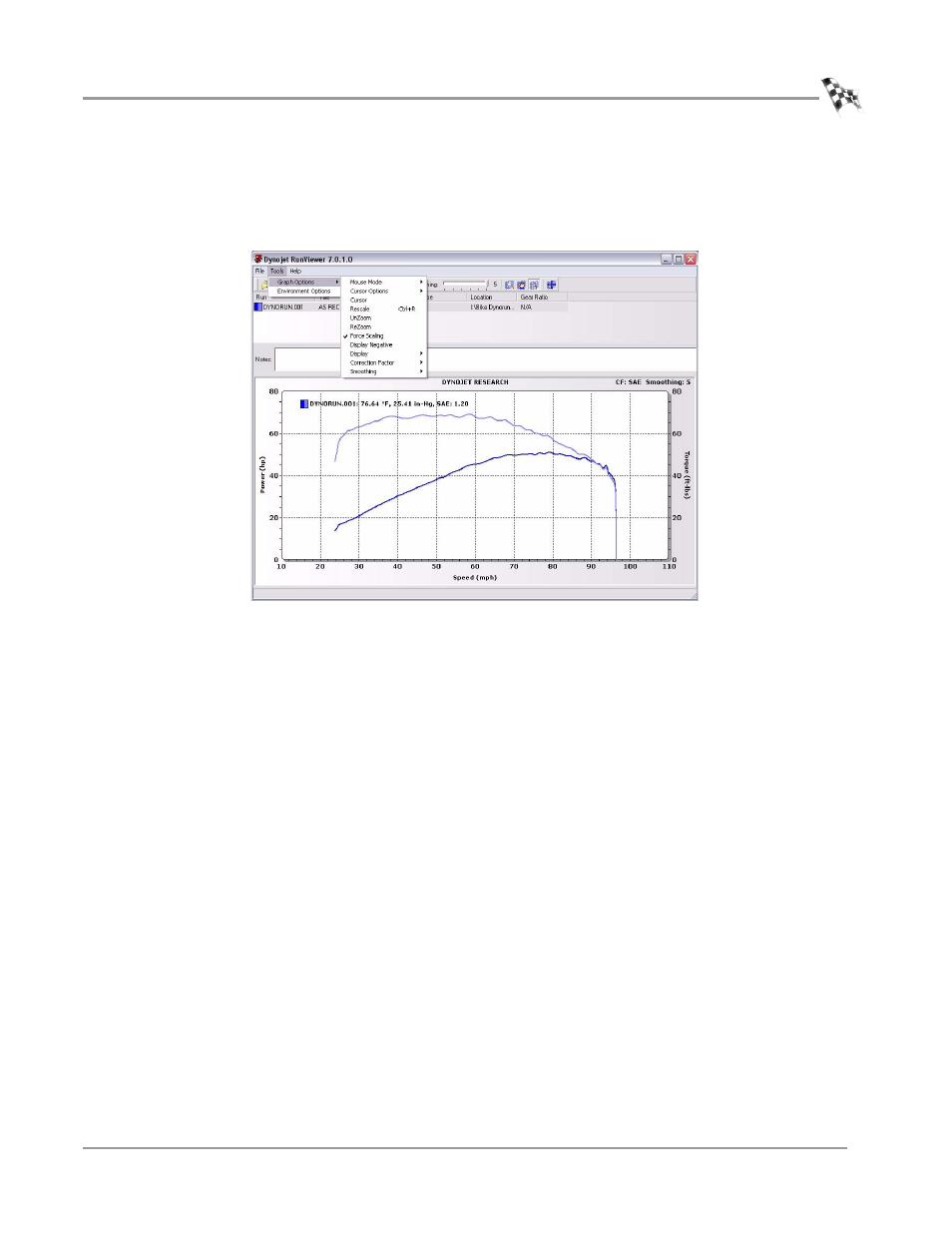

Figure 6: Graph Options
Mouse Mode—changes the mouse between point, pan, and zoom mode.
• Point Mode — lets you move the vertical cursor and select runs.
• Pan Mode — lets you move the graph around inside the window.
• Zoom Mode — lets you change the magnification level in the graph display.
Cursor Options—determines what will be displayed along with the intersection
values.
• Display Run Name — displays the run name.
• Display Unit Name — displays the unit name.
• Font Size — lets you change the font size between small, medium, and large.
Cursor—turns the vertical cursor on and off. The cursor may be placed with a mouse
click on the graph, and the arrow keys (optionally in combination with the CTRL key)
move the cursor left and right. The cursor places a vertical line on the graph that will
display the values where the line intersects the graphed runs.
Rescale—resets the scale of the graph to standard.
UnZoom—returns the viewing area to the previous magnification.
