A U T O D Y N O M A I N T E N A N C E
Model 224 Dynos with Spring Applied Air Release (SAAR) Brake System
Version 3 Maintenance Guide for Automotive Dynamometers
15
17 Replace the nut, removed earlier, on the bottom air can rod.
18 Adjust the brake shoe clearance as necessary. Refer to “Maintaining the SAAR
Brake Shoe Clearance” on page 8 for more information.
19 Press the red button on the pendant to activate the drum brakes; the button will
be lit.

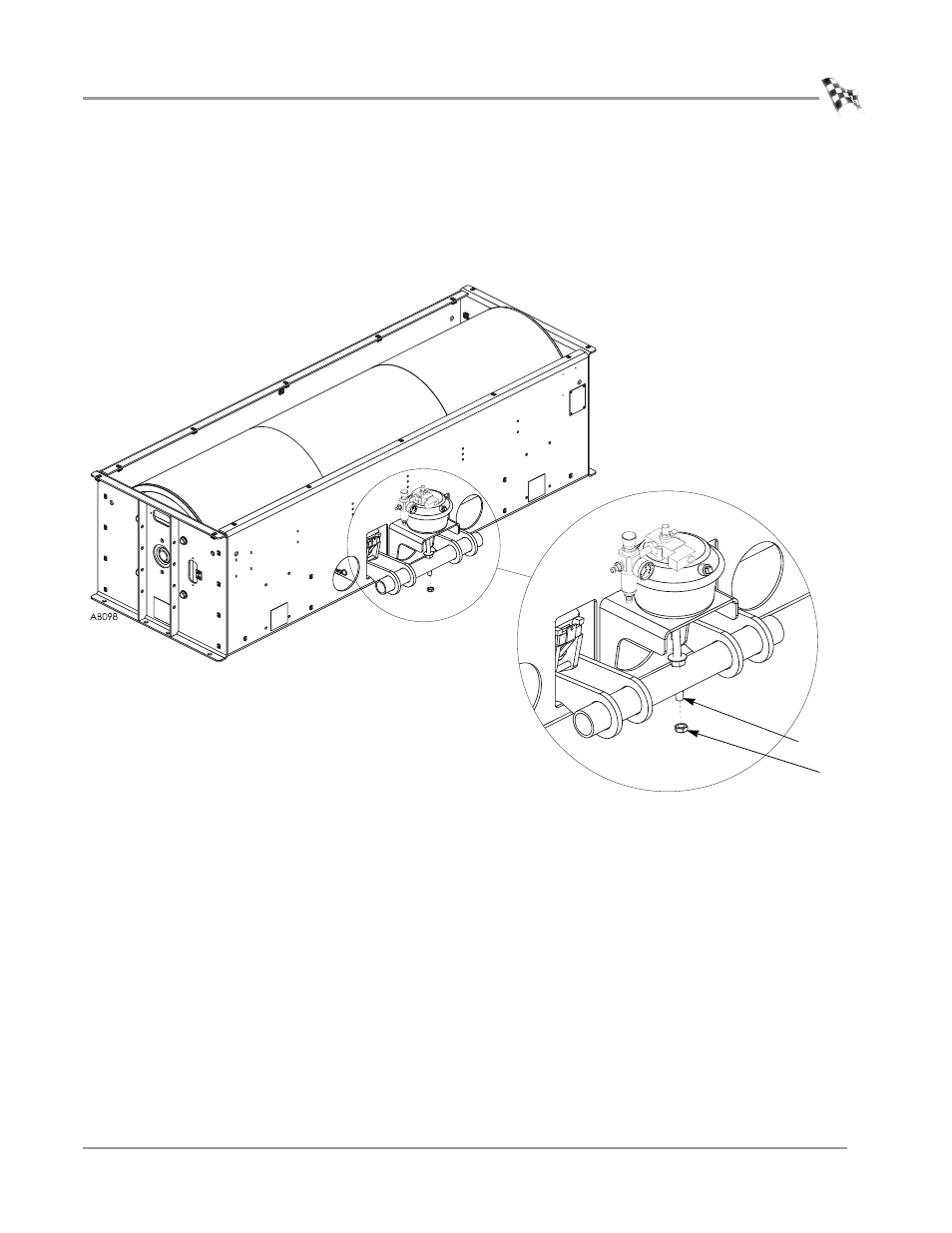

Figure 14: 224 SAAR Brake—Replace the Nut on the Bottom Air Can Rod
air can rod
nut
