Pit Covers Installation
Version 3 In Ground Model 200iPX/250iPX Motorcycle Dynamometer Installation Guide
2-53
7 Loosely install the iPX module drum guard mounting bracket to the underside of
the middle pit cover using four 1/4-20 x 5/8-inch pan-head torx screws.

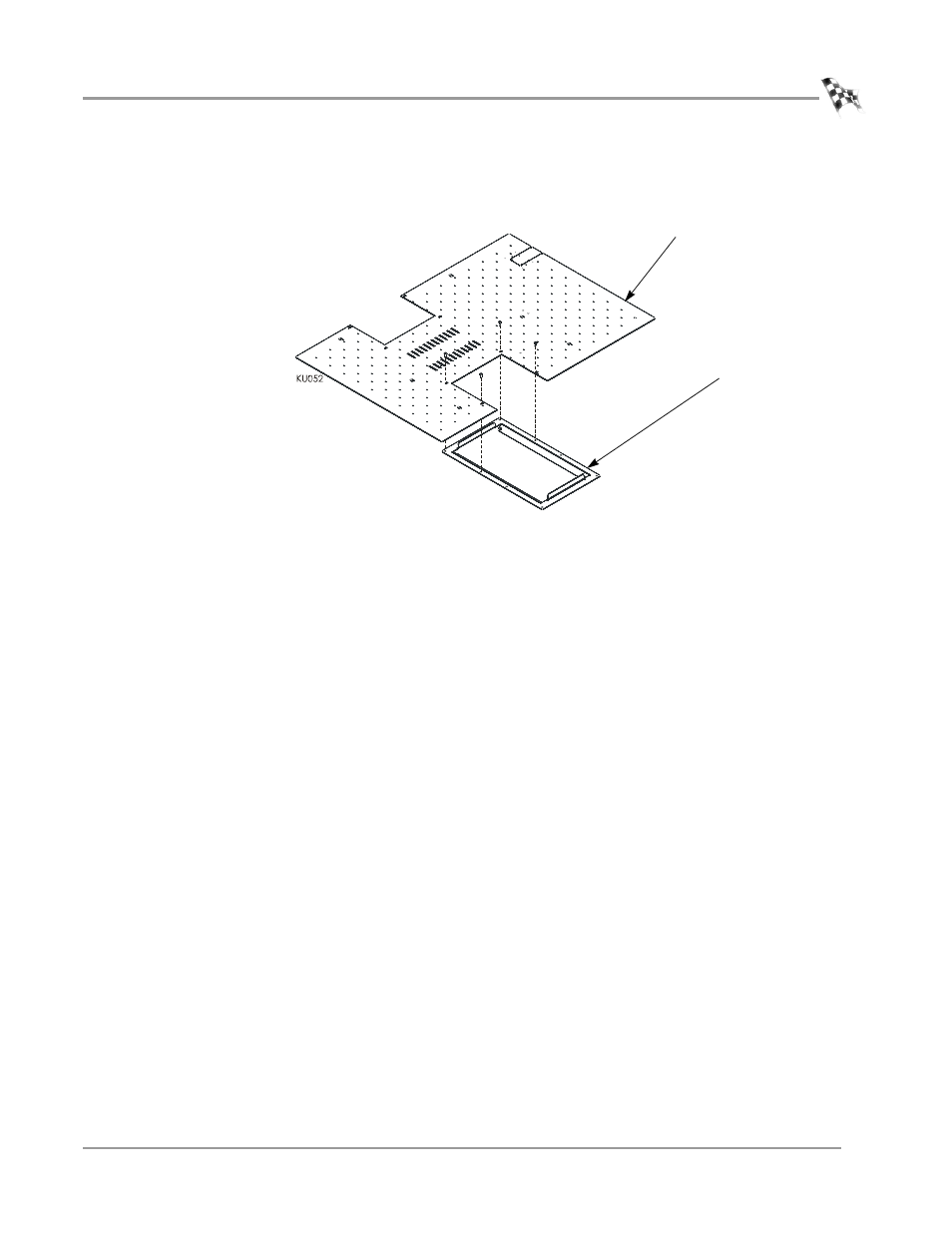

Figure 2-43: Install the iPX Module Drum Guard Mounting Bracket
drum guard mounting
bracket
pit cover
