I N S T A L L A T I O N
Dyno Drum Module Installation
Version 3 In Ground Model 200iPX/250iPX Motorcycle Dynamometer Installation Guide
2-3
5 Verify the contents of the hardware boxes and set aside.

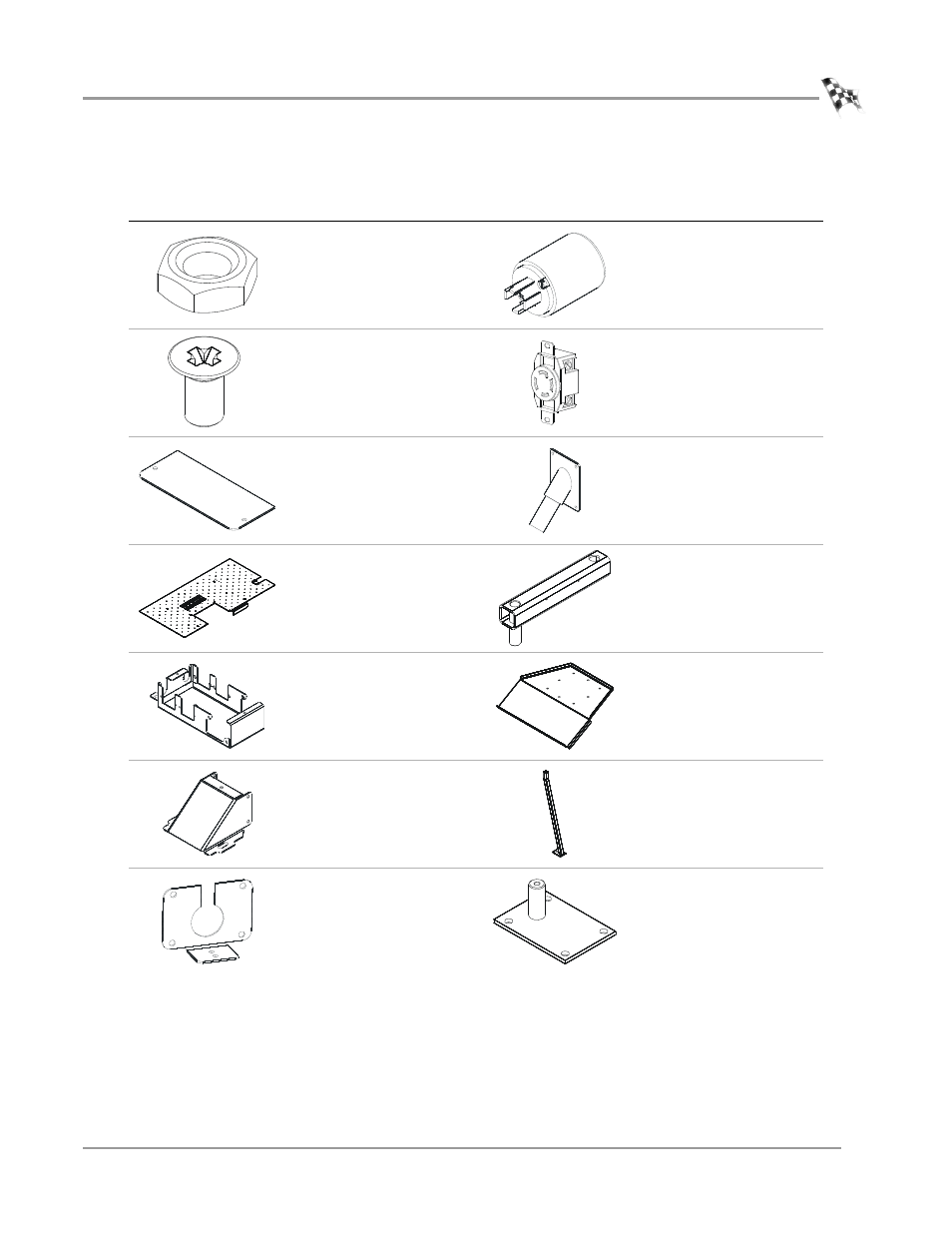

part description part description
nut, 4-40, hex (4)
P/N 134260301
plug, turnlok, 30A,
125/250V
P/N 43816430
screw, 4-40 x 3/8", flat-head
(4)
P/N 136206141
receptacle, turnlok, 30A,
125/250V
P/N 43826430
cover, fan connector holes
P/N 21221500
control pod spindle
assembly
P/N 61329000
pit cover plate, left
P/N 21226105
monitor arm (2)
P/N 61329100
cable junction box base
P/N 21228000
monitor tray
P/N 61329101
cable channel end cap
P/N 21228519
monitor support
P/N 61329500
cable hole cover track
mount
P/N 21228520
blower mount (2)
P/N 61329601
included on P/N 76722005
