Note:
¡ When the telephone line cord and power cord are connected, the unit will start detecting the dialing mode.
¡ Display:
¡ Wait until one of the following messages is displayed.
¡ —If your line has touch tone service,
¡ —If your line has rotary pulse dial service,
¡ If the power cord is disconnected or a power failure occurs, the unit will detect the dialing mode again when
power is restored.
¡ You can change the dialing mode setting manually. See “Setting the dialing mode” on page 42.
¡ If you connect the power cord before connecting the telephone line cord, the following messages will be
shown alternately.
Display:
Connect the telephone line cord.
¡ For additional equipment protection, we recommend the use of a surge protector. The following types are
available; TELESPIKE BLOK MODEL TSB (TRIPPE MFG. CO.), SPIKE BLOK MODEL SK6-0 (TRIPPE
MFG. CO.), SUPER MAX (PANAMAX) or MP1 (ITW LINX).
¡ When you operate this product, the power outlet should be near the product and easily accessible.
¡ If the following message is displayed when the unit is plugged in, the recording paper set lever is released.
Display:
Move the lever back (see step 3 on page 20).
CHECK LEVER
TEL LINE IS OPEN CONNECT TEL LINE
CHECKING LINE
21
Initial preparation

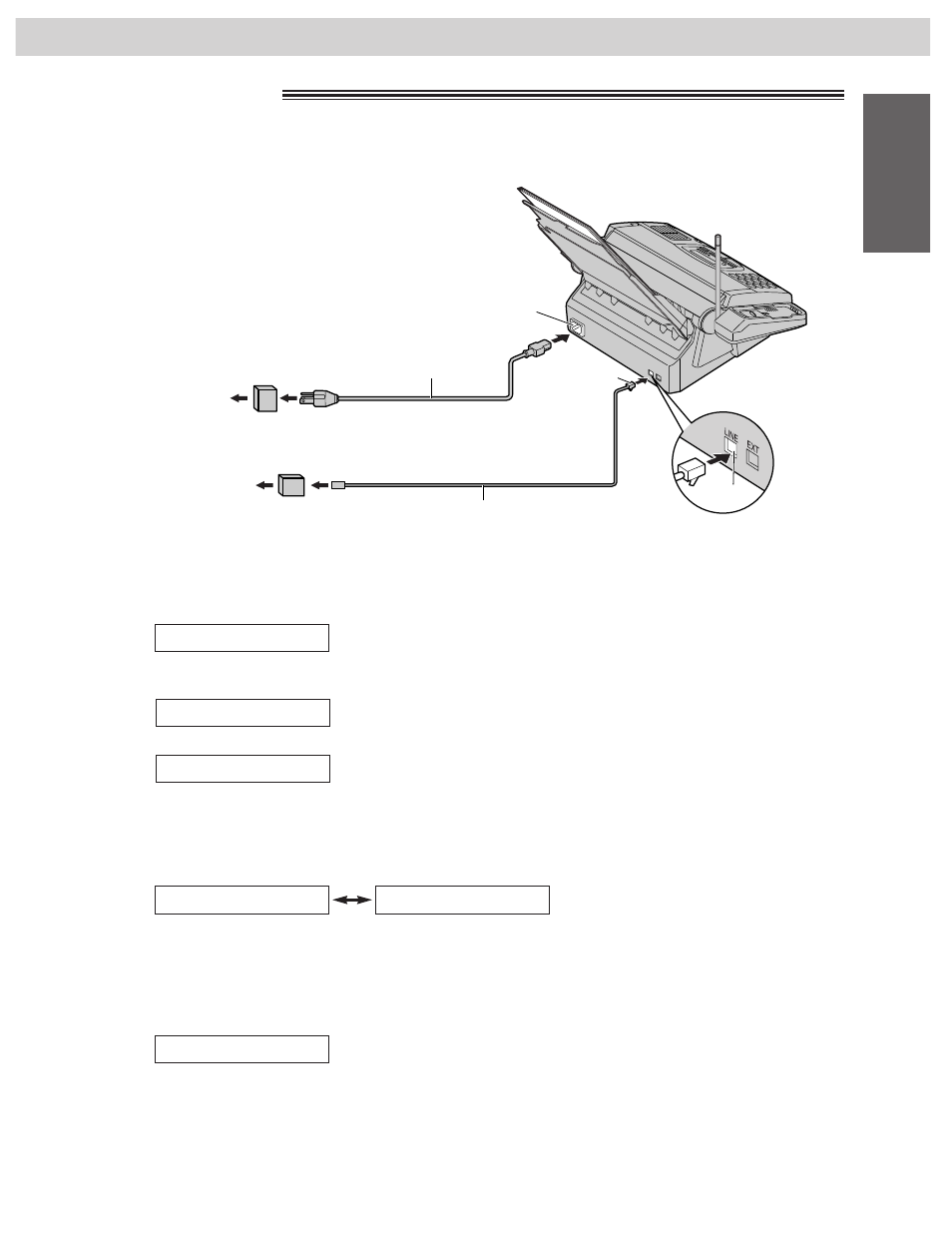

Connections !
Power outlet
(120 V, 60 Hz)
Line surge
protector
( )
( )
Power surge
protector
Power socket
Single telephone line
(RJ11C)
Power cord
Telephone line cord
Connect to
“LINE”.
LINE
1 Connect the telephone line cord.
2 Connect the power cord.
¡ When the power is turned on for the first
time, the unit will print an information list
about the starter film.
Setup (Main Unit)
LINE IS TONE
LINE IS PULSE
