21R1 3/07

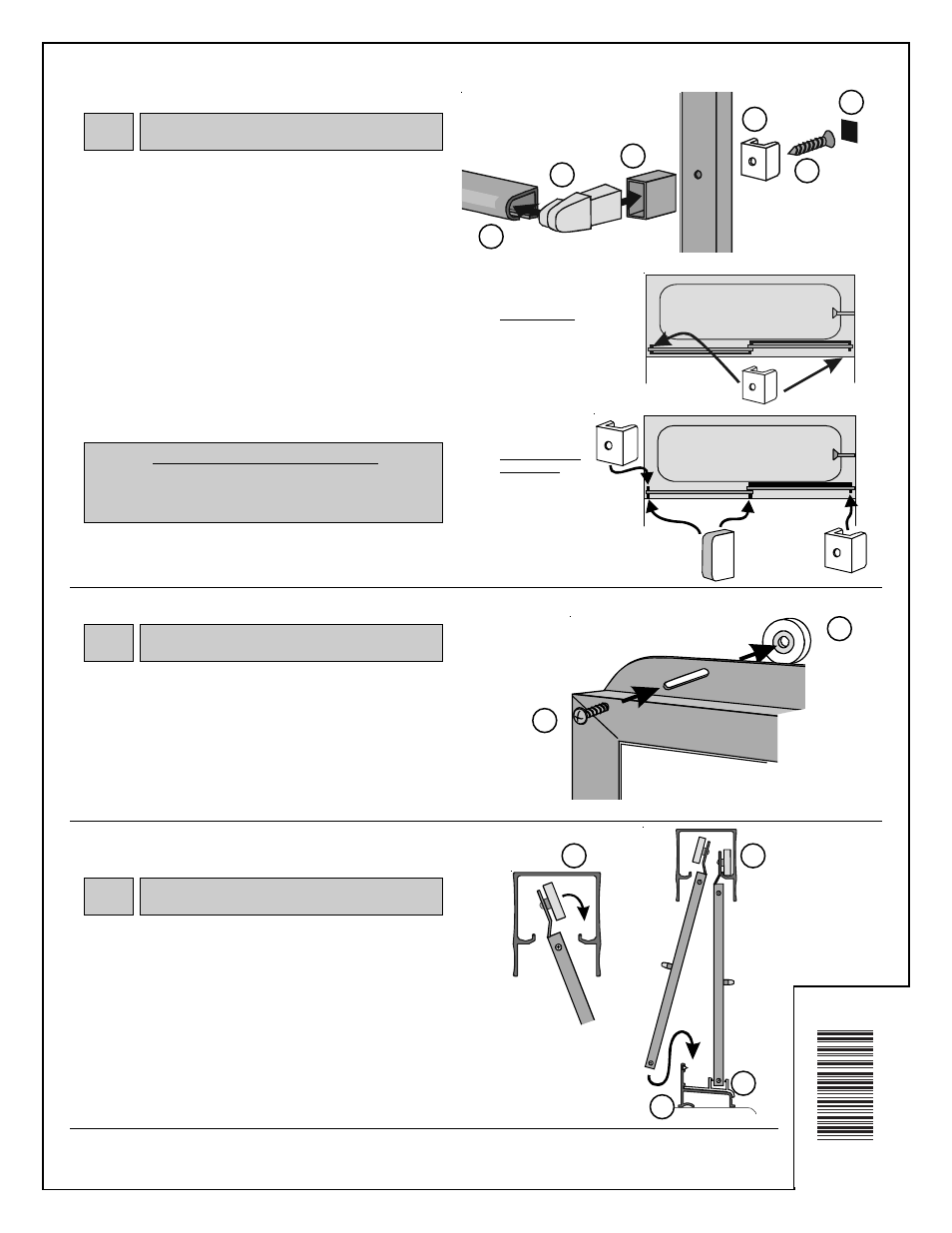

Lift inside door panel into header with towel bar facing
inside of bath. Seat rollers on roller track while guiding
bottom of door into sill guide. Repeat for outside door,
hanging panel with towel bar facing outside of bath.
Mount rollers (F) to top channel of doors using 8-32 x 3/8"
truss head screws (K). Rollers are to be mounted on
same side of doors as towel bars and at the midpoint of
slots.
Rollers may be positioned up or down in slot to adjust for
out of plumb situations.
8A x 1 1/4"
Flat Head
Screw
Towel Bar
Bracket
Pull/Stop
Towel Bar
Bracket
Sleeve
Pull/Stop
Slide sleeves from towel bar bracket kit (E) onto towel bar
brackets. Insert towel bar brackets (E) into each end of
towel bar (D).
Mount towel bar and pull/stop (E) to door panel using
8A x 1 1/4" flat head screw (E). Place pull/stop label in
recessed area of pull/stop, covering screw head. On
opposite end of towel bar, mount bracket to door panel
using 8A x 1" pan head screw. Repeat for remaining
panel.
Pull/Stop
Pull/Stop Pull Handle
Inside
Panel
Outside
Panel
Header
Inside
Panel
D
Towel Bar
K
8-32 x 3/8"
Truss Head
Screw
F
Roller
Seal unit by caulking along outside of enclosure where metal and bath meet, especially where sill and tub
meet. If desired, caulk inside enclosure where jambs meet walls.
C
Header
Sill A
Guide
G
OUTSIDE
OF
BATH
TOWEL BAR / PULL HANDLE UNITS
Towel bar is to be mounted on inside panel facing
inside of shower. Pull handles are to be mounted
on outside surface of the outside panel.
Note: Towel bar for outside panel faces outside of shower,
while towel bar for inside panel faces inside of shower. Pull/
stops should be mounted on edge of panel closest to jambs
as shown in illustration.
E
E
E
E
Pull
Stop
Label
E
Towel Bar Kit:
Towel Bar/ Pull
Handle Kit:
5 Towel Bar
(D)
6 Rollers
(F)
7 Hanging Door Panels
C
21R
1
