Page 4

21X1-G 10/08
Pull/Stop
Pull/Stop
Pull/Stop
Pull Handle

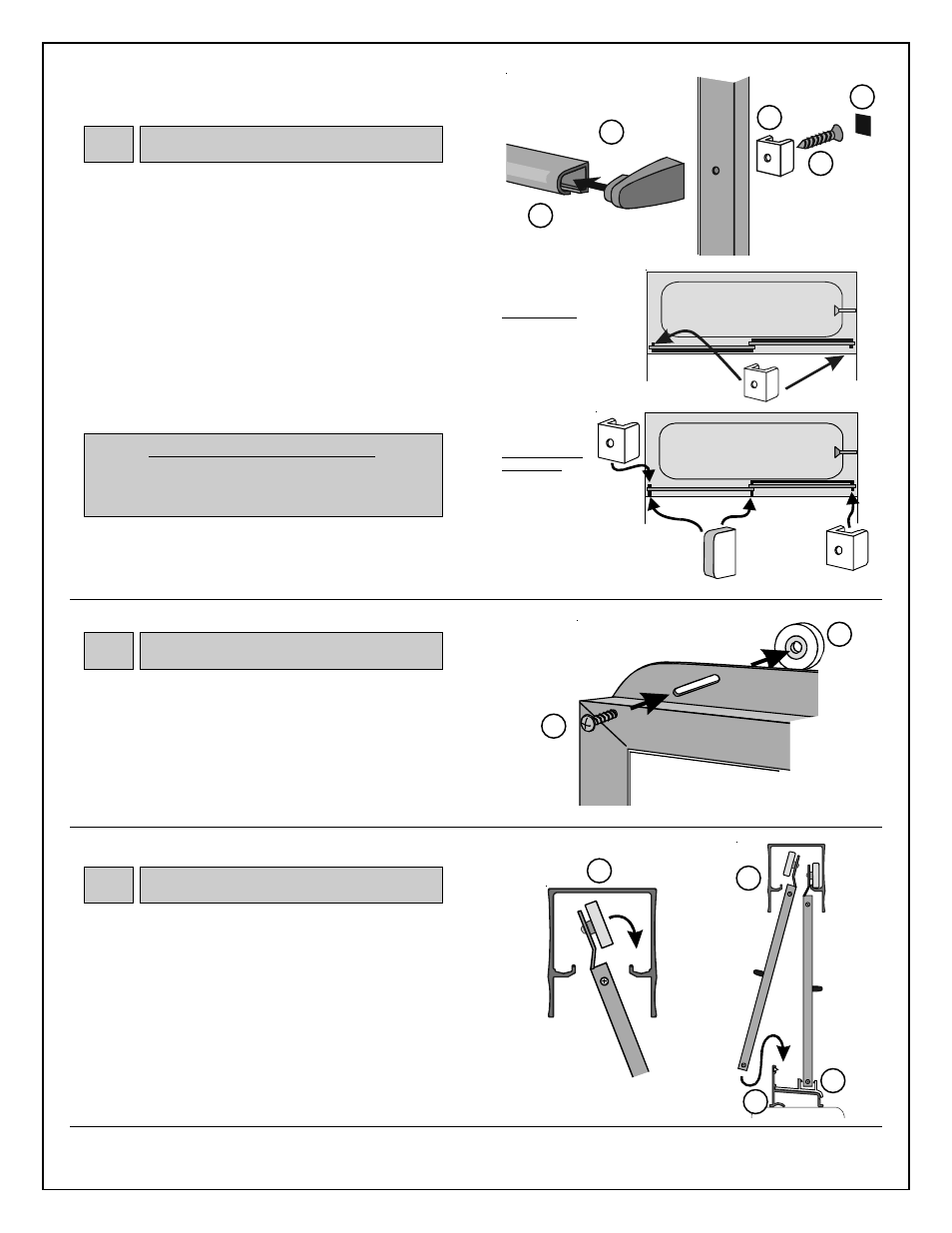

Towel Bar Kit:
Towel Bar/ Pull
Handle Kit:
Lift door panel into header with towel bar facing inside of
bath. Seat rollers on roller track while guiding bottom of
door into sill guide.
Repeat for remaining door, hanging panel with towel bar
facing outside of bath.
Adjust rollers up or down as needed in roller fin slots to
compensate for out-of-plump conditions, allowing
panels to hang straight.
Mount rollers (F) to top channel of doors using
8-32 x 3/8" truss head screws (K). Rollers are to be
mounted on same side of doors as towel bars and at
the midpoint of slots.
8A x 1 1/4"
Flat Head
Screw
Towel Bar
Bracket
Pull/Stop
Insert towel bar bracket (E) into each end of towel bar
(D). Mount towel bar and pull/stop (E) to door panel
using 8A x 1 1/4" flat head screw (E). Place pull/stop
label in recessed area of pull/stop, covering screw
head.
On opposite end of towel bar, mount bracket to door
panel using 8A x 1" pan head screw. Repeat for
remaining panel.
Inside
Panel
Outside
Panel
Header
Inside
Panel
D
Towel Bar
K
8-32 x 3/8"
Truss Head
Screw
F
Roller
Seal unit by caulking along outside of enclosure where metal and bath meet, especially where sill and tub meet. If desired,
caulk inside enclosure where jambs meet walls.
C
Header
C
Sill
Guide
G
OUTSIDE
OF BATH
TOWEL BAR / PULL HANDLE UNITS
Towel bar is to be mounted on inside panel facing
inside of shower. Pull handles are to be mounted
on outside surface of the outside panel.
Note: Towel bar for outside panel faces outside of
shower, while towel bar for inside panel faces inside of
shower. Pull/stops should be mounted on edge of panel
closest to jambs as shown in illustration.
E
E
Pull
Stop
Label
E
E
6
Rollers
(F)
7
Hanging Door Panels
A
5
Towel Bars
(D)
