Coral Industries 6000 Bypass with ATB Towel Bar - 26X1-G - Manual (Page 4)

26X1 1/99
5
7

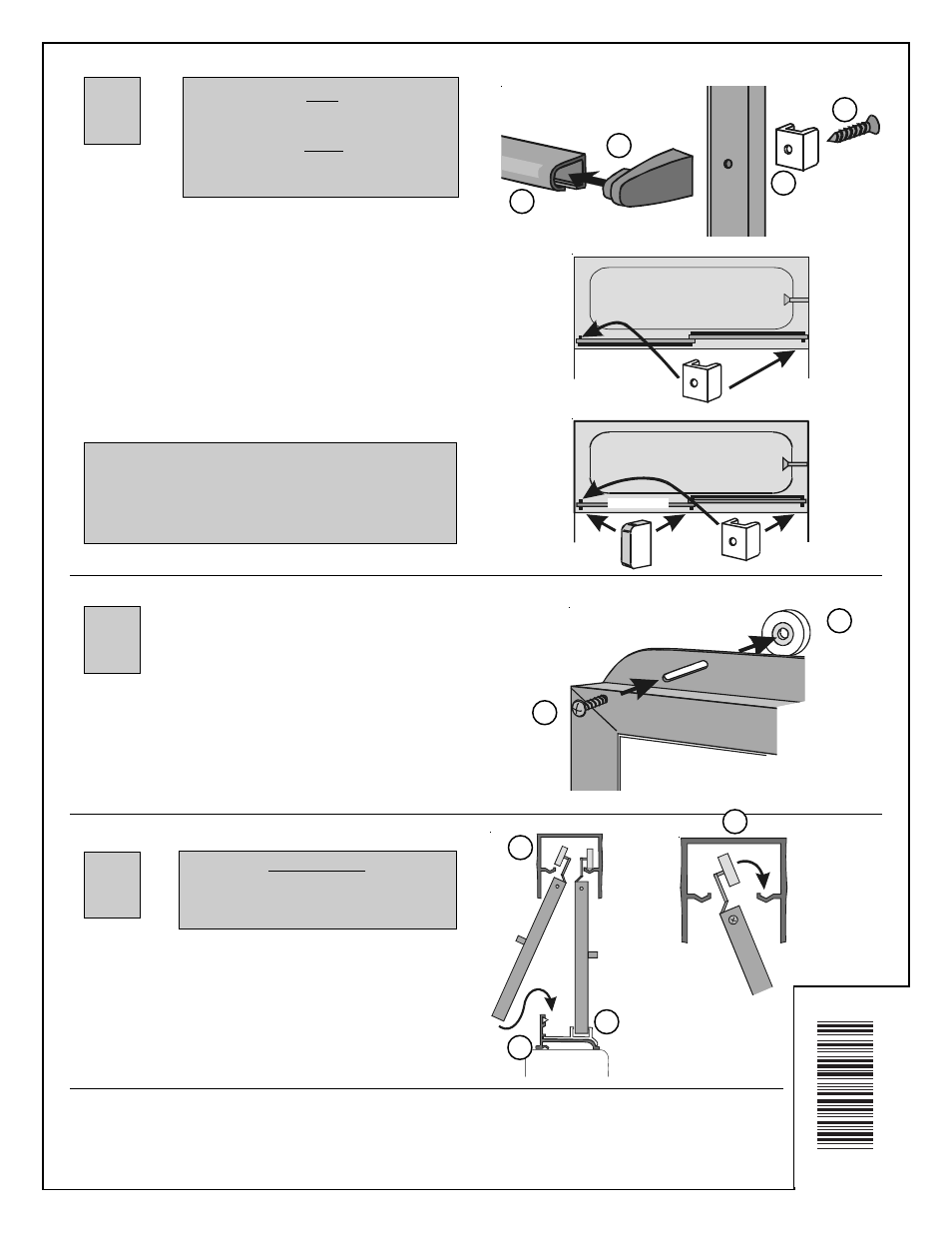

Lift inside door panel into header with towel bar facing inside
of bath. Seat rollers on roller track while guiding bottom of
door into sill guide. Repeat for outside door, hanging panel
with towel bar facing outside of bath.
Mount rollers (F) to top channel of doors using 8-32 x 3/8"
truss head screws (K). Rollers are to be mounted on same
side of doors as towel bars and at the midpoint of slots.
Rollers may be positioned up or down in slot to adjust for out
of plumb situations.
8A x 1 1/4"
Flat Head Screw
Towel Bar
Bracket
Pull/Stop
Pull/Stop
Insert towel bar bracket (E) into each end of towel bar
(D). Mount towel bar and pull/stop (E) to door panel using
8A x 1 1/4" flat head screw (E). On opposite end of towel
bar, mount bracket to door panel using 8A x 1" pan head
screw. Repeat for remaining panel.
On units with clear, painted glass,
the painted surface of glass faces
outside of shower.
On units with tinted, painted glass,
the painted surface of glass faces
inside of shower.
Pull/Stop Pull Handle
Mirror Panel
Inside
Panel
Outside
Panel
D
Towel Bar
MIRROR UNITS
Mirror panel should be hung as outside
panel with pull handles facing outside of
bath.
6
K
8-32 x 3/8"
Truss Head
Screw
F
Roller
Seal unit by caulking along outside of enclosure where metal
and bath meet, especially where sill and tub meet. If desired,
caulk inside enclosure where jambs meet walls.
Header
C
Sill
A
Guide
G
MIRROR UNITS
Mirror unit uses towel bar / pull handle kit (L). Towel
bar is to be mounted on inside panel facing inside of
shower. Pull handles are to be mounted on mirror
side of mirror (outside) panel.
Note: Towel bar for outside panel faces outside of shower,
while towel bar for inside panel faces inside of shower.
Pull/stops should be mounted on edge of panel closest to
jambs as shown in illustration.
E
E
E
26X
1
Header
Inside
Panel
C
INSIDE OF
BATH
