2PJ6-GP 3/06

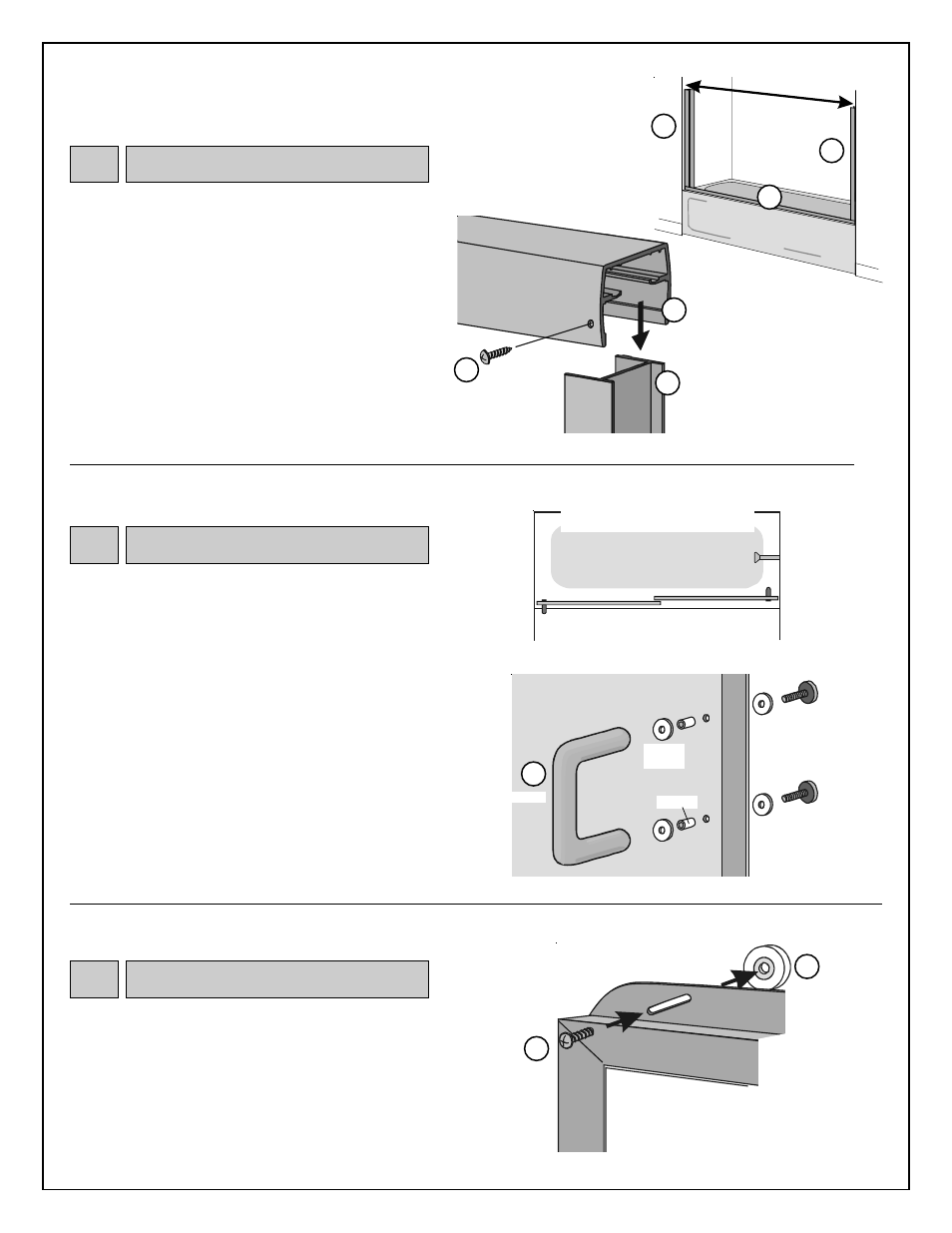

Measure from wall to wall (over the top of both jambs)
and cut header (C) to that measurement.
Lower header over jambs until seated squarely on both
jambs.
Attach header to jambs by drilling a 1/8" hole through
header into jambs on inside of tub near walls. Secure
using 8A x 3/8" truss head screws (I).
C
B
8A x 3/8"
Truss Head
Screw
Header
Jamb
I
Measure
Sill
A
Jamb
B
Jamb
B
INSIDE OF SHOWER
Pull handles from pull handle kit (K) are mounted onto
door panels through predrilled holes in glass. Pull
handle for outside panel faces outside of bath while
handle for inside panel faces inside of bath.
Pull handle kit comes with parts assembled in the order
they will be installed on glass. Disassemble parts.
Press bushings into holes in glass. Trim as needed so
that bushings are flush with surface of the glass.
Reassemble pull handle, plastic washers, and end cap
on door panel as shown. Allen wrench may be used to
aid in tightening by inserting into hole of end cap and
turning. Repeat for remaining door panel.
Pull handle for outside panel faces
outside of bath while handle for inside
panel faces inside of bath.
OUTSIDE OF BATH
K
Pull Handle
Plastic
Washer
Bushing
Plastic
Washer
End
Cap
Mount rollers (H) to top channel of doors using
8-32 x 3/8" truss head screws (M) provided. Rollers
are to be mounted on same side of doors as pull
handle, and at midpoint of slots.
Rollers may be positioned up or down in slots to adjust
for out of plumb situations.
Roller
8-32 x 3/8"
Truss Head
Screw
H
M
4 Header
(C)
6 Rollers
(H)
5 Pull Handles
(K)
