620 7/09

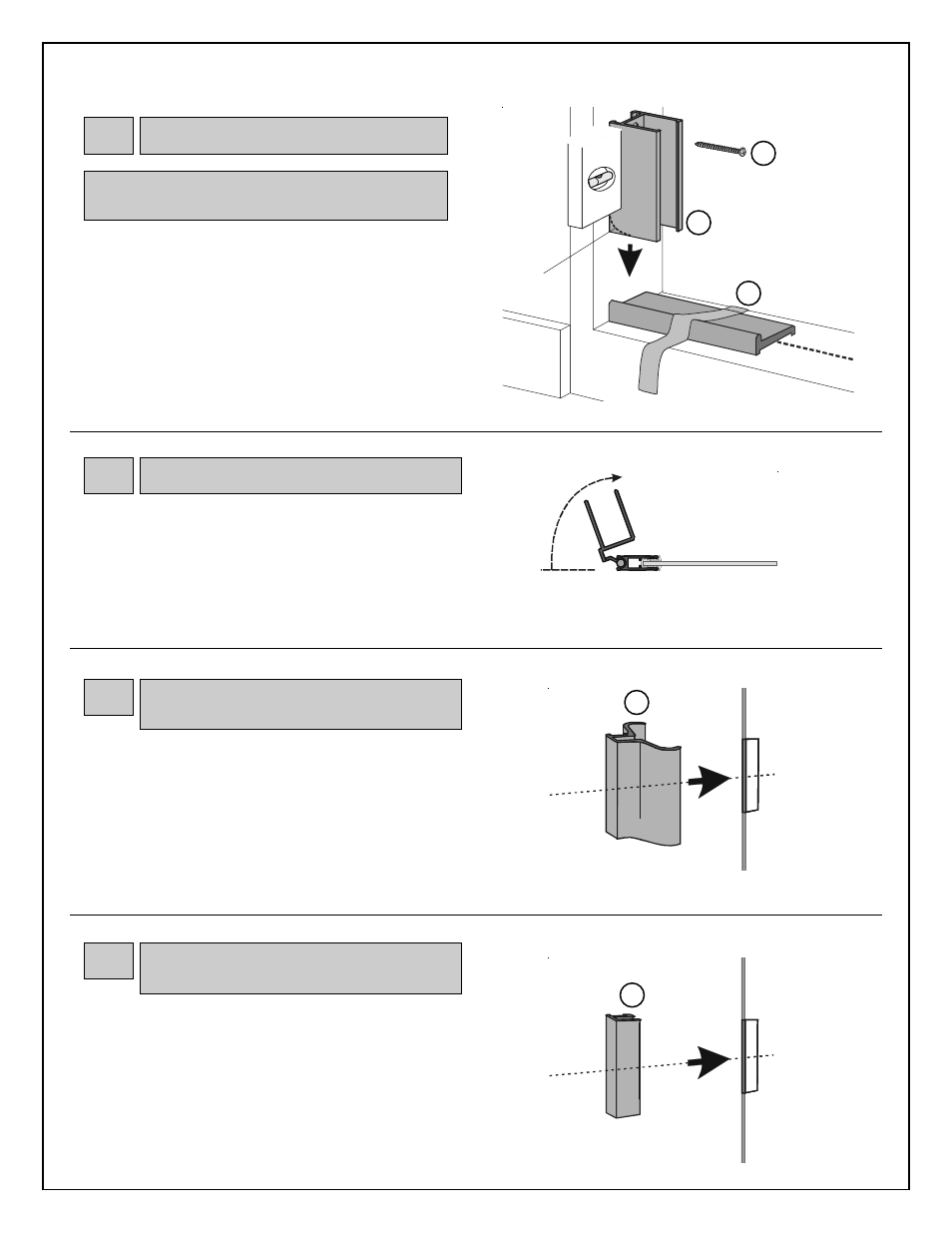

Place jambs (B) on sill with short legs against wall and
bottom of jambs resting on sill. If necessary, file sharp
corners on back of jambs to fit contour of your unit.
Align jambs vertically using a level. Mark wall through
prepunched holes. Remove jambs and drill where marked
using 1/8" drill bit.
Reposition jambs on wall and secure using 8A x 1 1/4" pan
head screws (L).
Level
Sill A
OUTSIDE OF SHOWER
Jamb B
Contour
as
needed
When anchors (H) are used holes should be drilled
using 3/16" drill bit.
8A x 1 1/4"
Pan Head Screw
L
3 Jambs
(B)
4a Magnetic Pull Handle Kit
(M)
Style Series
Mark center of glass on opening edge of door panel.
Wrap handle vinyl, from magnetic pull handle kit (M), over
edge of glass. Thinner glass may require the use of two pieces
of vinyl to insure a tight grip between handle and glass.
Hold metal slide for installation later. With a rubber mallet, tap
handle, with magnet attached, onto glass. Magnet should face
inside of shower.
M
Center
Magnet Holder
with Magnet
(Magnet faces
inside of
shower)
Handle
Vinyl
K
OUTSIDE
SURFACE OF
DOOR
Magnetic Pull
Handle
(Magnet faces
inside of shower)
4 Handle
Lay door panel, with hinge door stop attached, on a work table
covered with cardboard or carpet. Position so that hinge door
stop swings up as shown. This will be the outside surface of
your door panel (facing up). Adjust door on work table so that
the opening edge and handle holes extend past table edge.
Step 4a: Style Series. Step 4b: Freestyle Series.
Hinge Door Stop
(Swings toward
outside surface of
glass)
Outside surface of panel
4b Magnetic Catch Kit
(K)
Freestyle Series
Mark center of glass on opening edge of door panel.
Wrap handle vinyl, from magnetic catch kit (K), over edge of
glass. Thinner glass may require the use of two pieces of vinyl
to insure a tight grip between handle and glass.
Hold metal slide for installation later. With a rubber mallet, tap
magnet holder, with magnet attached, onto glass. Magnet
should face inside of shower.
Center
Handle
Vinyl
OUTSIDE
SURFACE OF
DOOR
