Coral Industries 7000 Swing Door - 640 - Manual (Page 3)

640 (70A) 7/09

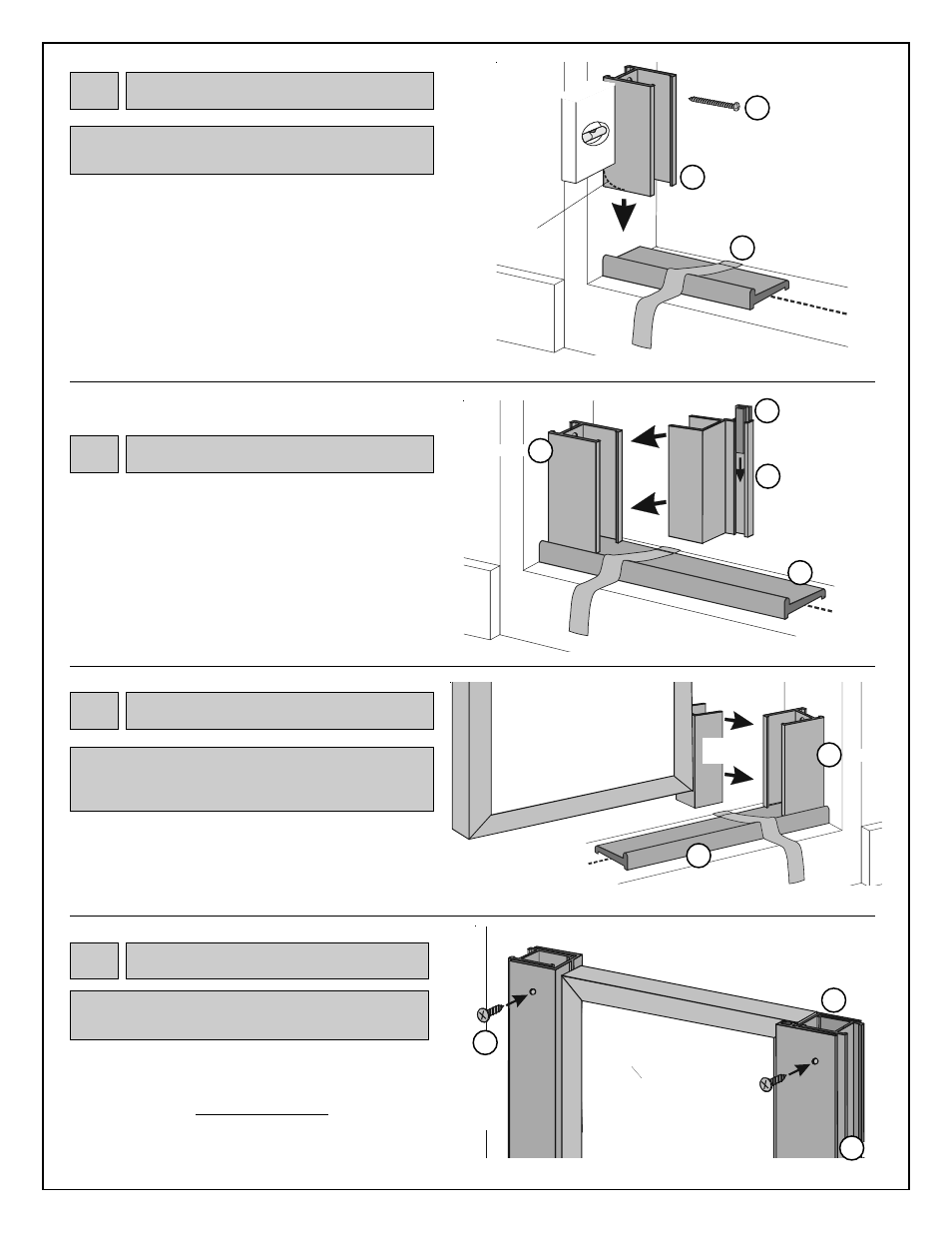

Place jambs (B) on sill with short legs against wall and
bottom of jambs resting on sill. If necessary, file sharp
corners on back of jambs to fit contour of your unit.
Align jambs vertically using a level. Mark wall through
prepunched holes. Remove jambs and drill where marked
using 1/8" drill bit.
Reposition jambs on wall and secure using 8A x 1 1/4" pan
head screws (I).
Level
Sill A
OUTSIDE OF SHOWER
Jamb B
Contour
as
needed
When anchors (K) are used holes should be drilled
using 3/16" drill bit.
8A x 1 1/4"
Pan Head Screw I
Slide magnetic strip (G) into slot of magnetic door stop
(C). Trim ends even with door stop using scissors.
On opening side of door, position magnetic door stop over
jamb with magnetic strip facing outside of shower. Bump sill
slightly toward outside of shower to accommodate width of
magnetic door stop leg fitting in between jamb and tall edge
of sill.
3 Jambs
(B)
4 Magnetic Door Stop
(C)
Sill A
OUTSIDE OF SHOWER
B
Magnetic
Strip G
Magnetic
Door
Stop C
Position hinge door stop, which is attached to door panel,
over jamb on opposite side from magnetic door stop. For
safety purposes, door should be installed to open out from
shower.
5 Hinge Door Stop
and
Door Panel
If magnetic strips do not seal tightly, reverse polarity by
removing strip from door stop and replacing it with the
previous top end to the bottom end.
Jamb
Adjust magnetic and hinge door stops until magnetic strip
aligns properly on door panel and there is an even reveal of
space at bottom of door. Once desired alignment of parts
has been achieved, from inside of shower, drill five evenly
spaced holes through hinge and magnetic door stops into
leg of jambs. Secure using 8A x 3/8" pan head screws (J).
When securing door stops to jambs, do not drill
through front side of jamb.
6 Securing Verticals
Sill
A
OUTSIDE OF SHOWER
B Jamb
Door Panel
INSIDE OF SHOWER
Hinge Door Stop (attached to door)
Magnetic
Door Stop
C
Door Panel
Jamb
B
8A x 3/8 "
Pan
Head
Screws
J
Hinge Door
Stop
