Select Whiteboard Height
You will need:
(Not to Scale)
Actual Size:
Whiteboard Assembly
x 1
M5x40mm
x 2
D
M5 Lock washer
x 2
E
D E
Choosing holes:
Early childhood and
primary teachers may
prefer lower height,
junior and intermediate
may prefer higher height.
Use nylon washer
between Whiteboard
Assembly and frame
5

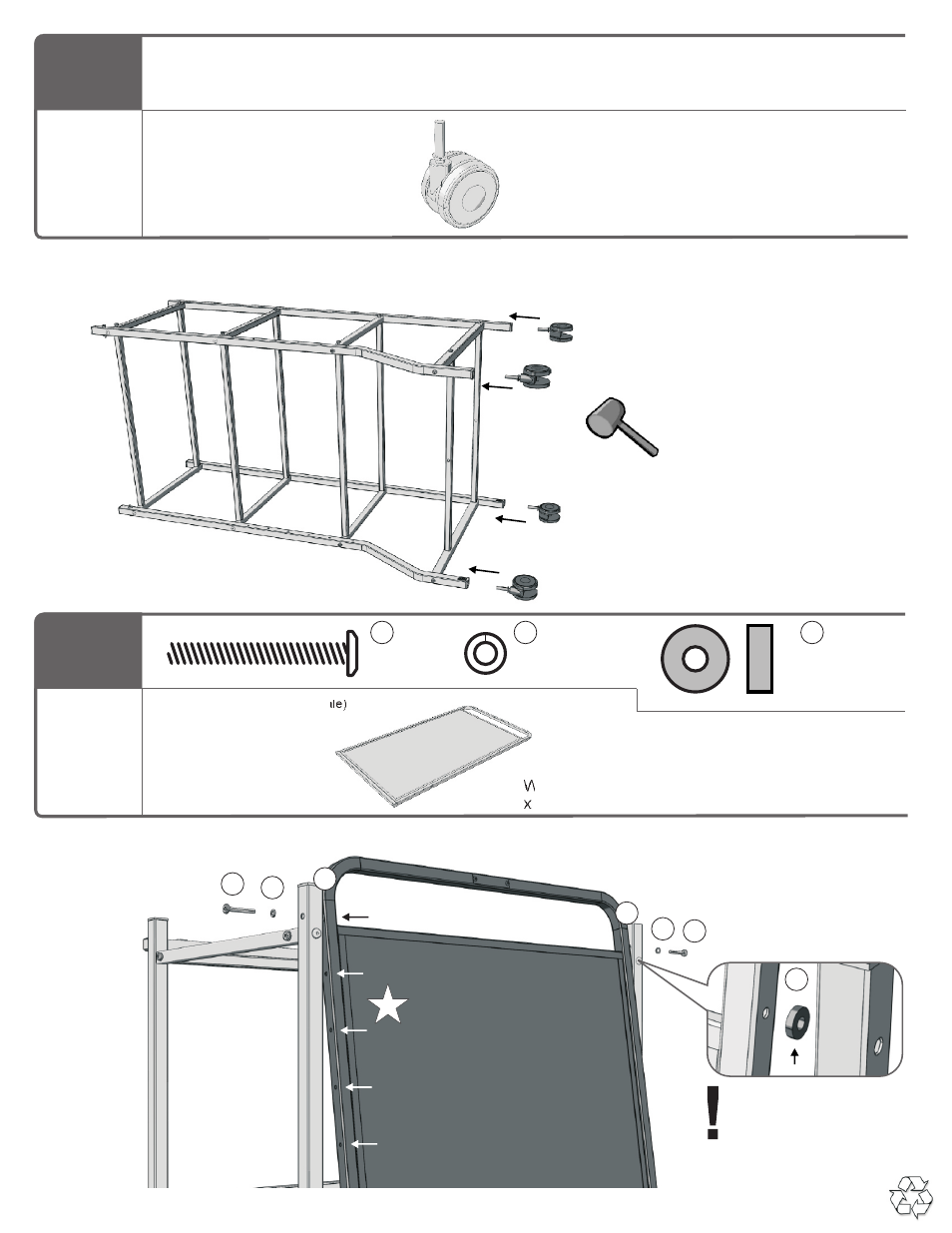

3” Twin Wheel Locking Caster
x 4
Install Casters
You will need:
(Not to Scale)
Actual Size:
Press Casters firmly
into frame. Casters will
click into place. If necessary
tap in using a rubber mallet.
Nylon Washer
x 2
G
Top View Side View
D E
G
G
G
