Sose1 one soft storage bag & six big book clips – Copernicus SOSE1 User Manual
Page 10

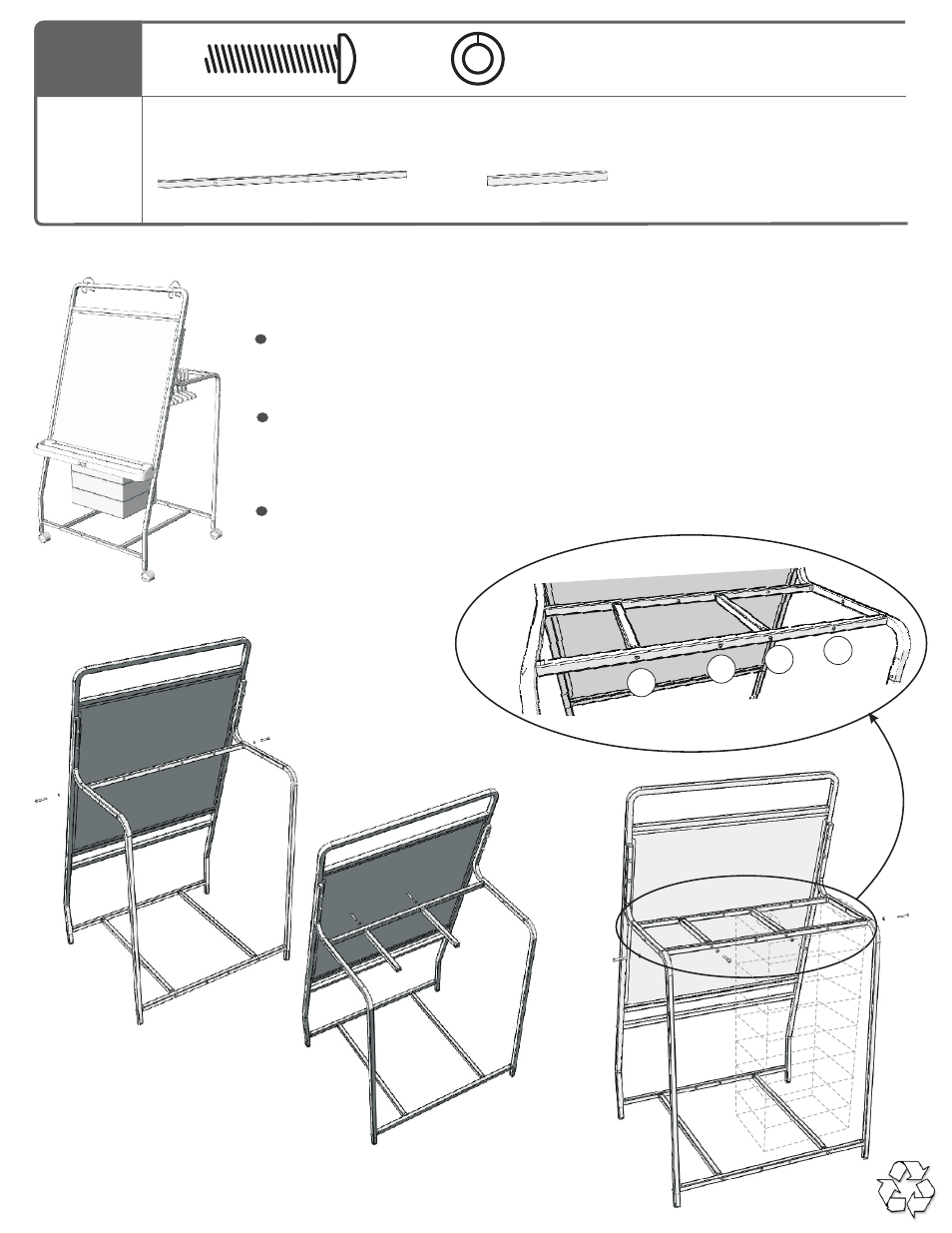

Align one Stretcher with the holes closest to the front of the unit
- Fasten with two Bolt A’s & Washer D’s
- Tighten Bolts
Align the two Hanger Bars with the holes in the Stretcher, as shown for this configuration (to
install bag on the opposite side use holes #2 and #4 instead)
- Fasten with two Bolt A’s & Washer D’s
- Tighten Bolts
Align a Stretcher with the holes in the Rear Frames & the two Hanger Bars
- Fasten with four Bolt A’s & Washer D’s
- Tighten Bolts
Stretcher (4 thru holes) x 2
Hanger Bars x 2
You will need:
(Not to Scale)
x 8
x 8
Actual Size:
A
D
5B
Install Stretchers & Hanger Bars
!
SOSE1 One Soft Storage Bag & Six Big Book Clips:
Use holes #1 and #3 as shown
!
#1
#2
#3
#4
SOSE - Version E - 1 June 2009 - Copernicus Educational Products Inc.
