Copernicus LW431 User Manual
Page 4
LW430 - Version A - 03 October 2014 - Copernicus Educational Products Inc.
DO NOT TIGHTEN ANY FASTENERS UNTIL PROMPTED!
Hand tighten only
2
Attach Stretchers
You will need:
(Not to Scale)
Actual Size:
A
14x
B
8x
C
14x
Straight
Stretcher
3x
Bent
Stretcher
2x
A
C
A
A
A
B
B
C
C
C
!
Important Note: Look for this Picture
Please note that every hole on the
frame has one side indented. The
orientation of the indent may be very
important at times and will be noted.
Please make sure to orient indent as
instructed to make sure hardware holds
properly.
!

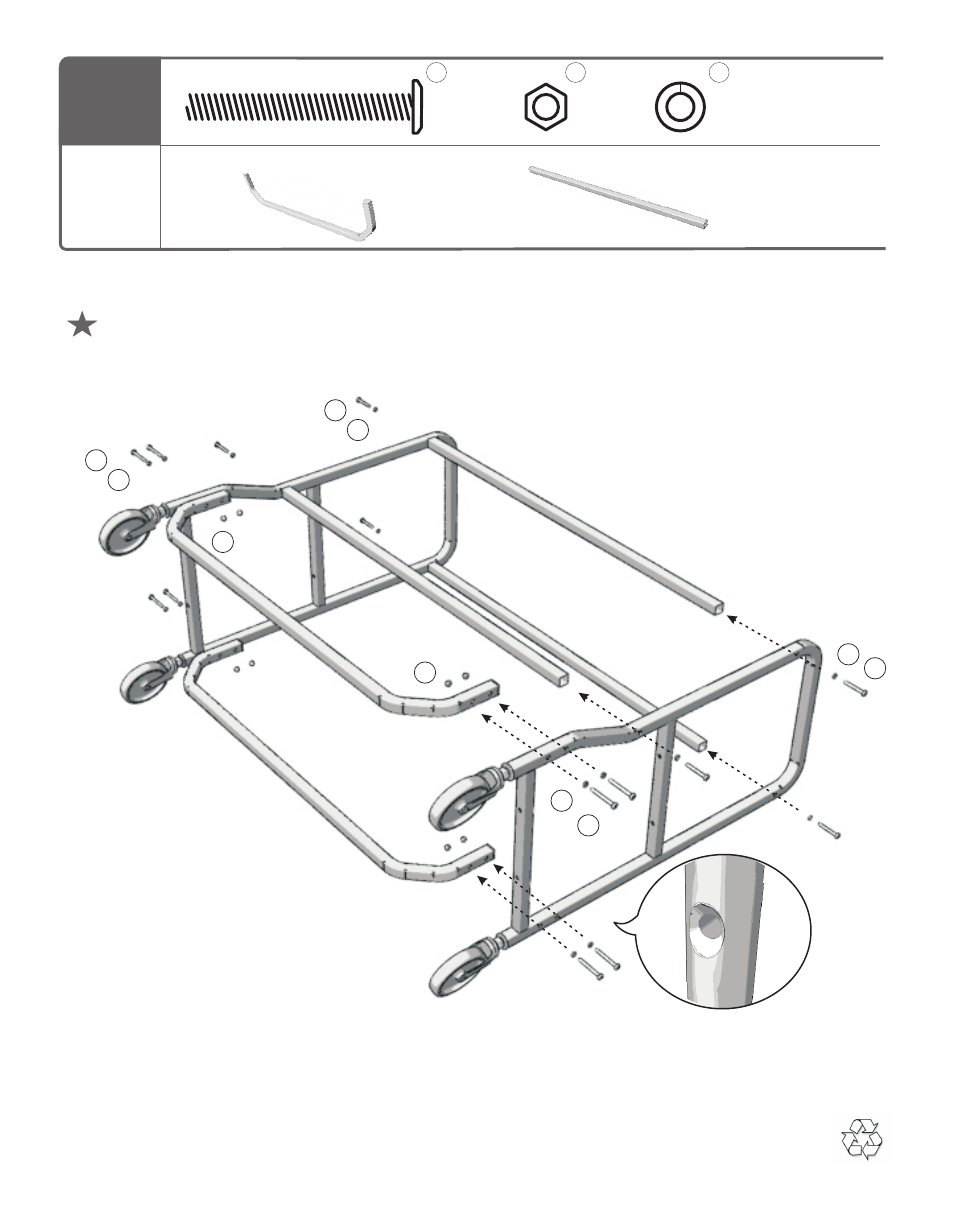

Assemble with end
frame hole indents
facing outside of unit
