BTHC2 - Version A - Released 3 September 2013 - Copernicus Educational Products Inc.

5

You will need:

(Not to Scale)

Actual Size:

6

You will need:

(Not to Scale)

Actual Size:

Chart Caddy Stretcher
1x


M6x35mm Bolt
x 2


M6 Lock Washer
x 2

Telescoping Arms (left & right)
1x

Knob
2x

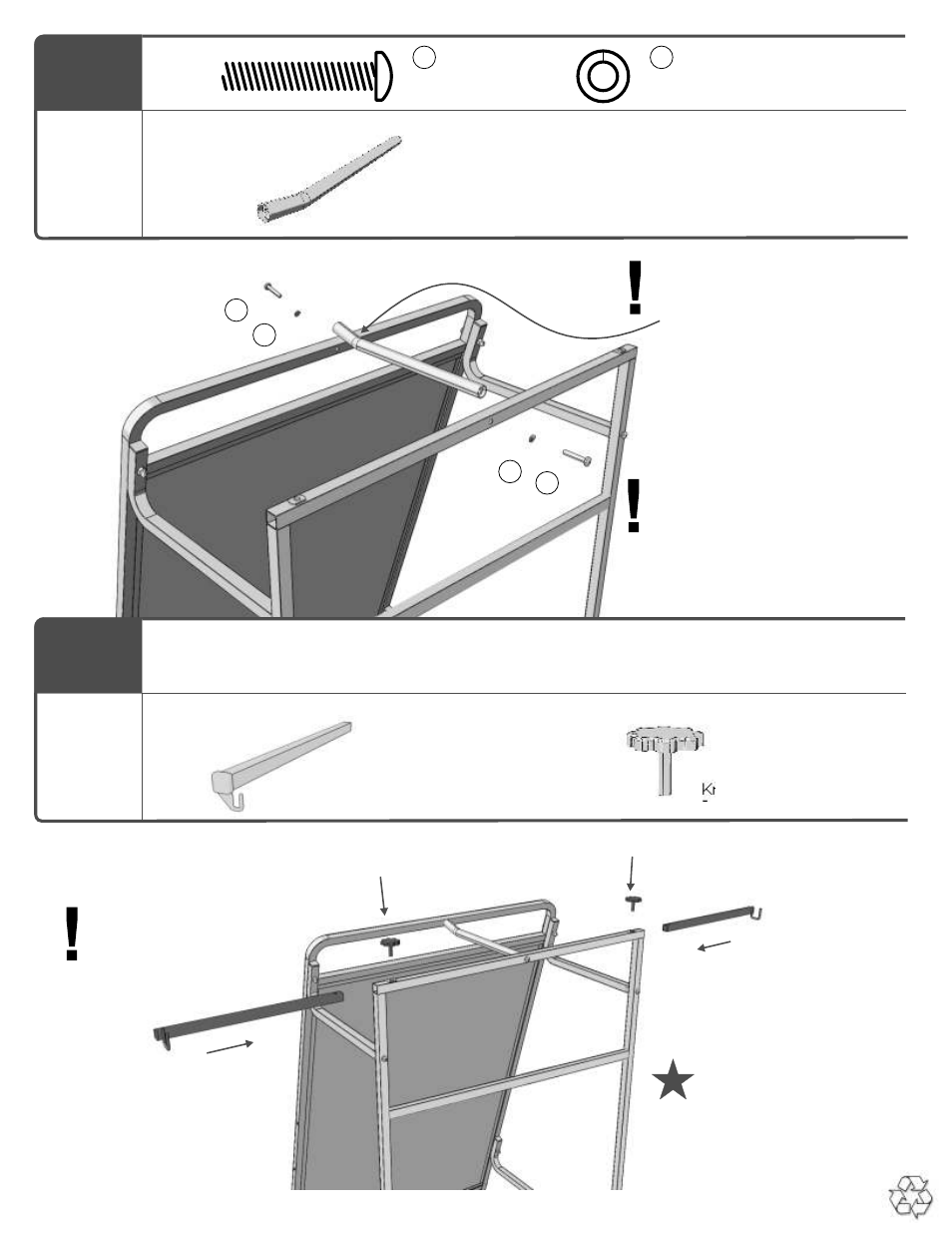

Install Telescoping Arms & Knobs

Note the hooks face
the back of unit

Tightening the knobs will
stop the arms from sliding.
Loosen knobs to adjust.

C

E

Install Chart Caddy Stretcher

E

C

C

E

Note the orientation of bend is
toward the front of unit

TIGHTEN ALL FASTENERS.
