Copernicus AUD6-DCS - Manual (Page 8)

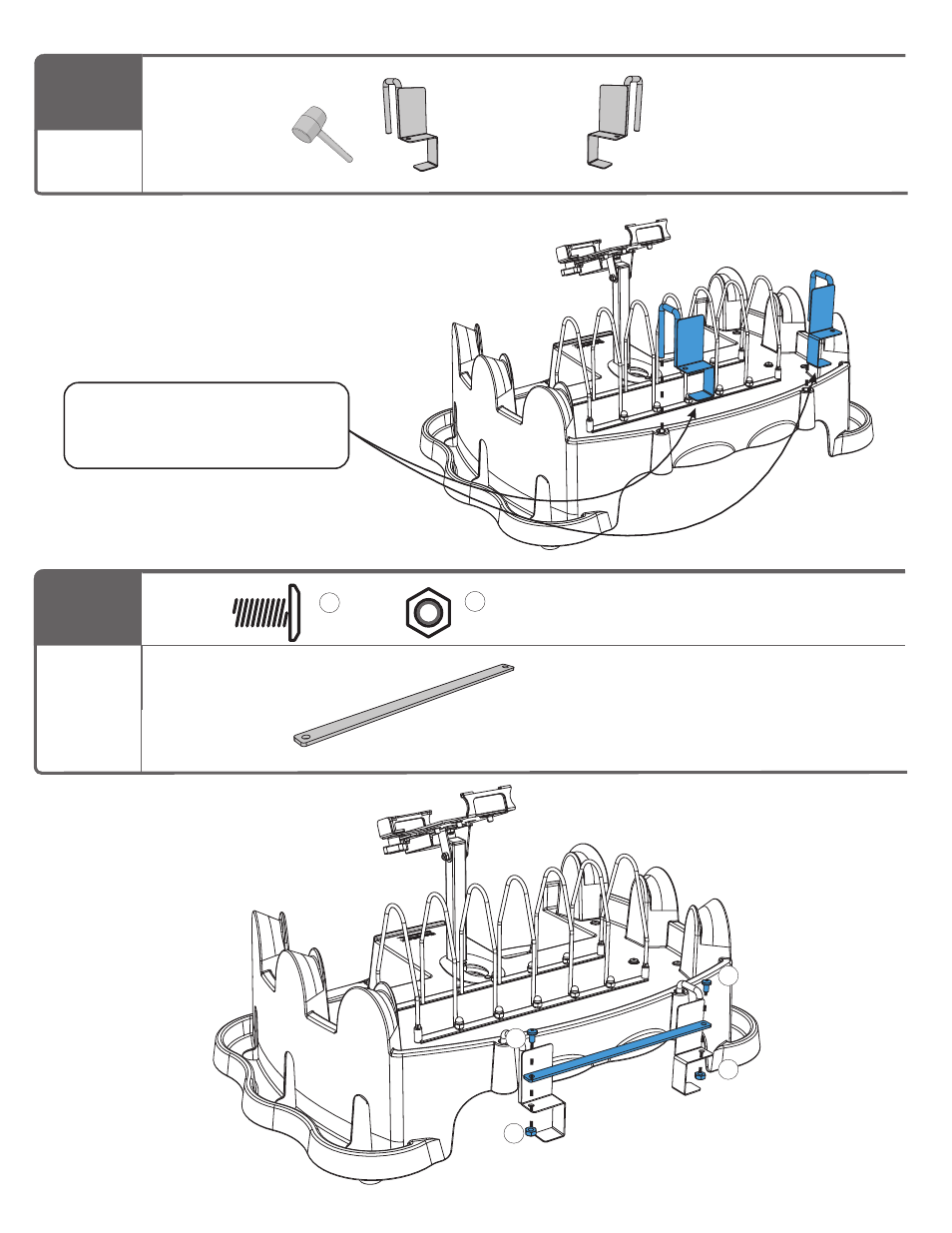

Install Powerbar Holder
Using a Rubber Mallet, insert Powerbar Brackets into
holes on Plastic Top.
x 2 x 2
Assemble Powerbar Holder
Attach Flat Bar to Powerbar Brackets.
Completely tighten hardware.
7
You will need:
(Not to Scale)
Actual Size:
Powerbar Bracket
Left
1x Powerbar Bracket
Right
1x
Powerbar Flat Bar
1x
I J
Note orientation of Powerbar
Brackets. Bottom hooks
should be facing outwards. !
9
6
You will need:
(Not to Scale)
I
I
J
J
Rubber Mallet x1
1. Use the iPad mini™ spacer, and set the bottom lip to its minimum position.
Using Dewey with iPad mini™
2. Then slide green piece out to secure iPad Mini™.
Slide the spacer into
the provided slot
Loosen the knob to
slide the bottom lip
into position and then
tighten
1. 2. 3.
1. There is no need for the iPad mini™ spacer, set up the bottom lip to its maximum position.
Using Dewey with 10” iPad®
2. Then slide green piece out to secure iPad®.
1. 2. 3.
Store the spacer under
Dewey’s top mechanism.
Note: To reposition the spacer,
push up, then slide out.
Loosen the knob to
slide the bottom lip
out and then tighten
