5

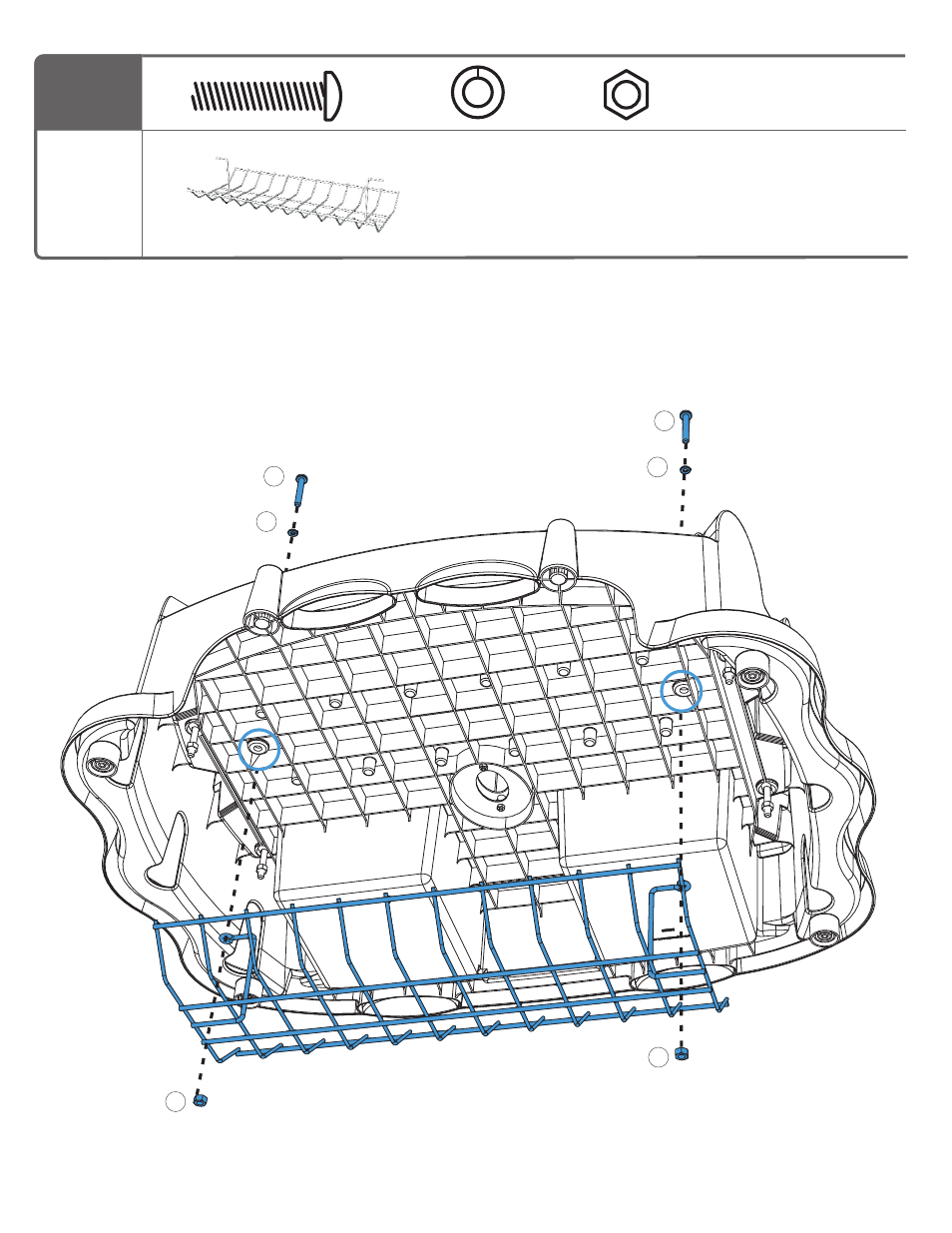

Install Wire Management Rack
Align the Wire Management Rack with the holes shown on the Plastic Top.
Tighten bolts.
Wire Management Rack x 1
You will need:
(Not to Scale)
x 2 x 2
Actual Size:
A B
x 2
C
A
B
C
A
B
C
8
1. Use the iPad mini™ spacer, and set the bottom lip to its minimum position.
Using Dewey with iPad mini™
2. Then slide green piece out to secure iPad Mini™.
Slide the spacer into
the provided slot
Loosen the knob to
slide the bottom lip
into position and then
tighten
1. 2. 3.
1. There is no need for the iPad mini™ spacer, set up the bottom lip to its maximum position.
Using Dewey with 10” iPad®
2. Then slide green piece out to secure iPad®.
1. 2. 3.
Store the spacer under
Dewey’s top mechanism.
Note: To reposition the spacer,
push up, then slide out.
Loosen the knob to
slide the bottom lip
out and then tighten
