Mounting Hardware

-

All mounting hardware is packed in a bag inside the main carton.

There are two brackets used to mount the WingMan™ to the vehicle. These are discussed in detail later.

FIGURE 1

Step 2 Insert the two 5/16-18 x 1"lg sheet metal screws into the Upper WingMan mounting brackets (see figure 2)
Note: 2005 models of the Crown Vic may require the use of two 3/8 x 1"lg sheet metal screws
(supplied in the parts bag) instead of the two 5/16-18 x 1"lg self tapping screws

FIGURE

2

Installation Instructions-

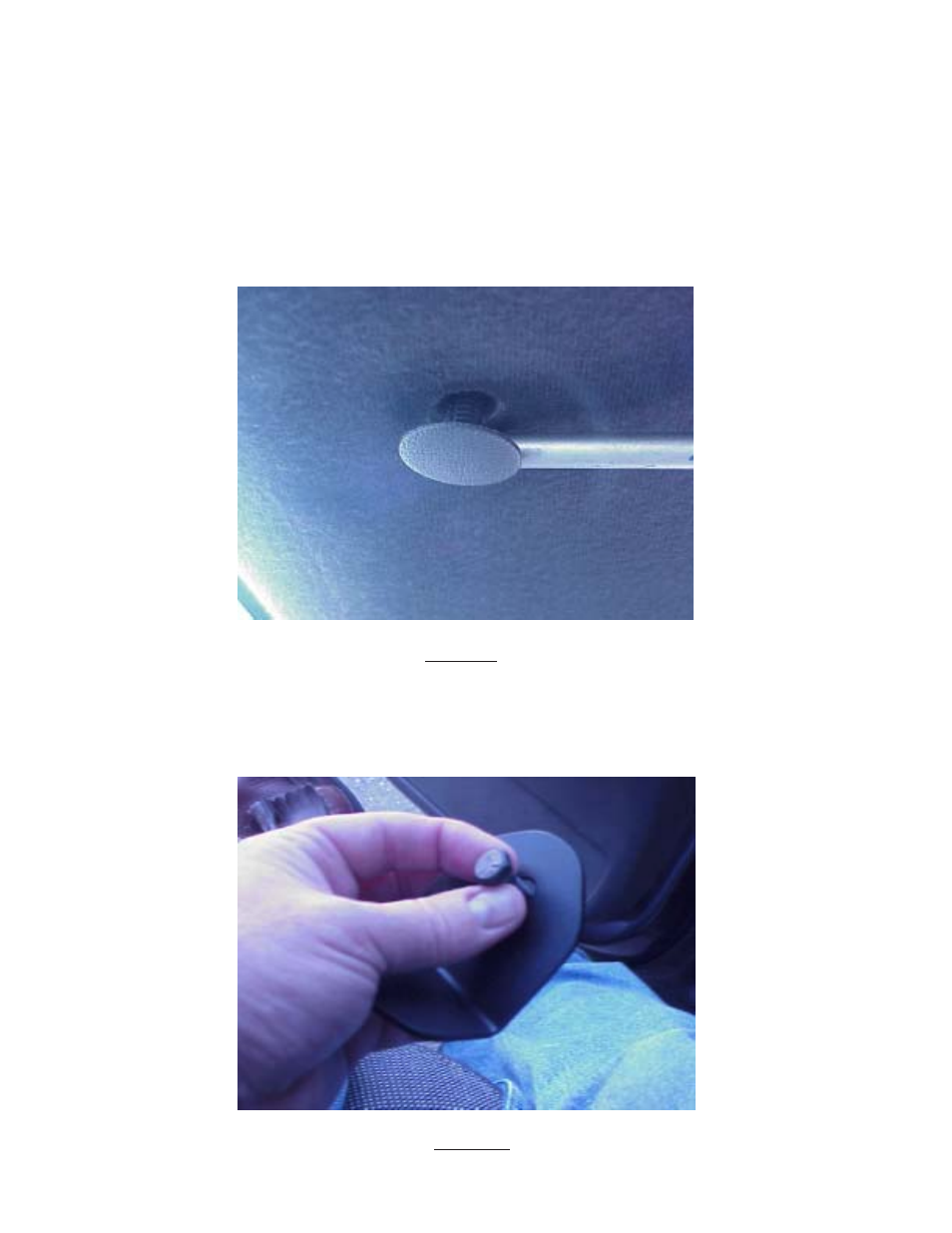

Step 1 Remove the two plastic Headliner retention plugs in the center rear part of the headliner by prying out
with a wide flat bladed screwdriver (see figure 1).
Step 1 Cut out the paper template sheets, align the two halves of the template and tape the template
together(see figure 1)
