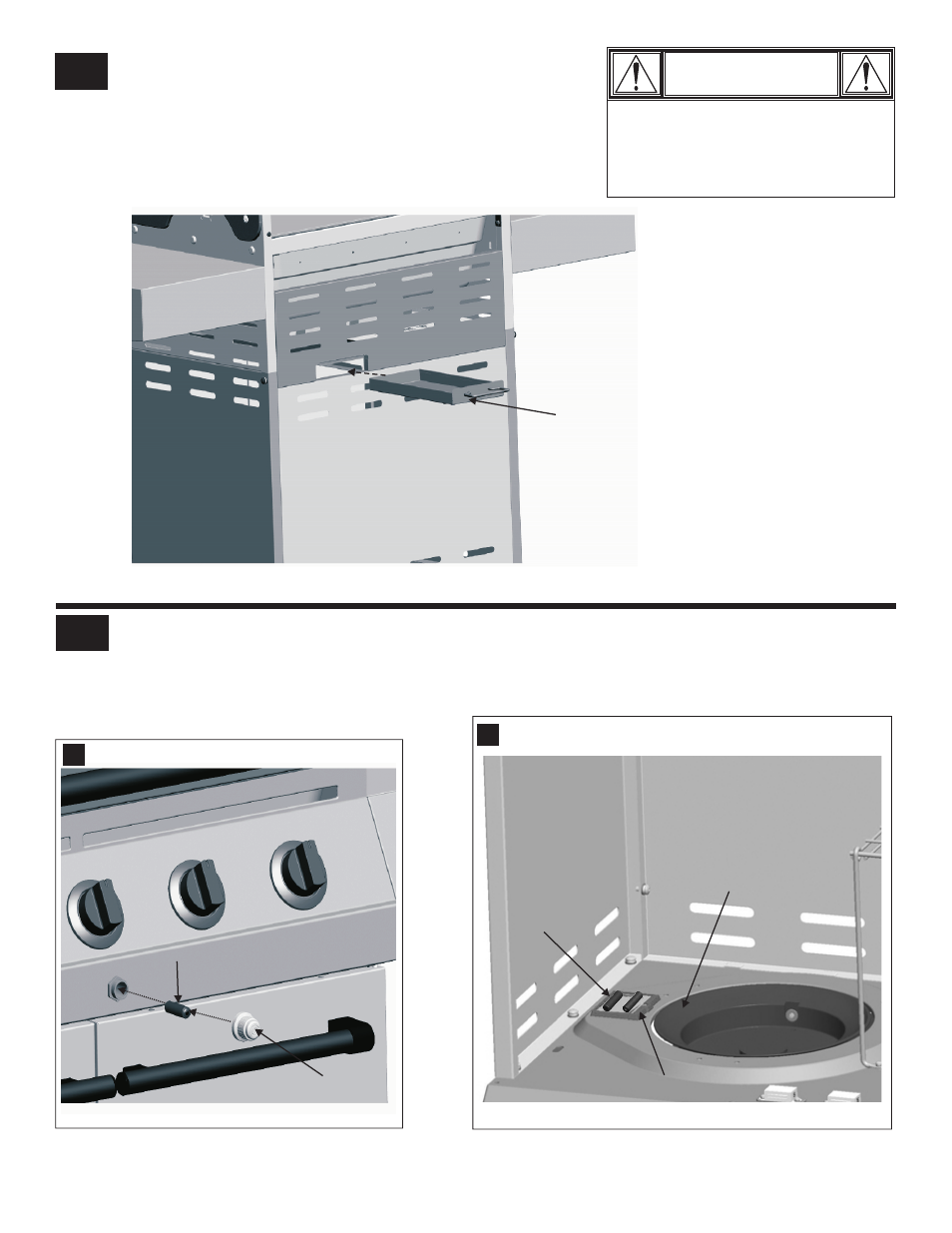

463271108 • 23
20
On back of grill, slide grease tray into opening in upper back
panel.
Grease tray
CAUTION
Failure to install grease tray will
cause hot grease to drip from bottom
of grill with risk of fire or property
damage.
21
Unscrew
electronic ignition button on front of control panel. Insert one AA battery into ignitor, negative (—) end first.
Replace button show (
A).
Open cover of the
battery box of the tank gauge, insert two AA batteries into battery box show (B).Make sure
positioned them in the right directions.
AA Battery
Electronic Ignition Button
+
-
A
B
+
-
+
-
AA Battery
Battery Box
Tank Gauge
