Page 19

463271108 • 19

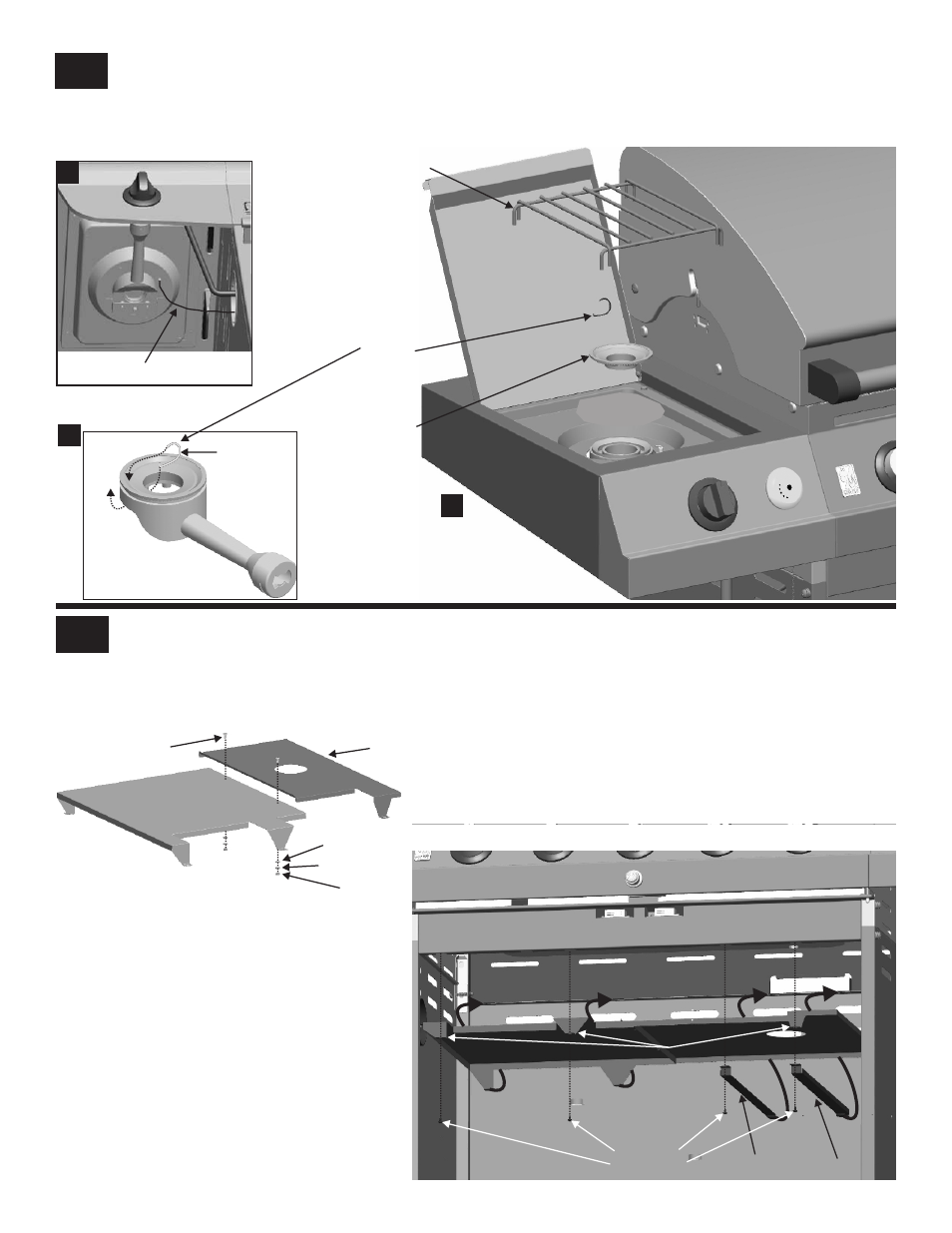

Under sideburner shelf, attach sideburner ignitor wire to electrode

(A).

Place burner cap onto sideburner

(B). Attach sideburner cap clip (C). Place sideburner cooking grate onto sideburner shelf,

aligning grate legs with holes in shelf.

Burner cap

Sideburner cooking grate

Sideburner Ignitor Wire

First, attach tank heat shield and shield extension together with two

#8-32x3/8” screws, 4mm flat washers, 4mm lock

washers and

#8-32 hex nuts. Inside of cart, insert rear shield tabs into two left slots between upper and lower back panels.

Attach left and center front shield tabs under front brace with

#8x3/8” self-tapping screws. Insert left and right grease tray

rails into slots beneath grease tray opening in upper back panel. Attach left rail to brace, with a

#8x3/8” self-tapping screw.

Attach right rail and right front shield extension tab together under front brace with a

#8x3/8” self-tapping screw.

Some components not shown for

illustration purposes.

Tank heat shield

Tank heat shield extension

#8-32x3/8”

Screw

#8-32 Hex nut

4mm Lock washer

4mm Flat washer

Sideburner

cap clip

Front of shield - three tabs.

Grease tray opening

Left grease

tray rail

Right grease

tray rail

#8x3/8” self-

tapping screw

Front brace

Sideburner

cap clip
