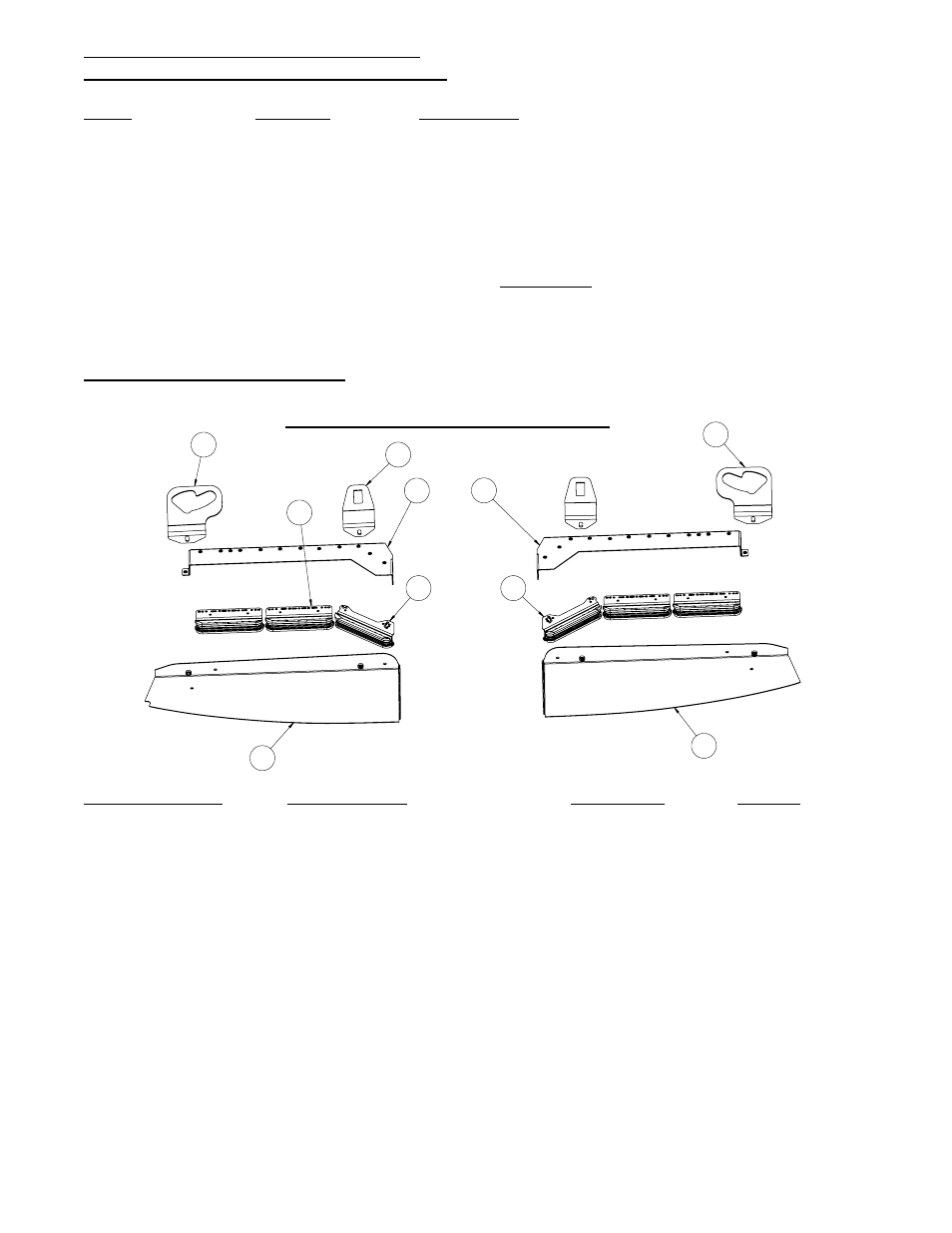

Parts List - Multi Color SuperVisor-MC
Reference Number Part Description
Part Number Quantity
1 Outer Panel - Driver Side T16287 1
2 Outer Panel -Passenger Side T16286 1
3 Chassis-Passenger Side W Tab Trimmed Off T16288 1
4 Chassis-Driver Side W Tab Trimmed Off T16289 1
5 Passenger Side Outer Mounting Bracket T16291 1
6
Inner Mounting Bracket
T16290 2
7 Driver Side Outer Mounting Bracket T16292 1
8 Torus Multi Color Forward Facing Lt Head Module
Contact Code 3, Inc for P/N 4
9 Torus Multi Color Passenger Intersection Lt Head Module Contact Code 3, Inc for P/N 1
10 Torus Multi Color Driver Intersection Lt Head Module Contact Code 3, Inc for P/N 1
Cruise is configurable to any symetric setting.
TD Steady is configurable to any symetric setting.
Cruise TD Steady Scene Steady
2 Outter Secondary Steady 2 Inner Secondary All 6 Secondary
2 Outter Secondary Flicker 2 Middle Secondary
4 Outter Secondary Steady 2 Outer Secondary
4 Outter Secondary Flicker 4 Inner/Middle Secondary
6 Outter Secondary Steady 4 Outer/Middle Secondary
6 Outter Secondary Flicker 4 Inner/Outer Secondary
Cruise is lowest priority and will not work when any other feature is enabled. Different combinations of
lights can be used as Cruise by tapping the Sequence wire to +12V while only the Cruise is turned on.
TD Steady will work with or without Level 1, 2, or 3 lights engaged. Different combinations of lights can be
used as the TD by tapping the Sequence wire to +12V while only the TD Steady is turned on.
Scene Steady overrides all other functions.
