Code 3 MC SuperVisor Caprice - Manual (Page 5)

5

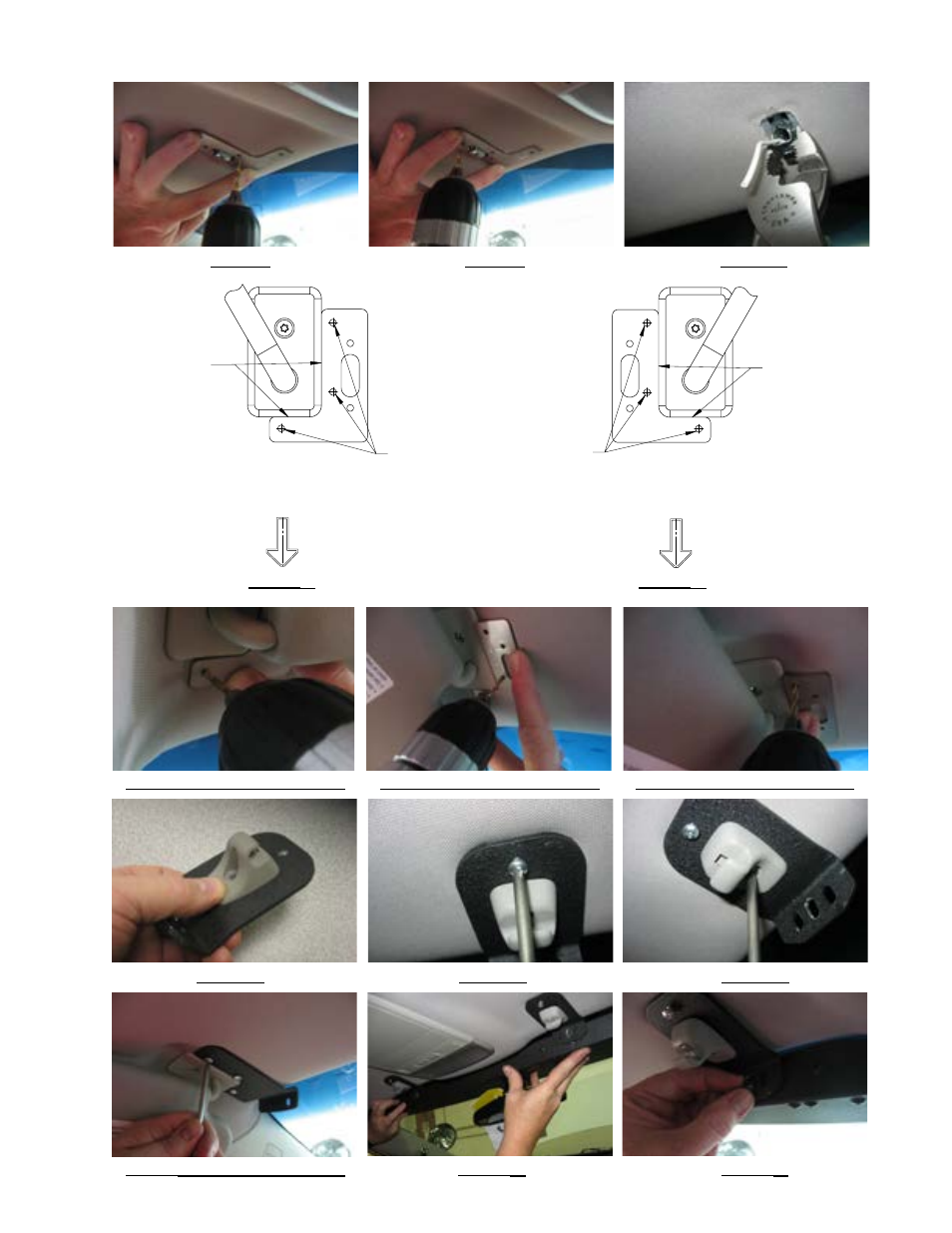

FIgURE 8 FIgURE 9 FIgURE 10
FIgURE 11 FIgURE 12
DRILL HOLES AT
THESE LOCATIONS
THE SUPERVISOR'S
DRILLING TEMPLATE
MUST BE HELD TIGHT
AGAINST THE EDGES
OF THE VEHICLE'S
PLASTIC VISOR PIVOT
BRACKET
DRIVERS SIDE
FRONT
OF VEHICLE
DRILL HOLES AT
THESE LOCATIONS
THE SUPERVISOR'S
DRILLING TEMPLATE
MUST BE HELD TIGHT
AGAINST THE EDGES
OF THE VEHICLE'S
PLASTIC VISOR PIVOT
BRACKET
PASSENGER SIDE
FRONT
OF VEHICLE
Installation Instructions Cont.
FIgURE 13-DRIVER SIDE SHOWN FIgURE 14-DRIVER SIDE SHOWN FIgURE 15-DRIVER SIDE SHOWN
FIgURE 16 FIgURE 17 FIgURE 18
FIgURE 19-DRIVER SIDE SHOWN FIgURE 20 FIgURE 21
