Maintenance
Lens Removal
First, remove the speaker cover by removing the four (4) hex head screws from the top of the
speaker cover. Next, remove the two (2) hex head screws on the top of the lens, followed by the two
(2) hex head screws on the outboard side of the lens. The lens can now be lifted off. If you have an all light
center section, the four (4) hex head screws holding the center lens to the pan have to be removed first,
then proceed with the lens screws.
Lamp Replacement

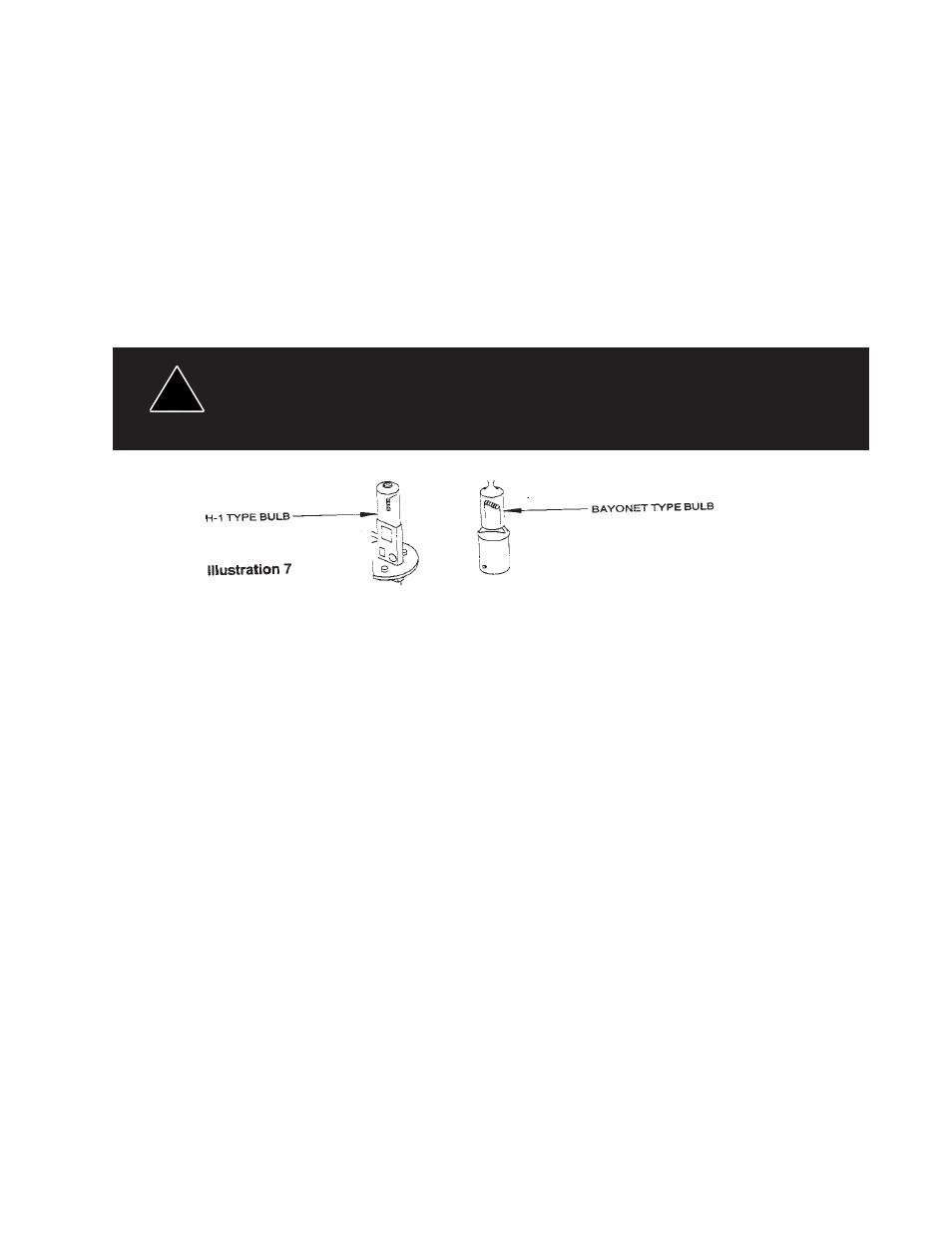

Remove the lens as outlined above. Next, inspect the bulb and compare to Illustration 7 to determine
bulb type. It may be necessary to remove any rotating or cylindrical filters to make access easier.
H-1: First, grasp bulb at base and turn until retaining clip is accessible. Using a blade screwdriver,
remove the retaining clip and pull bulb straight up. Grasp the power lead with long nose pliers and remove
the bulb. Replace with new bulb, insuring that the power lead is fully inserted into the bulb. Insert into the
rotator and ensure the retaining clip is fully inserted.
S-795 (Bayonet Style): Push down and turn to remove bulb. Install new bulb the same way.
General
Do not grease this unit. It is constructed with a permanently lubricated drive system which requires no
maintenance and can gum up if subjected to lubricants.
Lens Cleaning
Use plain water and a soft cloth, or Code 3 ® Lens polish and a very soft paper towel or facial tissue.
Because plastic scratches easily, cleaning is recommended only when necessary (about every six
months). Do not subject the lenses to car washes that use brushes, as these will scratch the lenses.
Frame Cleaning
To restore the aluminum to its original shine, run steel wool or an abrasive scrub pad along the length of
the frame, taking care not to scratch the lenses.
Lamps are extremely hot! Allow to cool completely before attempting to remove. Gloves
and eye protection should be worn when handling halogen lamps as they are pressurized
and accidental breakage can result in flying glass.
WARNING!
!
