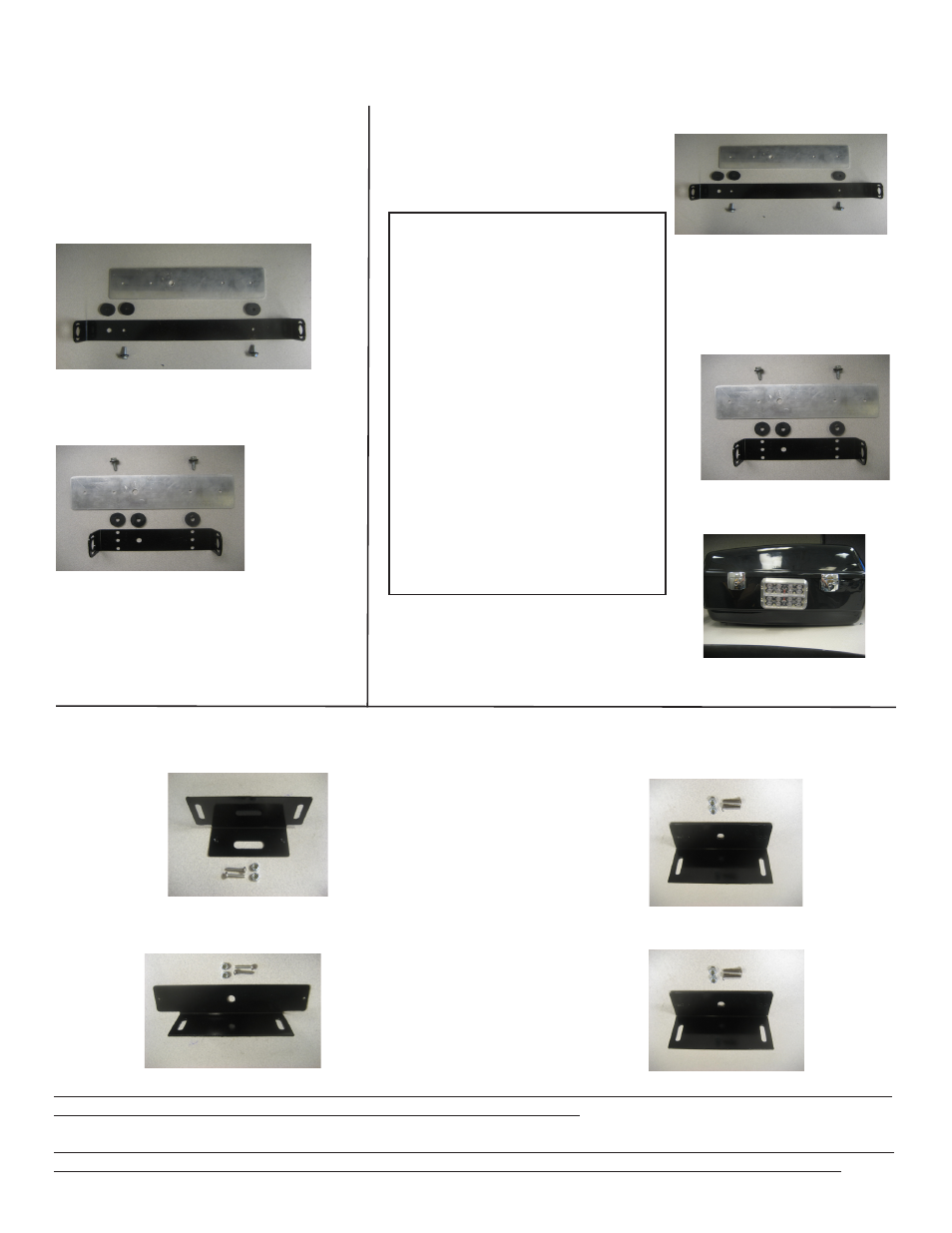

Radio box lighting options
ON BOX SUPPORt RAILS:
1. Xt3 light head (mounted with led down) (mounted with led up)
hD6103 2. optix 3up light head
hD603
3. optix 6up light head (mounted with led up) (mounted with led up)
hD606 4. leD-X light head
hD603
REAR OF BOX: SIDE OF BOX:
1. Xt304 light head assembly
hD1104 Xt302 & Xt304 mountIngs:
1. aluminum backing plate is 1. Xt304 light head assy.
installed on the inside of the radio box. hD1104
2. black rubber grommets are between
the u-shaped mounting bracket and the
outside of the radio box.
3. two rubber grommets are used on
mounting bolt locations, one is used for
power cord insertion point.
4. Power cord insertion point is off edge of
backing plate on Xt304 light installation.
5. When installing Xt302 light head, the
power cord is installed through the backing
plate hole provided.
6. mounting bolts are installed from the 2. tX302 light head assy.
outside on both light assembly installations hD1102
and self- thread into the aluminum backing
plates provided.
2. Xt302 light head assembly
hD1102 3. leD-X Dual stack light head
lXeX2f-bb or lXeX2f-RR or lXeX2f-bR
BOX SUPPORT BRACKETS FOR OPTIX LIGHT HEAD APPLICATIONS MUST BE ADJUSTED INBOARD UPON INSTALLATION
SO LIGHT HEAD DOES NOT INTERFERE WITH SIDE SADDLE BAG OPENING.
DEPENDING ON RADIO BOX SELECTED, USE OF OPTIX LIGHT HEAD BOX SUPPORT LIGHTS MAY REQUIRE THE BOX TO
BE RAISED USING SPACERS , XT3 LIGHT HEAD APPLICATIONS CAN BE MADE WITHOUT SUCH INTERFE\RENCES.
