Par 36 (7) led light head
1. Install the wiring terminations provided within the leD
assembly.
2. Place retainer ring against back of LED housing with flat
notch facing down to match up with clamshell on trim ring
3. Place trim ring over front of leD light and fully seat
against flange of LED assembly.
4. Rotate leD assembly so that toP indicated on leD lens
is actually at the 12:00 o’clock position on the bike,
5. Place the leD housing, trim ring and retainer onto light
housing of bike.
6. slide trim ring over retainer and into groove on light
housing.
7. tighten clamshell screw at bottom of leD light housing.
Supervisor light bar
1. Remove two outboard windshield screws from
front faring on bike.
2. loosen center screw from front faring on bike.
3. slide windscreen up and remove from front
faring. (handle with care so not to scratch wind-
screen).
4. loosely install two t56324 mounting brackets
onto supervisor outboard slots (threaded studs
pointing upward & toward driver)
5. slide center mounting bracket t56338 over
center boss on faring with stud facing up and
toward driver.
6. Place supervisor so the center slot aligns with
the center mounting bracket.
7. feed outboard brackets down into windshield
slot and over screw bosses (be sure bracket is
around boss on faring.)
8. tighten nylon locking nuts on end brackets
(working both sides simultaneously)
9. tighten center nylon nut on light bar base.
10. slide windscreen down over center screw on
faring, then feed each end of windscreen down
over outboard bosses on faring.
11. Place two outboard faring screws back into
faring bosses.
(make sure to align screws with brass inserts
within faring boss)
12. tighten (3) faring /windscreen
screws
13. Red wire is common power, White and black
wires are both negative ground.

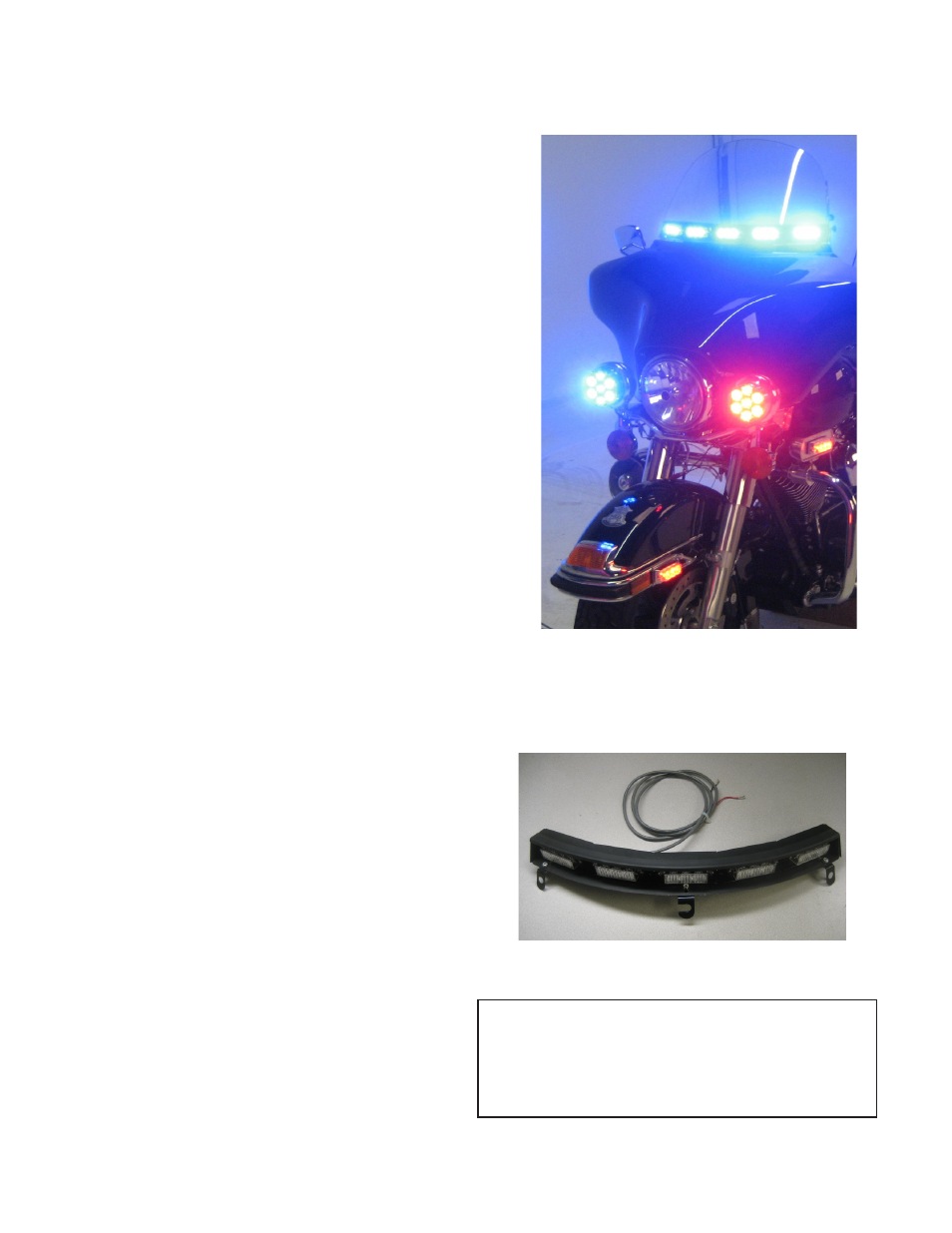

front lighting options
LED Supervisor Operation:
(5) leD head light bar shown : leD’s
#1,3,& 5 are synchronized and leD’s #2 &
4 are synchronized. flash patterns are pre-
set to triple flash P1 from the factory.
