Code 3 DuoBeam II - Manual (Page 11)

11

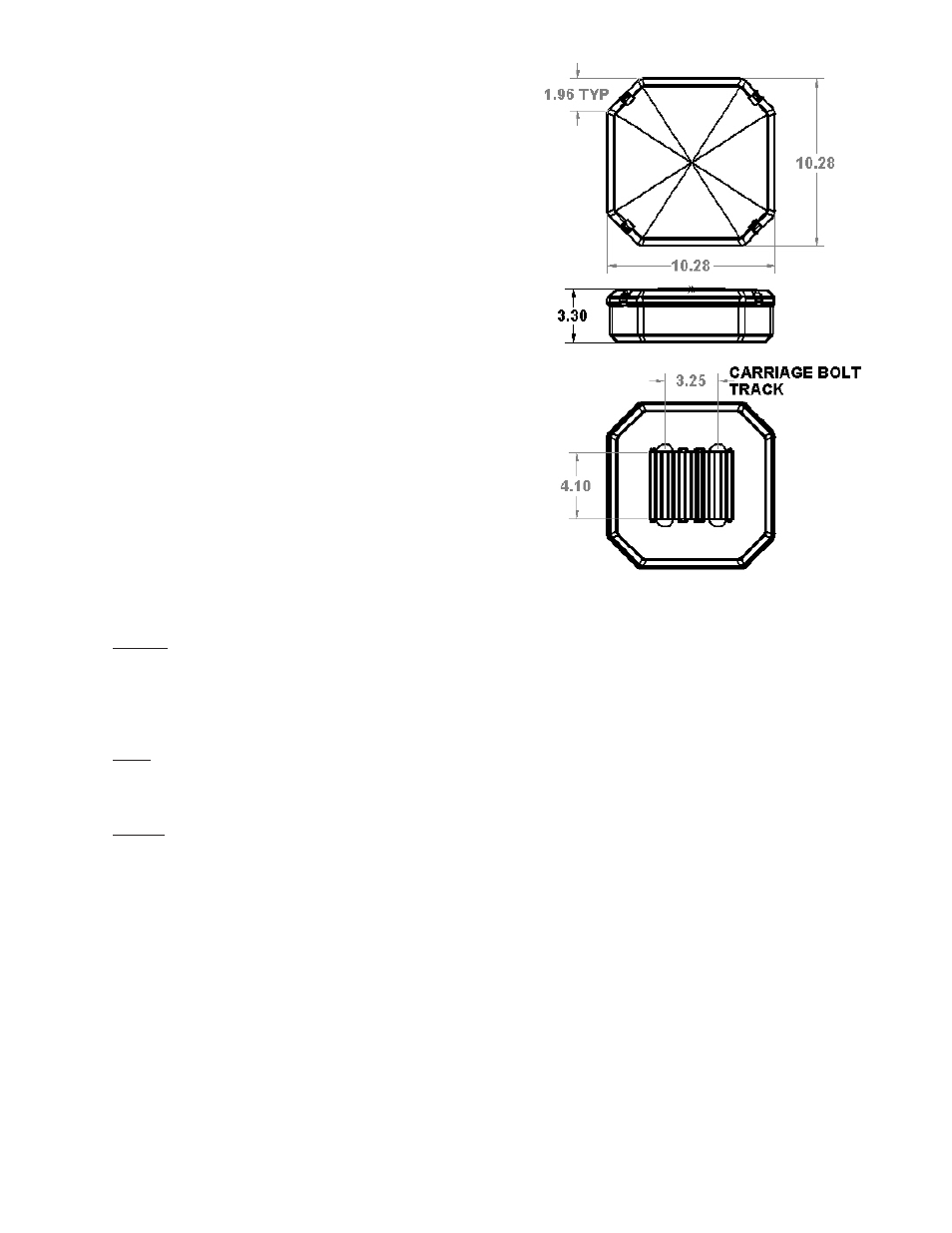

Dimensions & Specifications
Physical Dimensions - 10.28"L x 10.28"W x 3.30"T
Average Weight - 6 lbs.
Materials:
Upper &Lower Lens - Polycarbonate
Extruded frame - Aluminum alloy
Electrical Data:
All lightheads have Reverse Polarity Protection installed
Operating Voltage: 10-16 VDC
Current Draw:
PriZm II TM
(for all colors)
REF8 - .75A average
REF12 - 1.0A average
REF22 - .95A average (only 11 LED's are on at one time)
Torus TM
(for all colors)
TRS6 - .5A average
TriCore TM
TC6 (Red & Amber) - 1A average
TC6 (Blue & White) - 1.2A average
Maintenance
Lens Cleaning
Use plain water and a soft cloth, or Code 3 lens polish and a very soft paper towel or facial tissue. Because
plastic scratches easily, cleaning is recommended only when necessary (about every six months). Do not
subject the lenses to car washes that use brushes, as these will scratch the lenses.
