3

Installation Instructions - Cont:

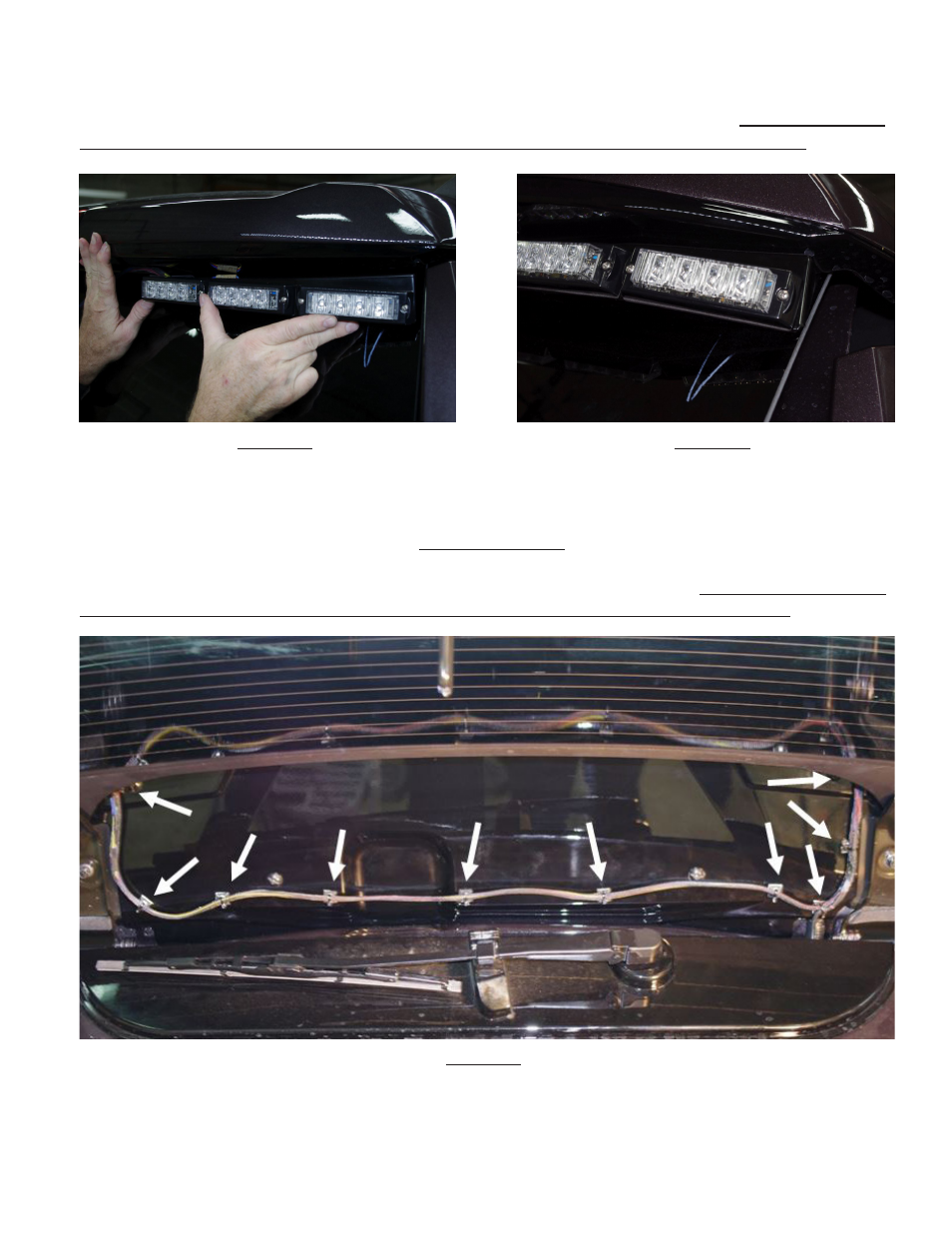

Step -6. Using light pressure, separate the spoiler from the glass and slide the Citadel bracket into place (See Figure

-5. Make sure the 10 mm nuts are loose enough that you don't have to force the bracket in place. IMPORTANT NOTE:

Make sure the outside edge of the bracket is even with the outside edge of the glass (See Figure -6).

FIGURE -5 FIGURE -6
Step -7.
Torque the #25 Torx Screws to 7 NM (62 Inch Lbs) and the 10 mm nuts to 9 NM (80 Inch Lbs).

Step -8. Repeat steps 4, 5, 6 and 7 on the opposite side.

Step -9. Attach the harness to the underside of the spoiler using the supplied square adhesive mounting bases and zip

ties to the areas shown (See arrows in Figure -7). IMPORTANT NOTE: Thoroughly clean all locations where the

square adhesive mounting bases will be installed with the supplied alcohol pads before adhering the bases to

the vehicle! Allow the alcohol to dry completely before applying the mounting bases. Make sure the harness is

securely attached up and away from the wiper arm or it could become entangled in the wiper arm.

FIGURE -7
Step -10.
Open the hatch, remove the protective tape from the vehicle's OEM boot and route the CELS Cable or Stan-

dard Harness wires (which ever is applicable) through the boot as shown in Figure -8 Page 4. Note: It will require the

use of wire pull lubricant or liquid soap to aid in feeding the cable/harness through the boot. Pull out the slack

from the cable/harness making sure there is just enough slack to open and close the hatch and rewrap the boot

with appropriate tape to seal the boot back up.
