Page 6

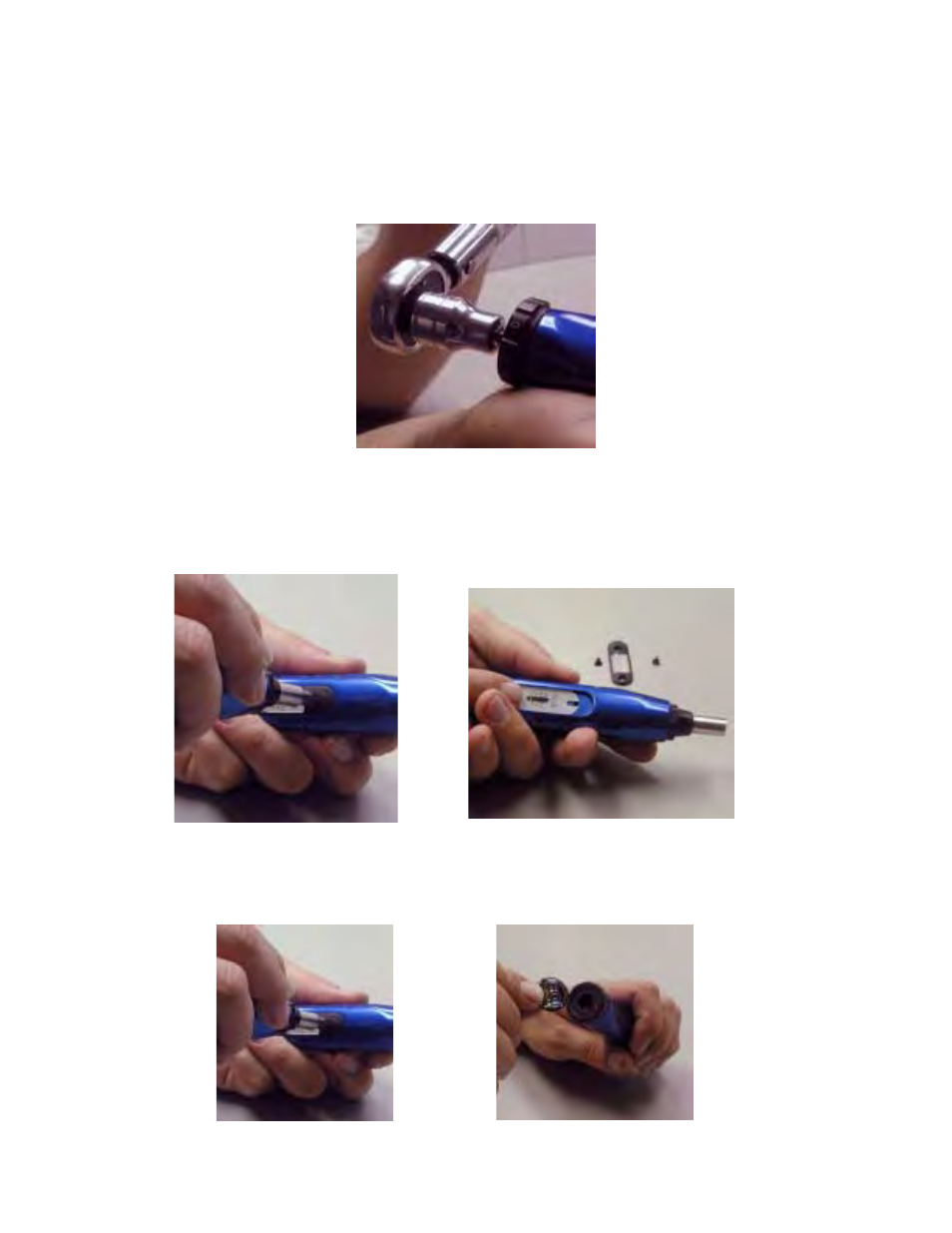

6. Place the 1/8” T-Shaped Hex in the back of the knob and Loosen the set screw. Pull
the knob back and turn it until it is on the “0” increment of the knob is aligned with
the 20% increment of the scale. Push the knob back to engage it and tighten the set
screw. Recheck the reading.
7. Use a 1/16” hex in a screwdriver to loosen and remove the 2 (two) screws on the
scale bezel. Remove the bezel. Move the scale until the increment line is aligned to
the lowest increment.
8. Place the Bezel over the scale and tighten the screws. Recheck the readings at 20, 60
and 100% of scale. If the screwdriver is calibrated torque the Bezel screws at 3±.2 IN.LB.
Then the set screw to 60±2 IN.LB. Place a new end plug on the end of the screwdriver.
