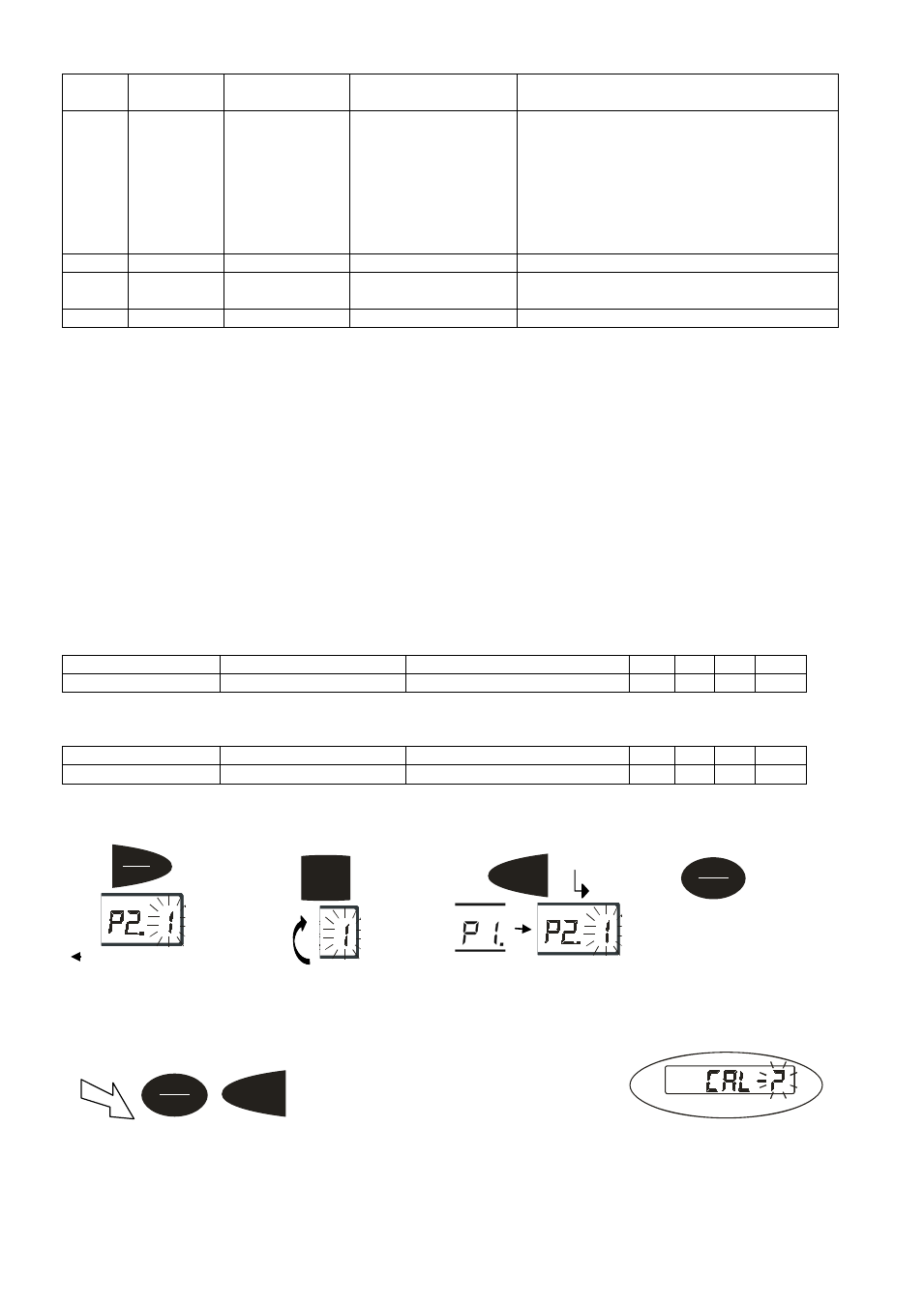

Page 12
Config
Menu
Avail.
Settings
Default
Definition
Detailed Setting
P7
00-31
10
Displayed Resolution
(00) = 500 (08) = 2400 (15) = 7000
(01 )= 600 (09) = 2500 (16) = 7500
(02 )= 750 (10 )= 3000 (17) = 8000
(03 )= 800 (11) = 3500 (18) = 10,000
(04) =1000 (12 )= 4000 (19) = 12,000
(05 )=1200 (13) = 5000 (20) = 15,000
(06) =1500 (14) = 6000 (21-31) = N/A
(07) = 2000
P8
0,1,2
0
Division Increment
0 = 1 ; 1 = 2 ; 2 = 5
P9
0-5
0
Decimal Position
0 = 123456 ; 1 = 12345.6; 2 = 1234.56 ;
3 = 123.456 ; 4 = 12.3456 ; 5 = 1.23456
P10
0, 1
1
Calibration weight
0 = KG ; 1 = LB
You may choose to configure your scale for a higher resolution. The factory does not recommend increasing the
resolution above 3,000 divisions for a stable weight reading. Certain environments may cause the scale to be
unstable at factory settings, reduce the # of division settings to increase your stability.
Calibration Settings when configuring as an SBI 100 Indicator to a remote base
If you are configuring the SBI 100 Indicator to be used with a scale other than the PS3000 base, you will need to
alter the configuration setting in P7- P10 manually.
In order to configure the Indicator follow the steps defined below:
1. Determine the full capacity of your scale. Example: 3000 pounds
2. Determine the displayed division of your scale. Example: 1 pounds (this is your P8, P9, and P10 setting)
3. Divide the capacity by the displayed division to determine the displayed resolution of your scale. Example:
3000/1 = 3000 (this is your P7 setting)
You are now able to configure P7 – P10 as follows.
Primary Capacity
Displayed Resolution
Units Selectable Capacity
P7
P8
P9
P10
3000 x 1 lbs
3000
1500 x 0.5 kg
10
0
0
1
If primary capacity is 1500 x 0.5 kg, configure P7-P10 as follows:.
Primary Capacity
Displayed Resolution
Units Selectable Capacity
P7
P8
P9
P10
1500 x 0.5 kg
3000
3000 x1 lbs
10
2
1
0
Calibration Menu
Calibration can be done with 10% to 100% of requested load and can be calibrated with 1 or 2 calibration points
1.
On/Off
Zero
+
Tare
Units
HH
Change flashed digits
Tare
H
kg
H
Saves data and move down
to next Parameter setting
.
On/Off
Zero
Exits setup mode
Hold
H
kg
H
Moves flashing digit
