Salter Brecknell PS500 - Manual (Page 16)

0
35000 17.5000 175.000 1750.00 17500.0 17500
0
1750000
40000 20.0000 200.000 2000.00 20000.0 20000
0
2000000
50000 25.0000 250.000 2500.00 25000.0 25000
0
2500000
60000 30.0000 300.000 3000.00 30000.0 30000
0
3000000
70000 35.0000 350.000 3500.00 35000.0 35000
0
3500000
75000 37.5000 370.000 3750.00 37500.0 37500
0
3750000
80000 40.0000 400.000 4000.00 40000.0 40000
0
4000000
100000 50.0000 500.000 5000.00 50000.0 50000
0
5000000
Ⅷ. The meaning of some displayed symbols:
1. 0¯ ¯ ¯ ¯ ---------- zero point is over the setting range
2. 0 _ _ _ _ ---------- zero is below the setting range
3. Ad¯ ¯ ¯ ---------- ADC is over max. range;
4. Ad _ _ _
--------- ADC is below min. range;
5. ¯ ¯ ¯ ¯ ¯ ---------- weight signal is too large
6. _ _ _ _ _ ------- weight signal is too small
7. EEP.E0 -------- the EEPROM can’t be accessed;
8. EEP.E1---------The parameters are not same with backup data;
9. EEP.E2---------The setting parameter(s) is not in normal range;.
10. CAL-Px --------scale’s calibration point;
11. CAL.Er ---------there is an error in calibration
12. X Hold ----------hold function is active.
13. Net ◄----------- The display reading is net weight
14. Zero ◄----------The scale is at zero point
15. CAP.-- -----------The the setting full capacity will be displayed
16. d.-- -----------The division will be displayed
17.
Px.y ----------- The No. x parameter is set to y.
18.
Lo.bAt ----------The voltage of batteries or input power is below 4.7V
========================================================

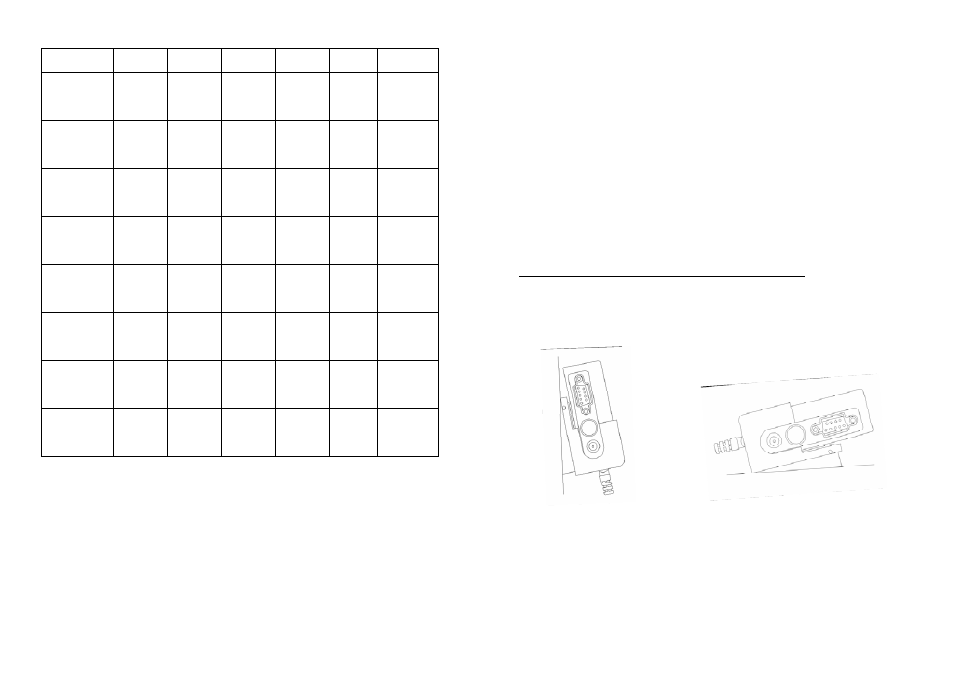

Ⅸ. The direction of indicator with bracket
The display is supplied with ABS plastic bracket, wall mounting vertically or bench
mounting horizontally to read the weight display as following drawings.
(1) Placed vertically (2) Placed horizontally
25
