AVer FC1320-P&PW user manual User Manual
Page 13
7
ENGLISH
Hardware Installation and I/O Pin Assignment
1. Install with bracket

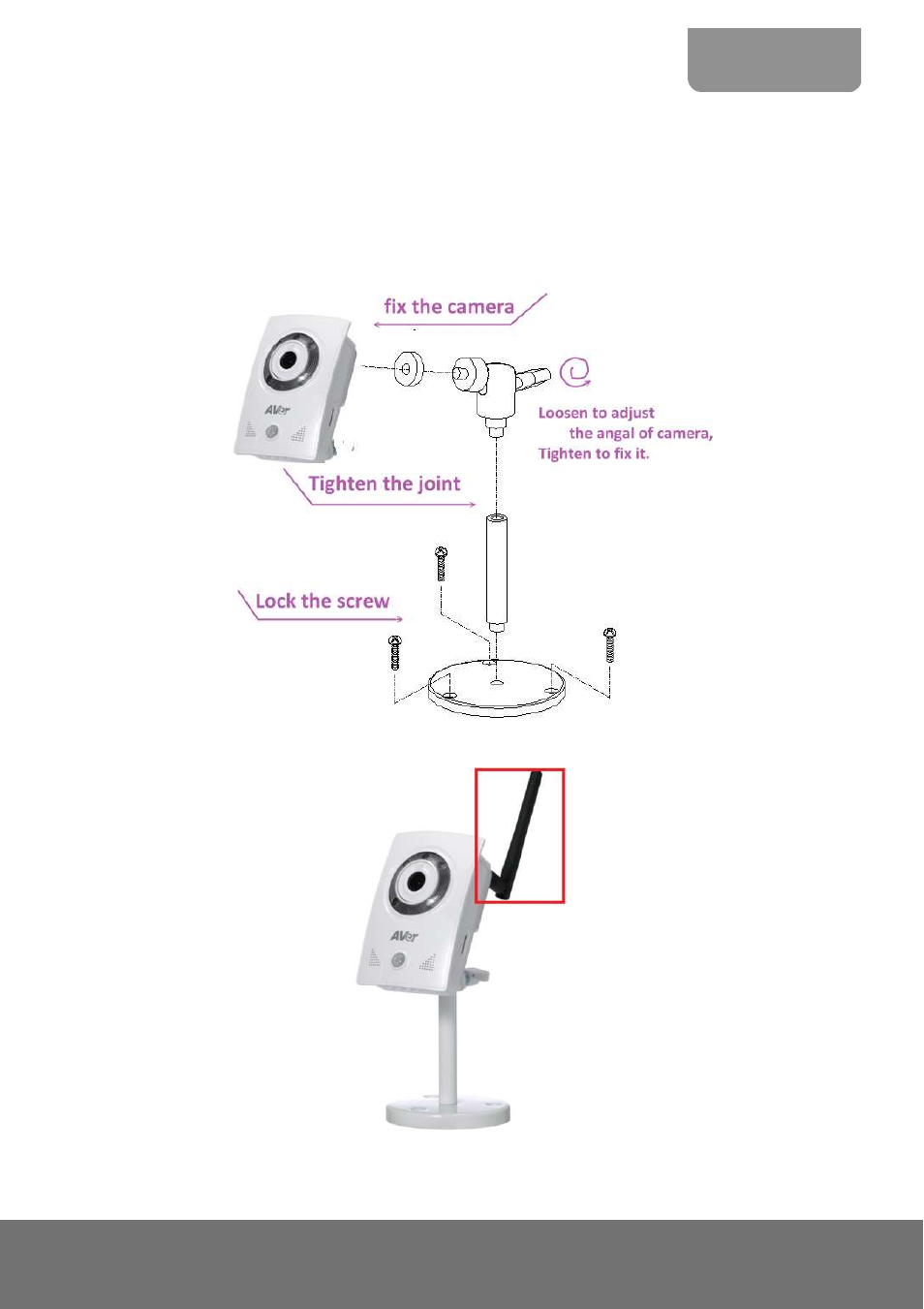

Please refer to the picture for camera installation. Use the screws to lock the bracket to the wall or
ceiling, and then connect the camera to the bracket. There’s a knob on the back of the bracket.
Loosen the knob and you can adjust the angle of camera. Tighten it to fix the angle.
For FC1320-PW wireless model, please install antenna.
