AVer System Contrll Pro User Manual (NV version) User Manual
Page 16
10
5.
Connect the RS232 cable to the RS232 port of the RS485 to RS232 converter.
6.
Connect another side of RS232 cable to the RS232 port of the DVR server.
7.
Power on the System Controller.
8.

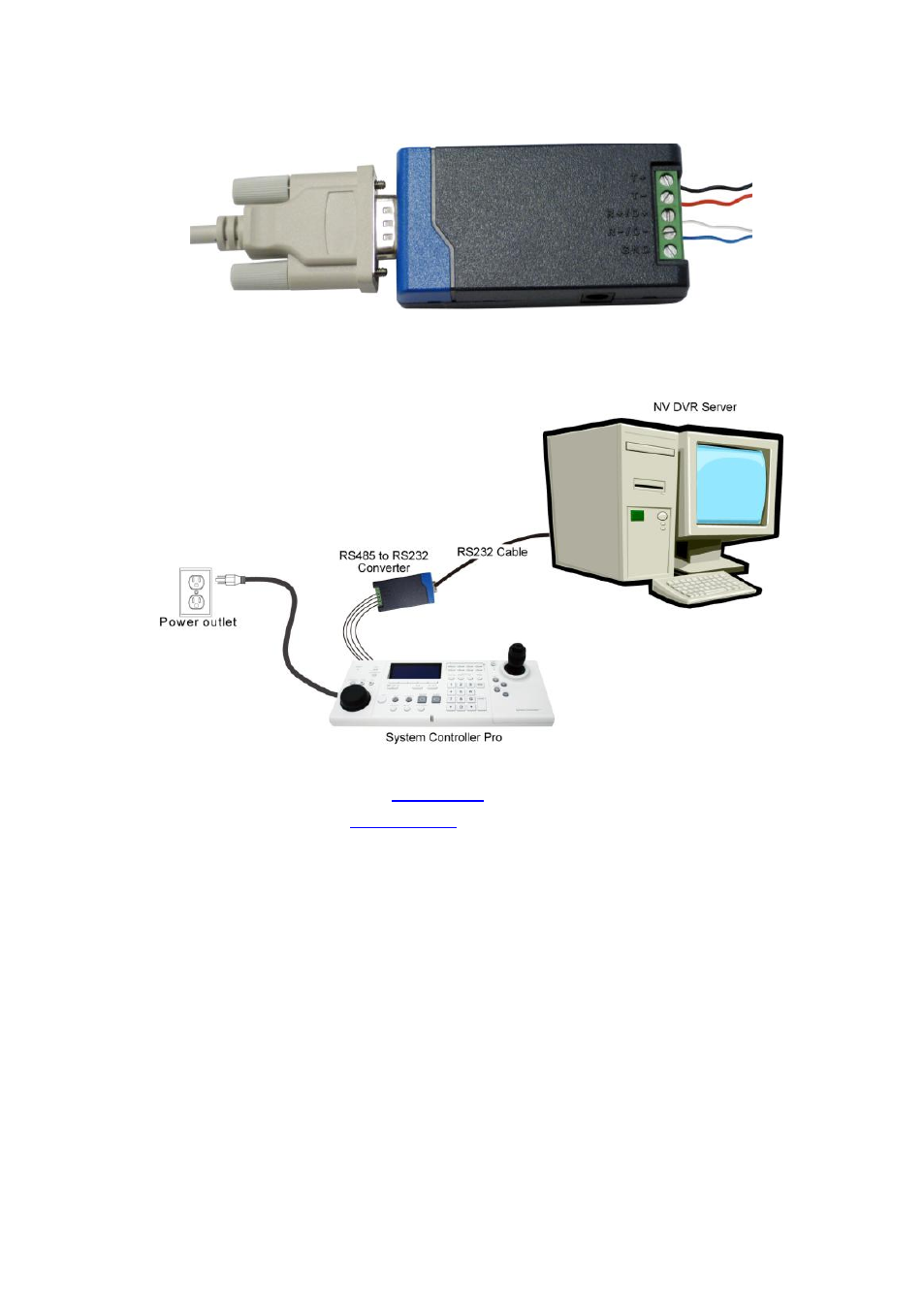

The following figure is an example of the installation illustrate.
9.
After hardware installation has completed, please remember to enable the system controller
function on DVR server (see also
) and select the correct operating mode on the
System Controller (see also
).
