AVer System Contrll Pro User Manual (NV version) User Manual
Page 10
4

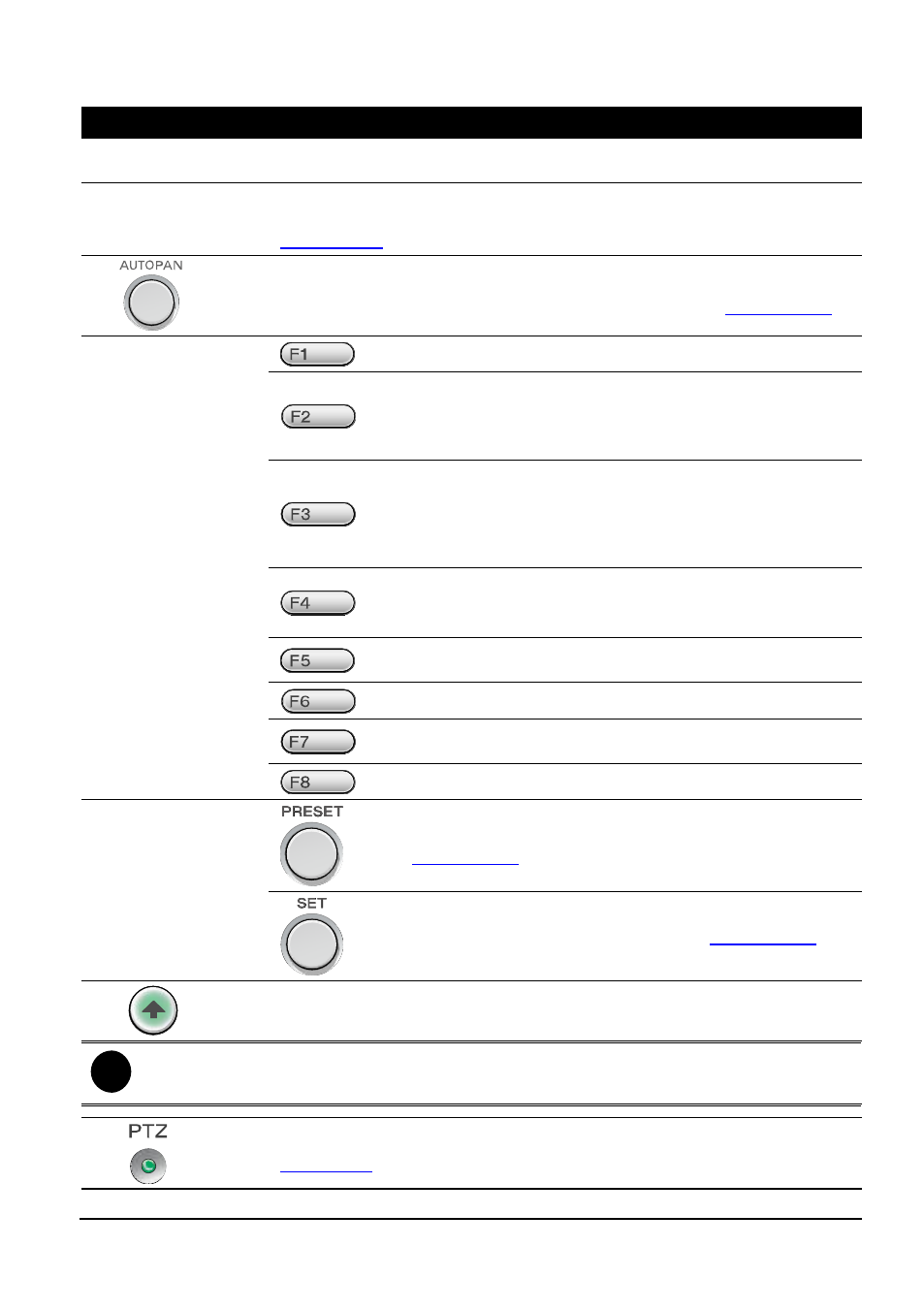

Function
Description
(6) LCD Screen
To operate the each function in multi-functions menu and view system
related information.
(7) Multi-function
Buttons
Each button represents a function that is corresponding to the function
display on the LCD screen. Press the button and operate it (see also
Chapter 2.10
).
(8)
Enable/disable the PTZ camera move automatically that is based on the
selected camera group preset position number (see also
).
(9) Custom
Function Buttons
To view system information.
Enable/disable recording. Press it to start recording and
press again to stop recording. The authentication password
is required for stop recording. Using numeric key pad to
enter the password and press Enter button to confirm.
Enable/disable network connection. Press it to connect the
network and press again to disconnect the network. The
authentication password is required for stop network
connection. Using numeric key pad to enter the password
and press Enter button to confirm.
To enter system setup mode. The authentication password is
required to enter system setup mode. Using numeric key pad
to enter the password and press Enter button to confirm.
To freeze/un-freeze the surveillance screen. Press it to
freeze the screen and press again to un-freeze.
To extend/fold camera tree window.
Open/close PTZ control panel. Press it to call out the PTZ
control panel and press again to close it.
Call out Logout dialog.
(10) Preset/Set
Button
Move the PTZ camera to the selected preset position (see
also
).
To setup the PTZ preset position (see also
))
(11)
Enable/disable joystick as a mouse function.
i
User can adjust the move speed of the mouse cursor on the Windows system where the
DVR system installed on it. Please go to Start > Control Panel > Mouse.
(12)
When lights up in green, user can use PTZ related operation(see also
).
(13) Joystick
To control PTZ camera to left, right, up, down, zoom in, and zoom out.
