G G e e t t F F a a m m i i l l i i a a r r w w i i t t h h t t h h e e A A V V e e r r V V i i s s i i o o n n F F 1 1 7 7 H H D D + +
(3)
(1)
(5)
(7)
(8)
(4)
(6)
(9)
(2)
(10)

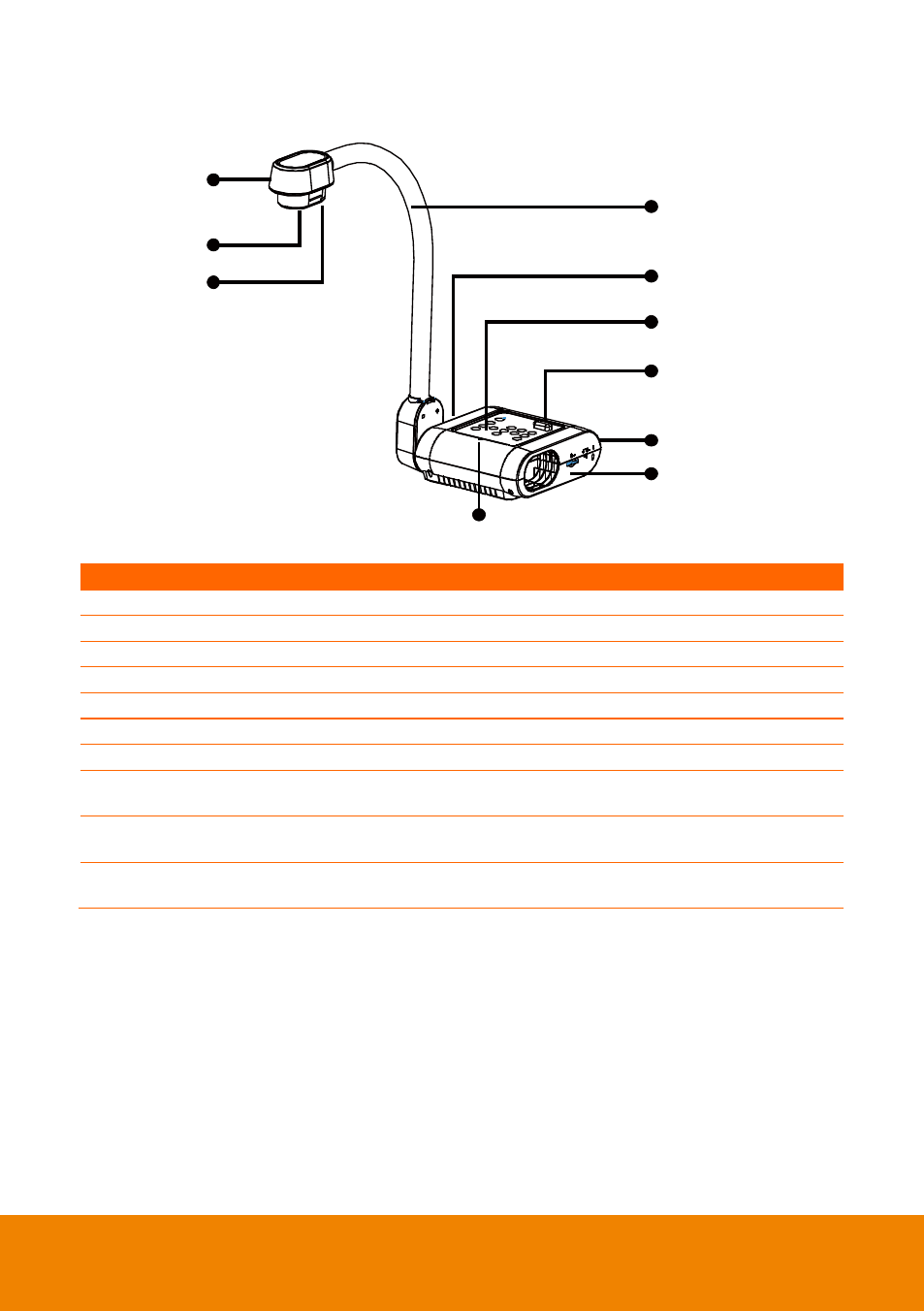

(fig. 1.1)
Name Function
(1) Camera head Contain the camera sensor.
(2) Camera lens Focus the image in the camera.
(3) LED light Provide light to enhance the lighting condition.
(4) Flexible arm Provide adjustable viewing coverage.
(5) Left panel Connections for HDMI output/input external display device.
(6) Control panel Easy access to various functions.
(7) IR sensor Receive remote control commands.
(8) Rear panel
Connections for power, computer, RGB/RCA external display device,
and USB to PC.
(9) Right panel
Connections for the camera head holder, SD card, TV-RGB display
output switch, and antitheft Kensington security lock compatible slot.
(10) Built-in MIC Record audio when recording video clip. The recorded sound will be
in monophonic.
