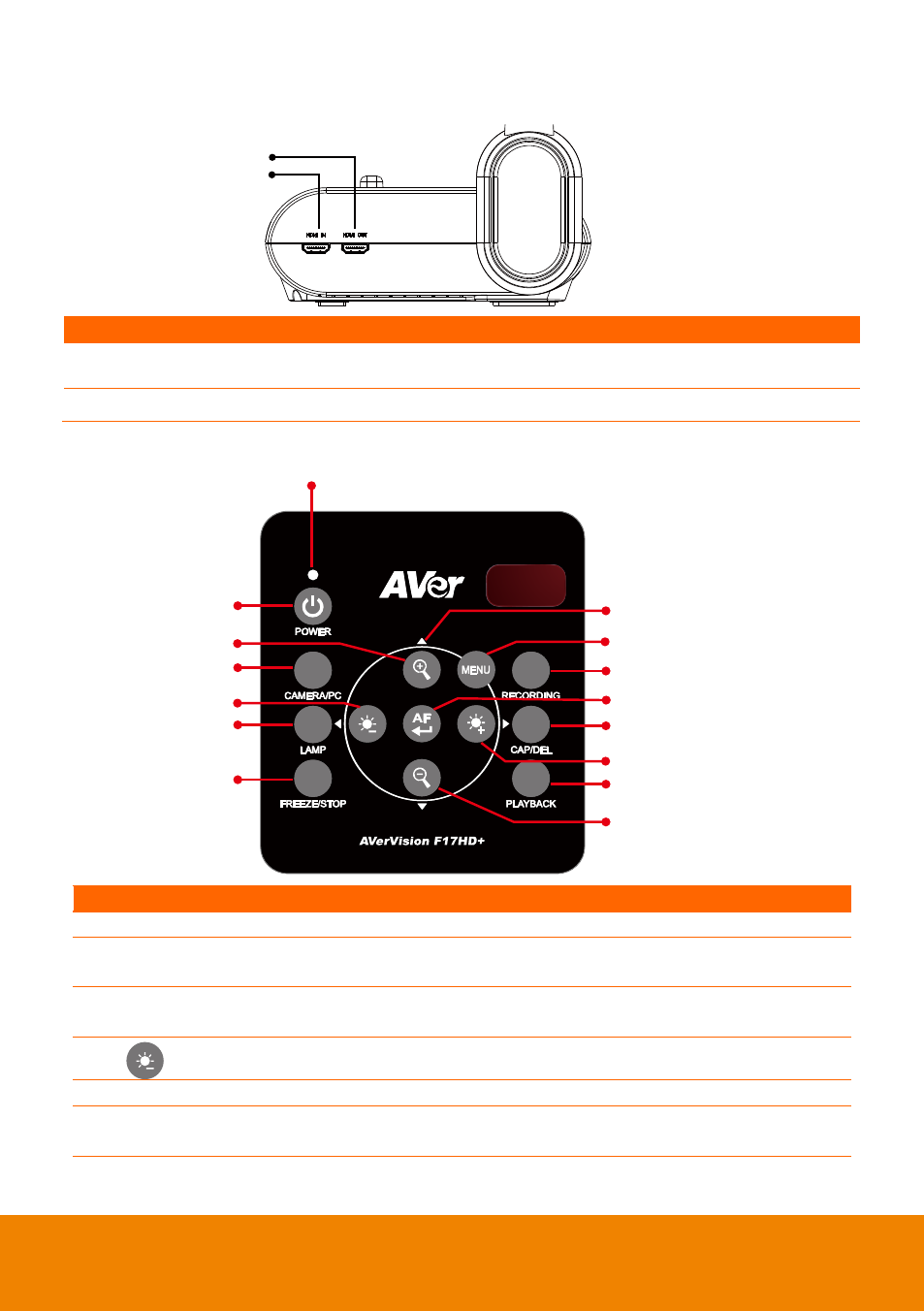

L e ft P a n e l

(2)

(1)

(fig. 1.4)

Name

Function

(1) HDMI Out port**

Output the video signal from the main system on an LCD monitor or
LCD/DLP projector with HDMI interface using HDMI cable.

(2) HDMI In port**

Connect an external HDMI source as an input via this port

C o n t ro l P a n e l

(1)

(2)

(3)

(4)
(5)

(6)

(9)

(10)

(8)

(7)

(11)

(12)
(13)

(14)

(15)

(fig. 1.5)

Name

Function

(1) POWER

Turn the unit on/standby mode.

(2) Zoom In

Increase the image magnification in camera and picture playback
mode.

(3) CAMERA / PC

Switch the video signal between camera or computer from the RGB
IN port.

(4)

Reduce the brightness of live view.

(5) LAMP

Turn the overhead light on/off.

(6) FREEZE/STOP

- Pause or resume image display in Camera mode.

- Stop audio & video playback in Playback mode.
