C C o o n n n n e e c c t t t t o o a a M M i i c c r r o o s s c c o o p p e e
Connect the AVerVision F17HD+ to a microscope enables you to examine microscopic
objects on a big screen.

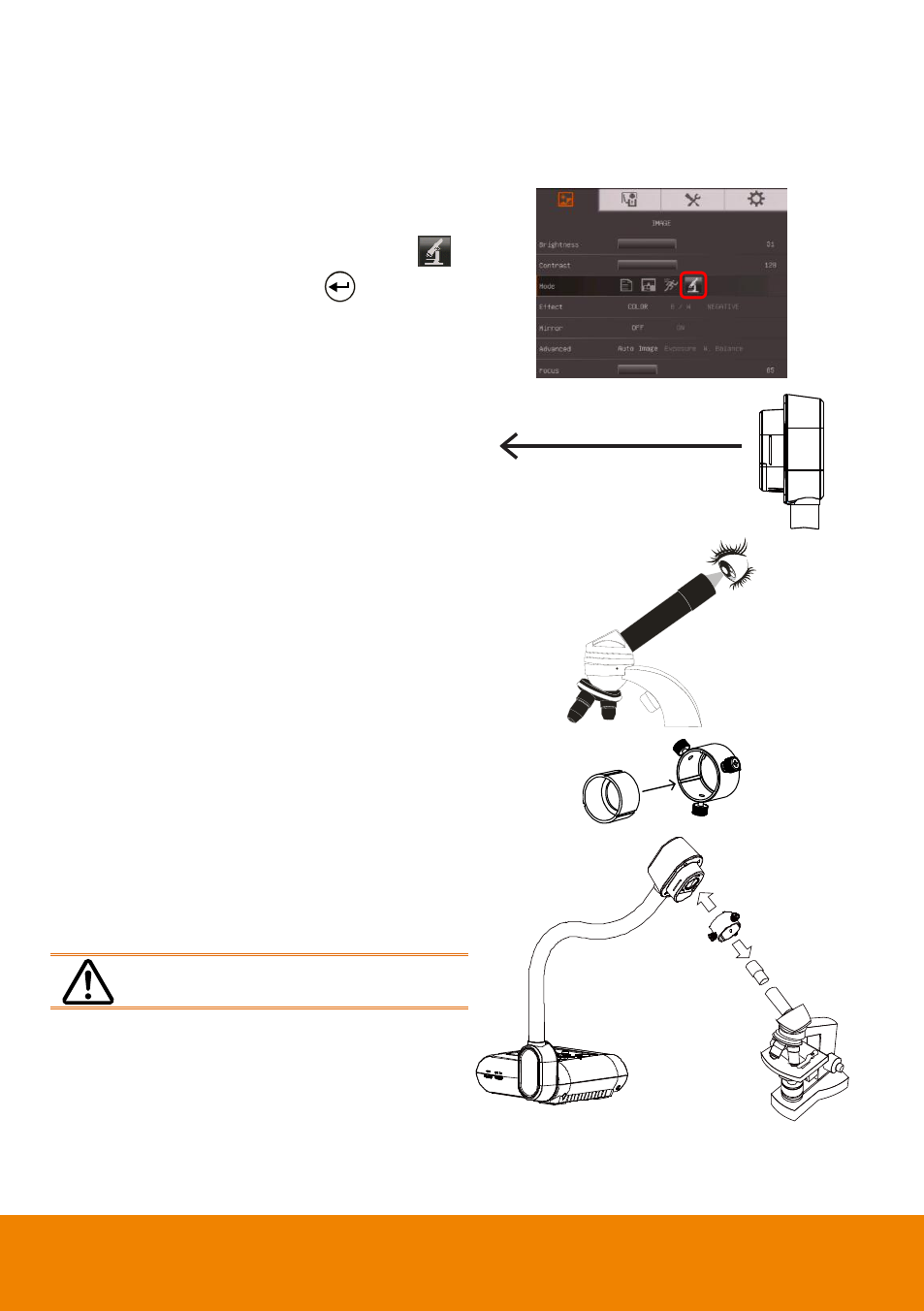

1. Change the image display mode to
Microscope. Press MENU > select
IMAGE tab > select MODE > select
(microscope) and press .
2. Aim the camera head at the farthest
point and press AUTO FOCUS.
3. Adjust the focus of the microscope.
4. Select the appropriate rubber coupler
size for the microscope eyepiece and
insert it in the microscope adapter.
5. Remove the microscope eyepiece from
the microscope and connect it to the
microscope adapter with the rubber
coupler inserted. Fasten the 3 bolts until
the adapter secures the eyepiece.
Microscope
eyepiece
Microscope
Adapter
Microscope
For the eyepiece, we suggest using
15.5mm eye relief or higher.
6. Attach the microscope adapter to the
AVerVision camera head. Then connect
it to the AVerVision and microscope.
