Alumax ABF Series User Manual
Page 7
7
10.10K
ABF3260 - ABF3648 - ABF3660 - ABF3672 - ABF4260 - ABF4860
5

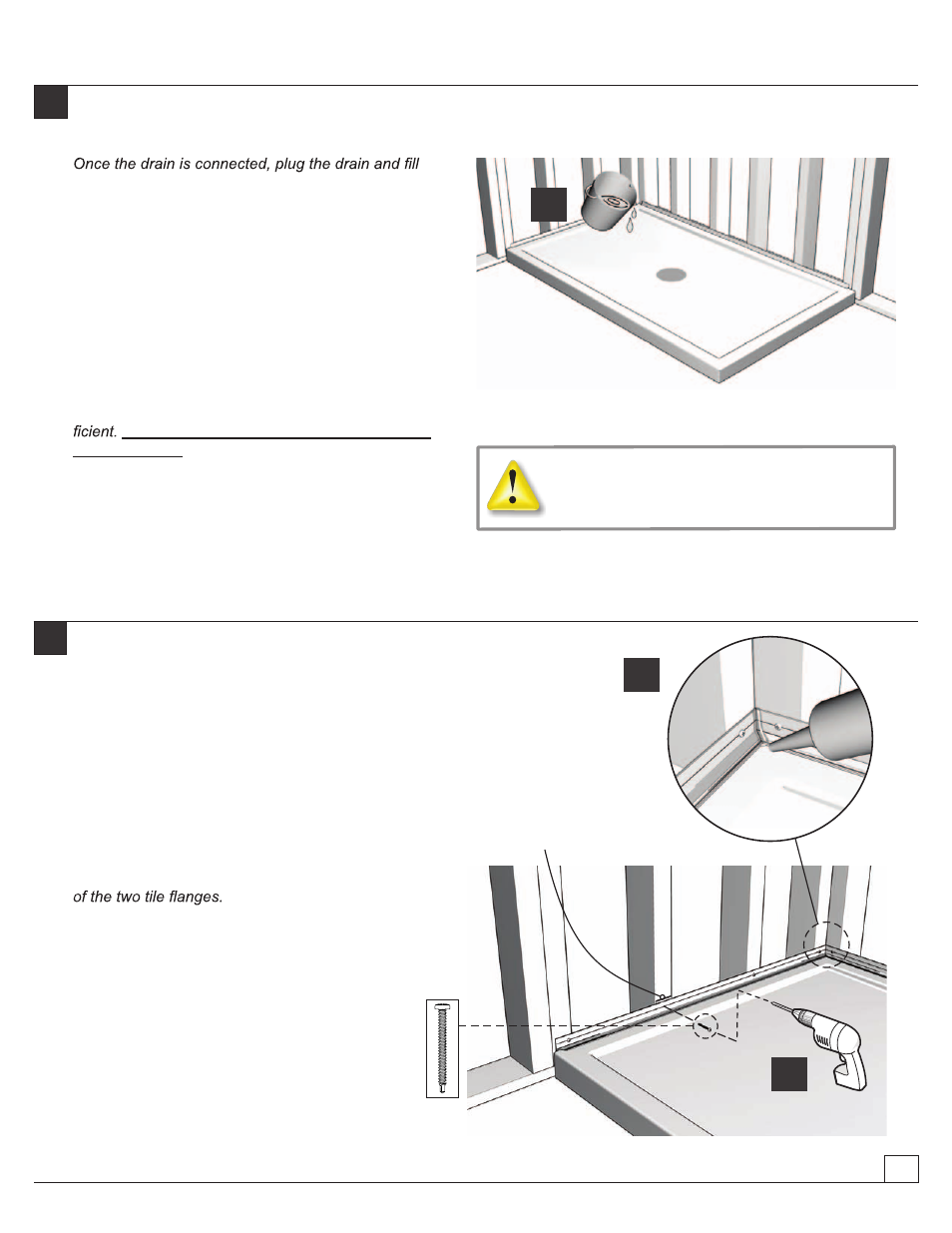

TESTING THE DRAINAGE.
6
SECURING THE BASE.
5A.
the base with a small amount of water.
5B.
Check for any leakage around the drain (some bub-
bles may appear) and below (if you have access to).
Unplug the drain and assure that the drainage is ef-
There must be no puddle of water accumula-
tion in the base.
5C.
5A
I
f water doesn’t drain properly even though the base is lev-
eled, do not continue this installation.
Please remove the base and return it to your dealer for
exchange.
6A. Fasten base to studs using self drilling
screws #6 x 1 1/2”
Shim if necessary
6A
6B
6B. Apply silicone sealant along the intersection
