ABF3260 - ABF3648 - ABF3660 - ABF3672 - ABF4260 - ABF4860
PENCIL DRILL SILICONE LEVEL TAPE MEASURE DRILL BITS 3/16 ß

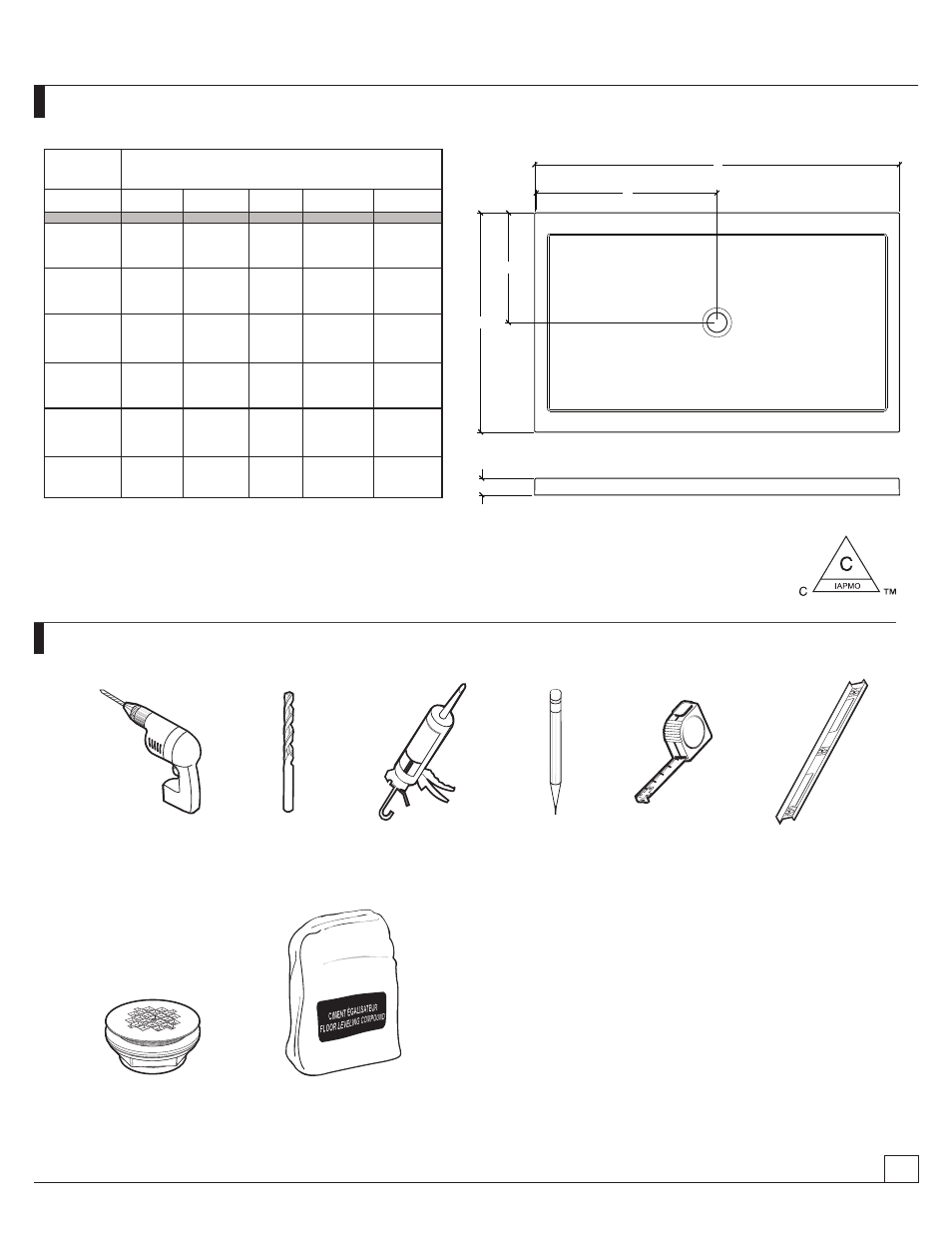

SPECIFICATION.
FLOOR LEVELING COMPOUND
or MORTAR
TOOLS AND MATERIALS REQUIRED.
Model Dimensions*
A B C D E
ABF3260
32”
[81cm]
60”
[152.4cm]
3”
[7.6cm]
16”
[40.64cm]
9”
[22.86cm]
ABF3648
36”
[91.4cm]
48”
[121cm]
2 3/4”
[7cm]
18”
[45.72cm]
24”
[60.96cm]
ABF3660
36”
[91.4cm]
60”
[152.4cm]
2 3/4”
[7cm]
18”
[45.72cm]
30”
[76.2cm]
ABF3672
36”
[91.4cm]
72”
[182.8cm]
2 3/4”
[7cm]
18”
[45.72cm]
36”
[91.4cm]
ABF4260
42”
[106.7cm]
60”
[152.4cm]
2 3/4”
[7cm]
21”
[53.3cm]
30”
[76.2cm]
ABF4860
48”
[122cm]
60”
[152.4cm]
2 3/4”
[7cm]
24”
[61.0cm]
30”
[76.2cm]
* Tolerance on dimensions: ±1/4” [.6 cm]
DRAIN
A
E
B
C
D
