Alumax ABF Series User Manual
Page 6
6
10.10K
ABF3260 - ABF3648 - ABF3660 - ABF3672 - ABF4260 - ABF4860
3
3A.

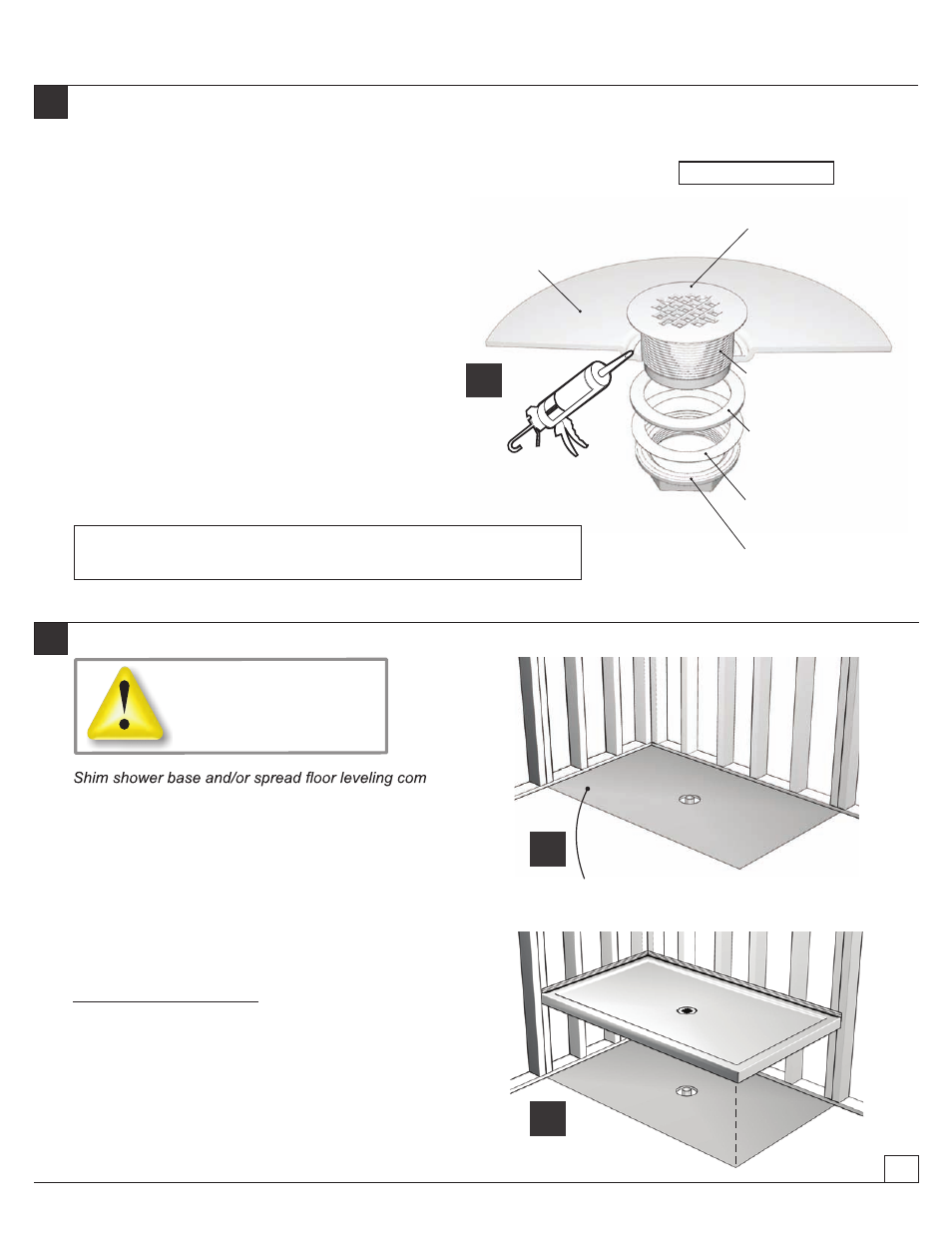

INSTALL THE DRAIN.
4
LEVELING THE BASE.
Prior to install the drain on the base, run a bead
of silicone between the drain body and shower
base.
Drain not included
Components might vary according to the model of drain used.
Refer to manufacturer’s instructions for the proper installation.
Cover*
Drain body
Shower base
Silicone
Rubber gasket
Cardboard gasket
Drain nut
3A
4A.
-
pound or mortar evenly over the entire area where
the base will be installed.
4B. Lower base over center of draining pipe and set into
place. Apply pressure to ensure that the compound is
in contact with the entire bottom surface of the base.
Verify that the base is level.
Floor leveling compound or mortar
4A
4B
IF THE FLOOR IS LEVEL.
PROCEED TO THE NEXT STEP.
