Alumax W1 TUB User Manual
Page 9
INSTRUCTION MANUAL
9

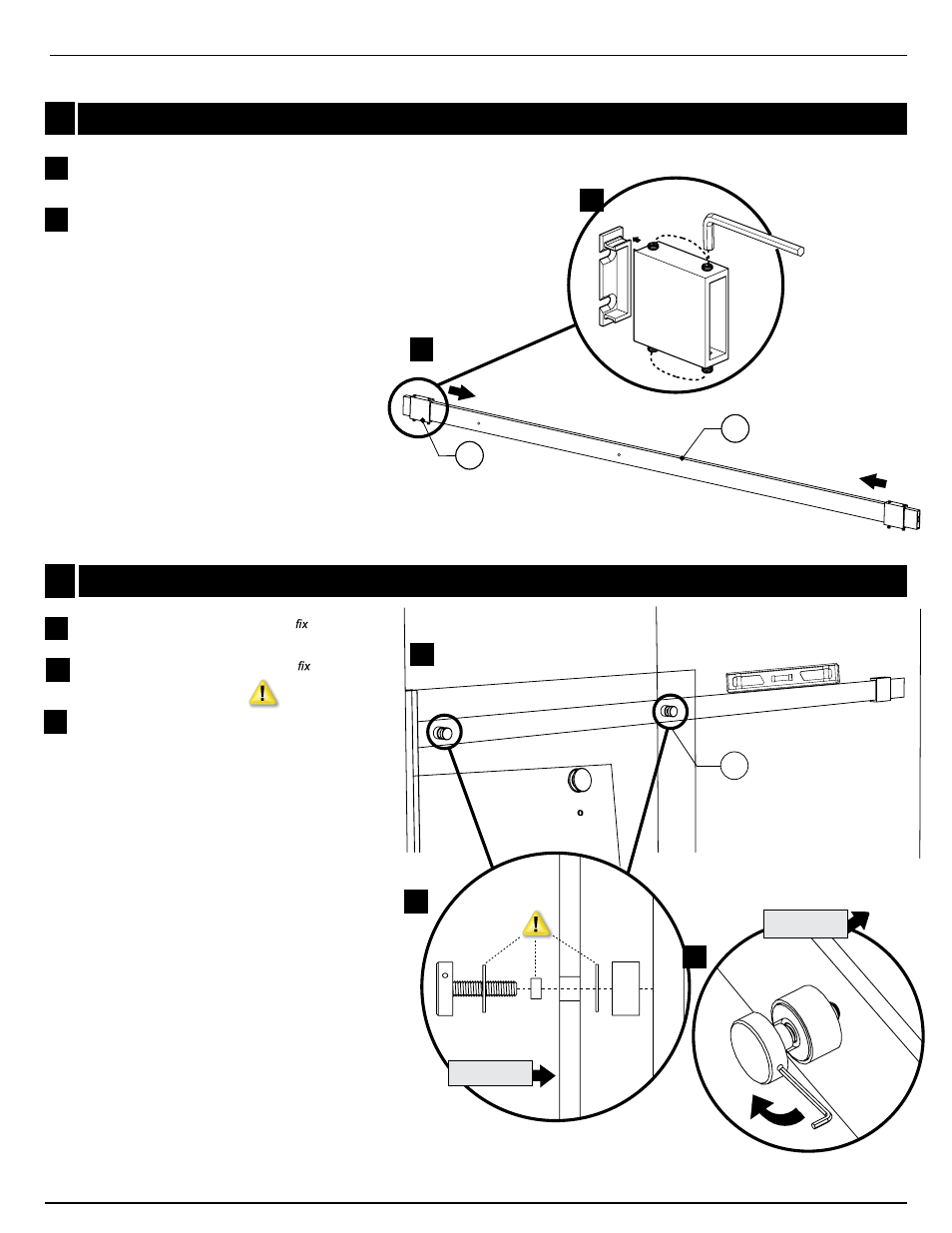

Align running rail holes with holes in panel. Level
rail.
Install glassfasteners (14) through the panel open-
ings (x2). Be sure to place gaskets between all contact
with glass and metal parts.
Fasten with hex 3mm key.
Unfasten set screws from wall bracket (13). (x4)
Then remove back plate from the wall braket and set
aside
With back plates of wall brakets removed, slide the wall
brackets away from the ends of the running rail (12).
GLASS FASTENERS
14
12
13
RUNNING RAIL
4
5b
5c
5c
5a
5a
5b
4b
4a
5
4a
4b
INSIDE OF TUB
INSIDE OF TUB
