DOOR PANEL ASSEMBLY 1
3/8’’
11
19
5
INSTRUCTION MANUAL
9
7
DOOR HANDLE HOLES

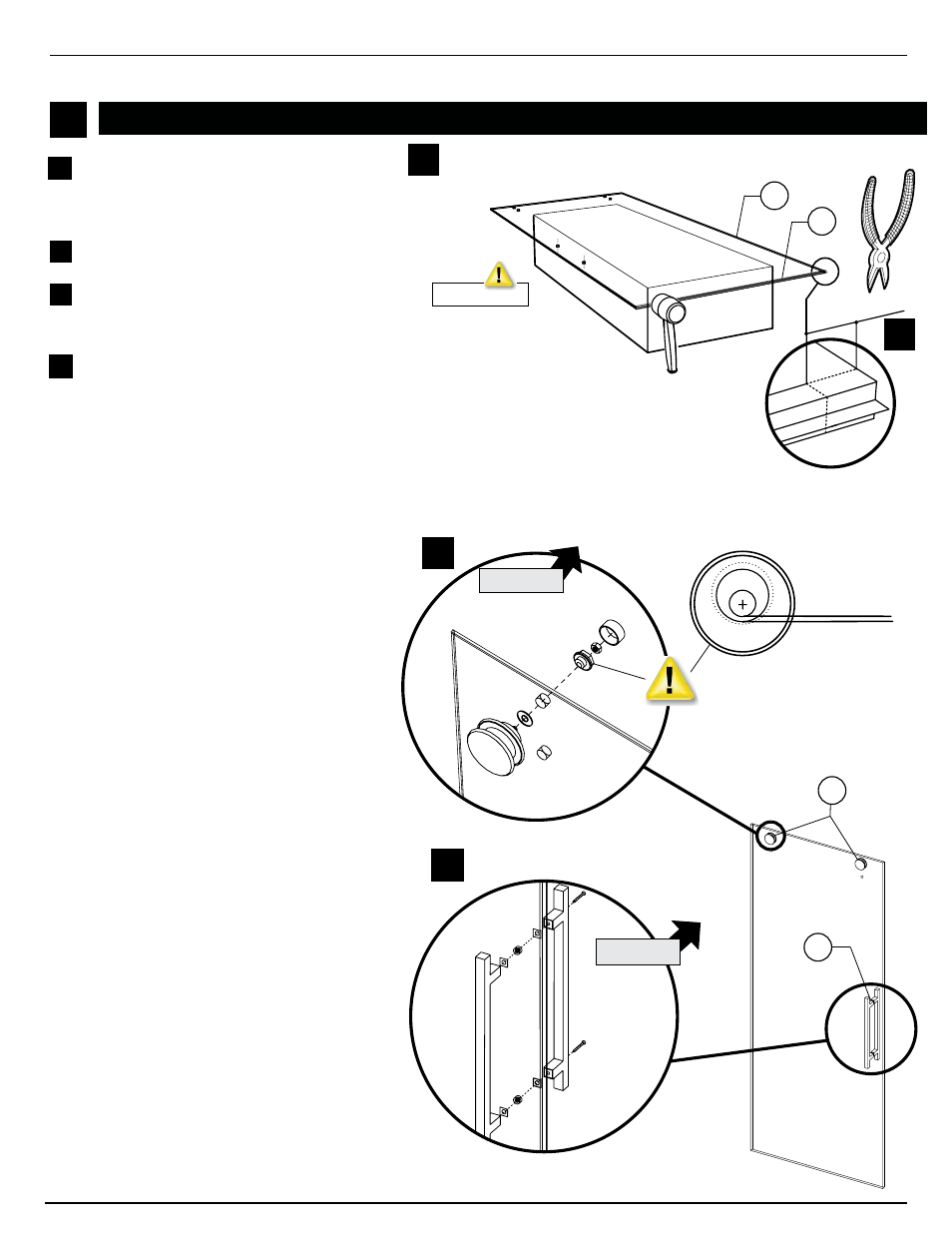

Use a mallet to install bottom gasket (7) on the
bottom of the door panel (9). To facilitate installation
place door panel on cardboard packaging box and use
as platform. Notice the holes are situated at the top of
the panel.
Measure and cut 3/8” off the edge of the gasket.
Be sure to cut opposing side of door handle holes.
Install both rollers (11) through the top holes of the
door panel. Be sure that the ajustment wheel is turned
to position the minimum thickness of wheel towards
the bottom.
Intall door handle (19). Holes for screws are located on
the back handle and must be located on the inner side
of the tub door.
1a
1c
1c
1d
1d
1a
1b
1b
MINIMUM THICKNESS
ORIENTED TOWARDS
THE BOTTOM
!!
INSIDE OF TUB
INSIDE OF TUB
