Alumax W1 TUB User Manual
Page 18
8
INSTRUCTION MANUAL
18

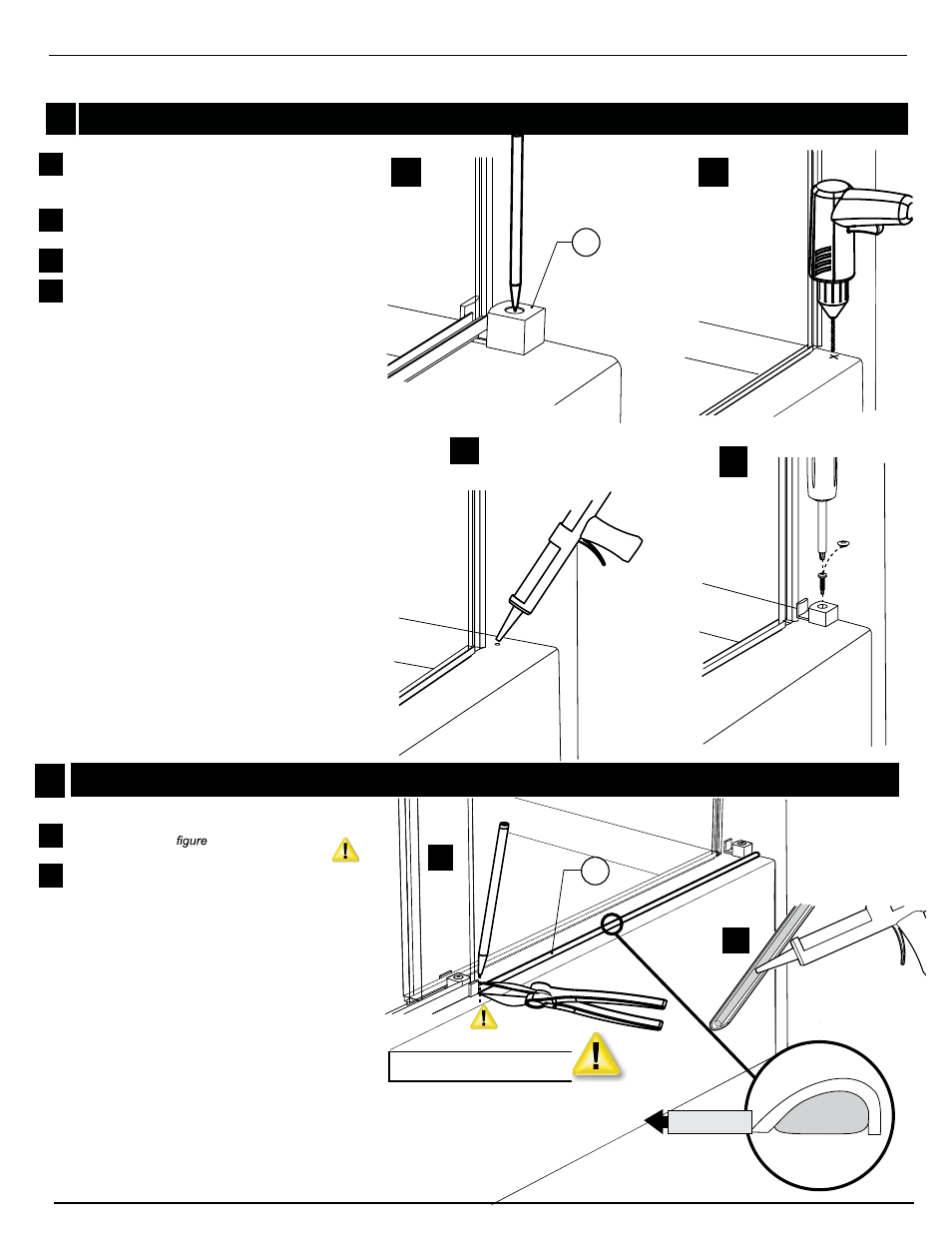

Place door receiver (18) against wall, place so
that the door panel slides smoothly into receiver.
Mark hole location.
Drill in marked location with 1/8” drill bit. Use ce
ramic drill bit if drilling through ceramic tiles.
Insert one drop of silicone into hole.
Screw in place with provided screw and cap with
screw cap.
Place threshold (8) between wall and bottom
guide as shown in
16a. Cut off any excess
length.
Apply a thin line on the bottom of threshold as
indicated in 16b. Secure threshold in place.
15 DOOR RECEIVER INTALLATION
18
THRESHOLD
16
15a
16a
16a
15a
15b
16b
16b
15b
15c
15c
15d
15d
CUT ONLY IF NECESSARY
INSIDE OF TUB
