Alumax L-STSX24 - Manual (Page 7)

7
INSTRUCTION MANUAL

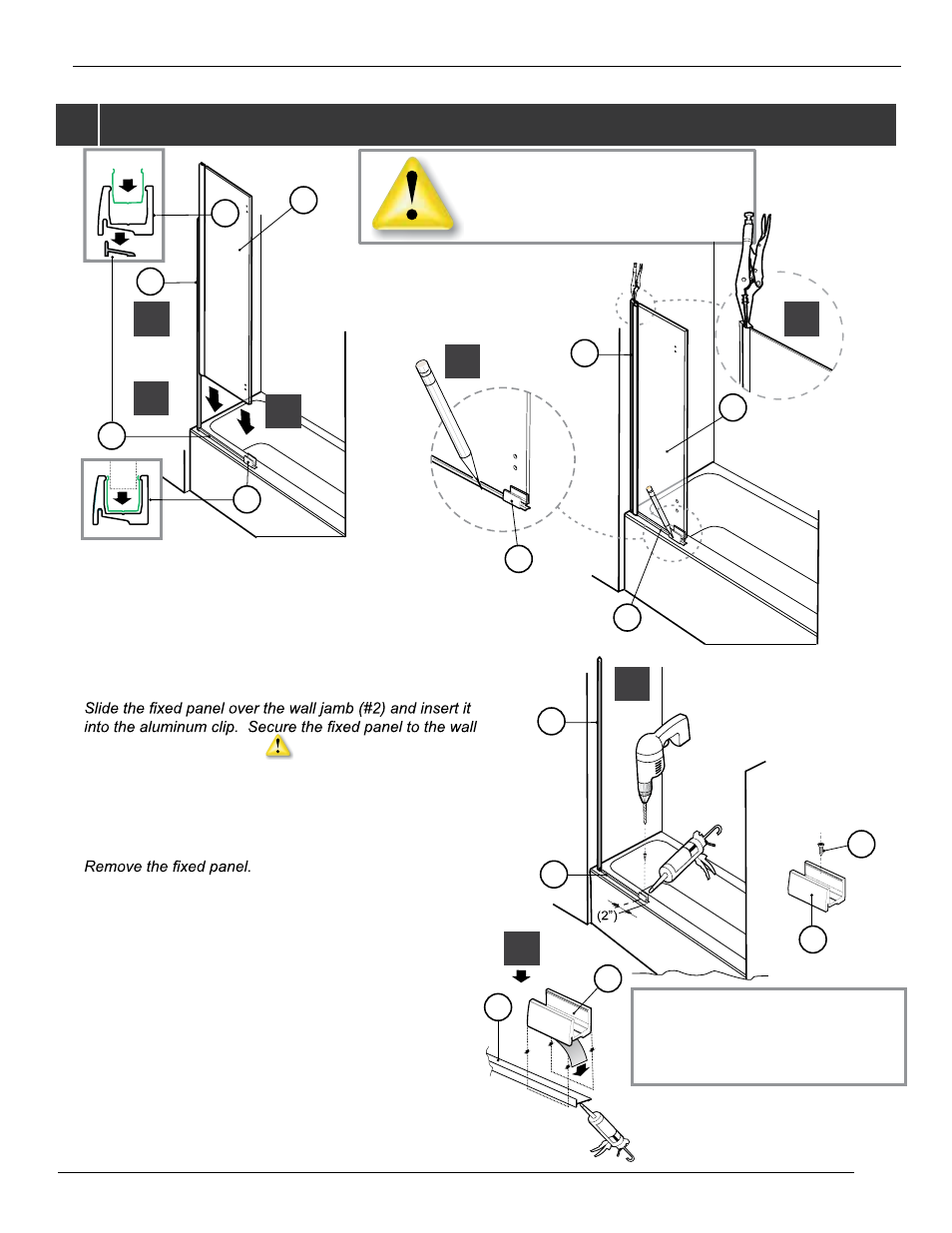

FASTEN THE THRESHOLD.
2
2A. Place the aluminum threshold (#4) on the tub threshold
and align it to the wall jamb ,add the clip(#15) to the end
of the threshold.
2B.
jamb using a locking plier.
2C. Trace the outer edges of the aluminum threshold
and the clip(front and side) on the tub threshold.
2D. Realign the aluminum threshold on the threshold and
drill a hole using a 1/8˝ drill bit at about 2˝ from the
edge. Put a drop of silicone in the hole and fasten the
aluminum “u” channel with a 3/4˝ long screw (#14).
COVER THE PLIER’S TEETH BEFOREHAND TO
AVOID SCRATCHING THE ALUMINUM PARTS.
2
3
2
3
4
2
2B
2C
2B
2D
2A
4
14
4
15
15
15
2B
15
2E
OPTIONAL
Paste up the clip (15) direct on the threshold
(4) with double sided very high bond adhesive
(VHB) tape.
15
4
