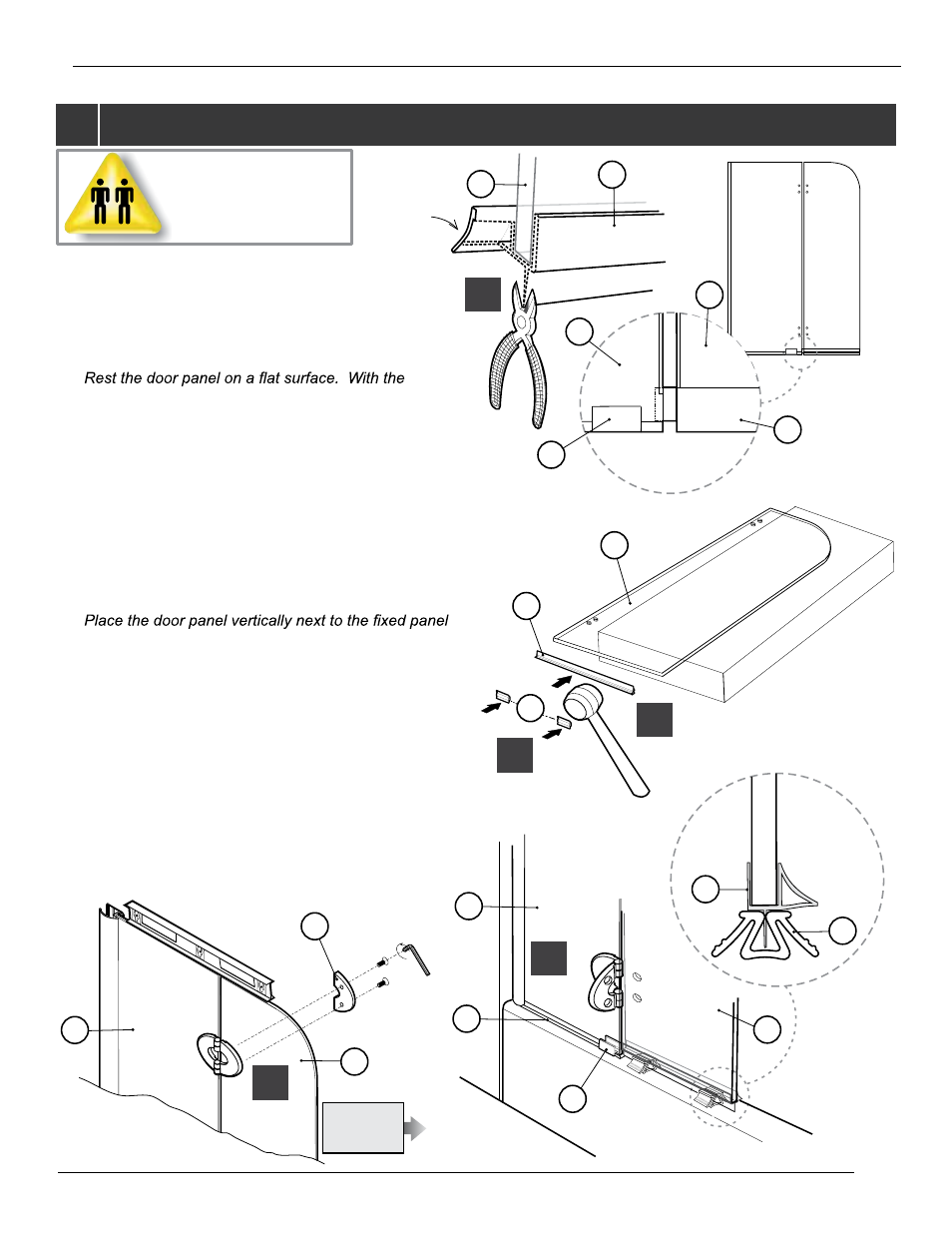

INSTALL THE DOOR PANEL.
7
7A. Cut the bottom door gasket (#7) as illustrated. The lip
should be about 3/4˝ longer than the rest.
7B.
mallet, insert the bottom door gasket (#7) at the
bottom of the door. Make sure the lip faces the bath
side.
7C. Install the 2 leveling blocks (#6) onto the bottom lip of
the gasket.
7D.
(#3). The holes for the hinges should be aligned.
7E. Fasten the second part of each hinge (#5). The door
panel must be leveled before tightening the hinges
completely. Remove the leveling blocks.
IT IS BEST TO HAVE 2 PEOPLE
WORKING ON THIS STEP.
