8

INSTRUCTION MANUAL

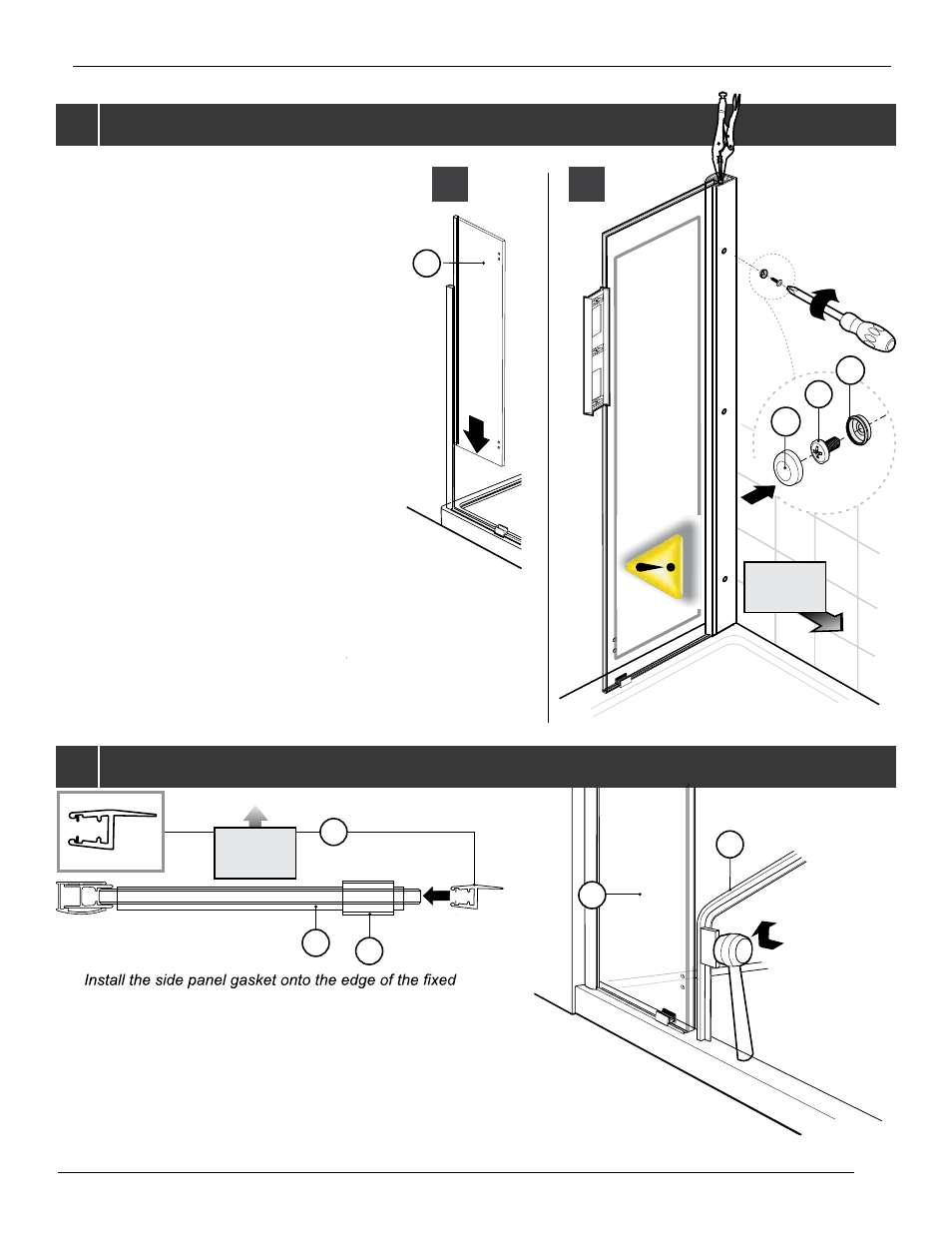

3B

INSTALL THE SIDE PANEL.

3

INTALL THE SIDE PANEL GASKET.

4

3A.

Reposition the side panel (3a) in place, ensuring

that the expander (3b) is properly inserted into

the wall jamb (2) and that the side panel (3a) is

inserted into the bottom glass clip (15).

3B.

Level the side panel and then temporarily secure

the expander (3b) to the wall jamb (2) via pliers

so as to ensure stay in that position. Proceed to

securing the wall jamb to the expander via #8 3/8

self drilling screws (12). Employ screw caps (11)

as shown.

I

F T

HE

P

AN

ELS N

EED

MOR

E

A

D

JUSTM

ENTS, S

H

IM

W

IT

H

1/8”

CL

EAR S

ETTING

BLOC

KS (IT

EM#15), PRIOR

TO

FI

XED

P

AN

EL.

3A

4A.

panel using a wooden block and mallet.

INTERIOR

SHOWER SIDE

11a

11b

INTERIOR

SHOWER SIDE

8

3a

15

8

3a

3a

12
