INSTALL THE DOOR PANEL.
6

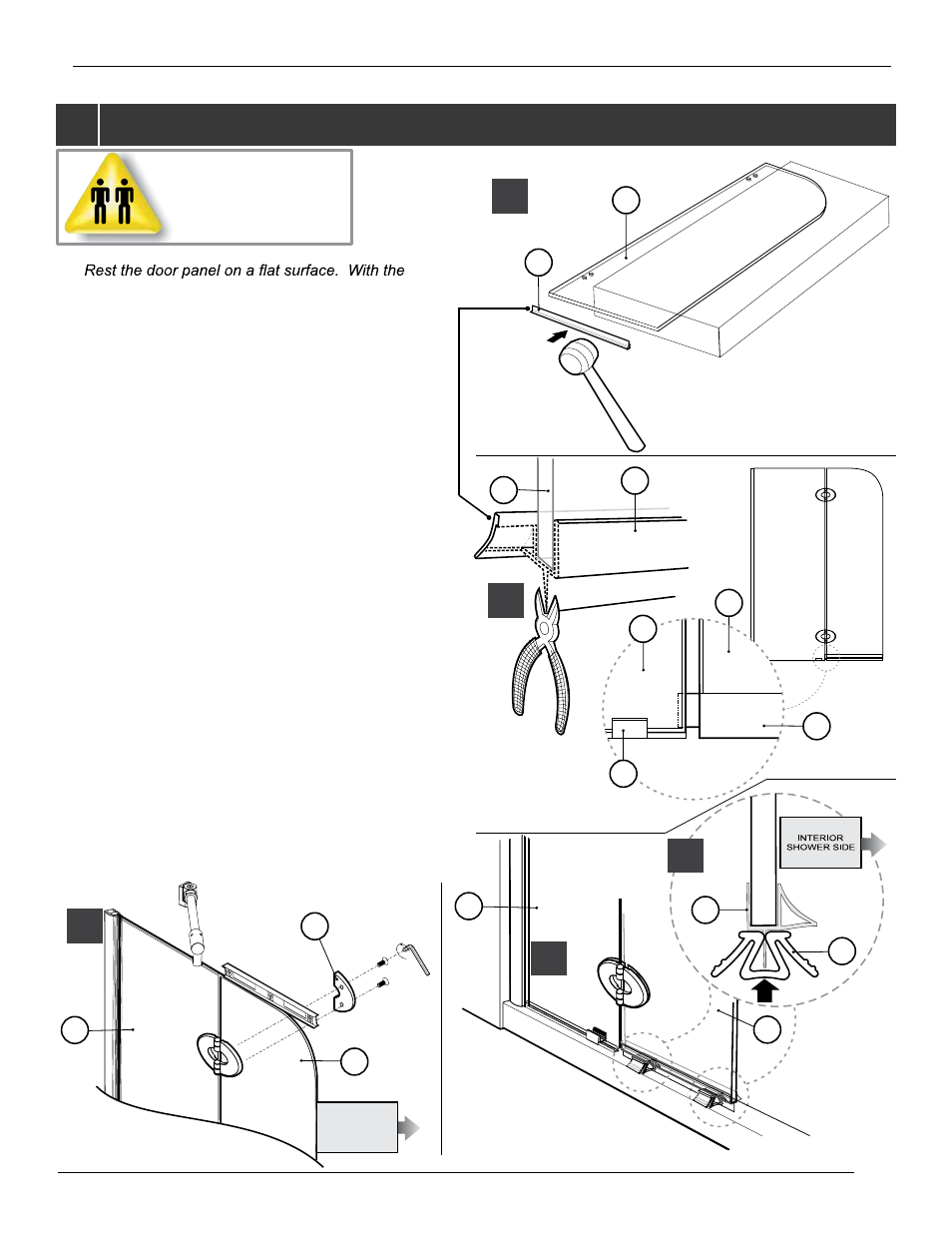

6C. Cut the bottom door gasket (6) as illustrated. The lip
should be about 3/4˝ longer than the rest.
6D. Install the 2 leveling blocks (9) onto the bottom lip of
the bottom door gasket (6) as shown. Place the door
panel (7) vertically next to the side panel(3a). The
holes for the hinges should be aligned.
6E. Fasten the second part of each hinge (#5). The door
panel must be leveled before tightening the hinges
completely. Remove the leveling blocks.
IT IS BEST TO HAVE 2 PEOPLE
WORKING ON THIS STEP.
7
6D
6B
6E
6
76
9
6
7
6C
FINAL RESULT
6B.
mallet, insert the bottom door gasket (6) on the
bottom edge of the door. Make sure the lip faces the
inside of the show
6
3a
15
6D
6
3a
3a
3a
3a
7
5
INTERIOR
SHOWER SIDE
