INSTRUCTION MANUAL

2

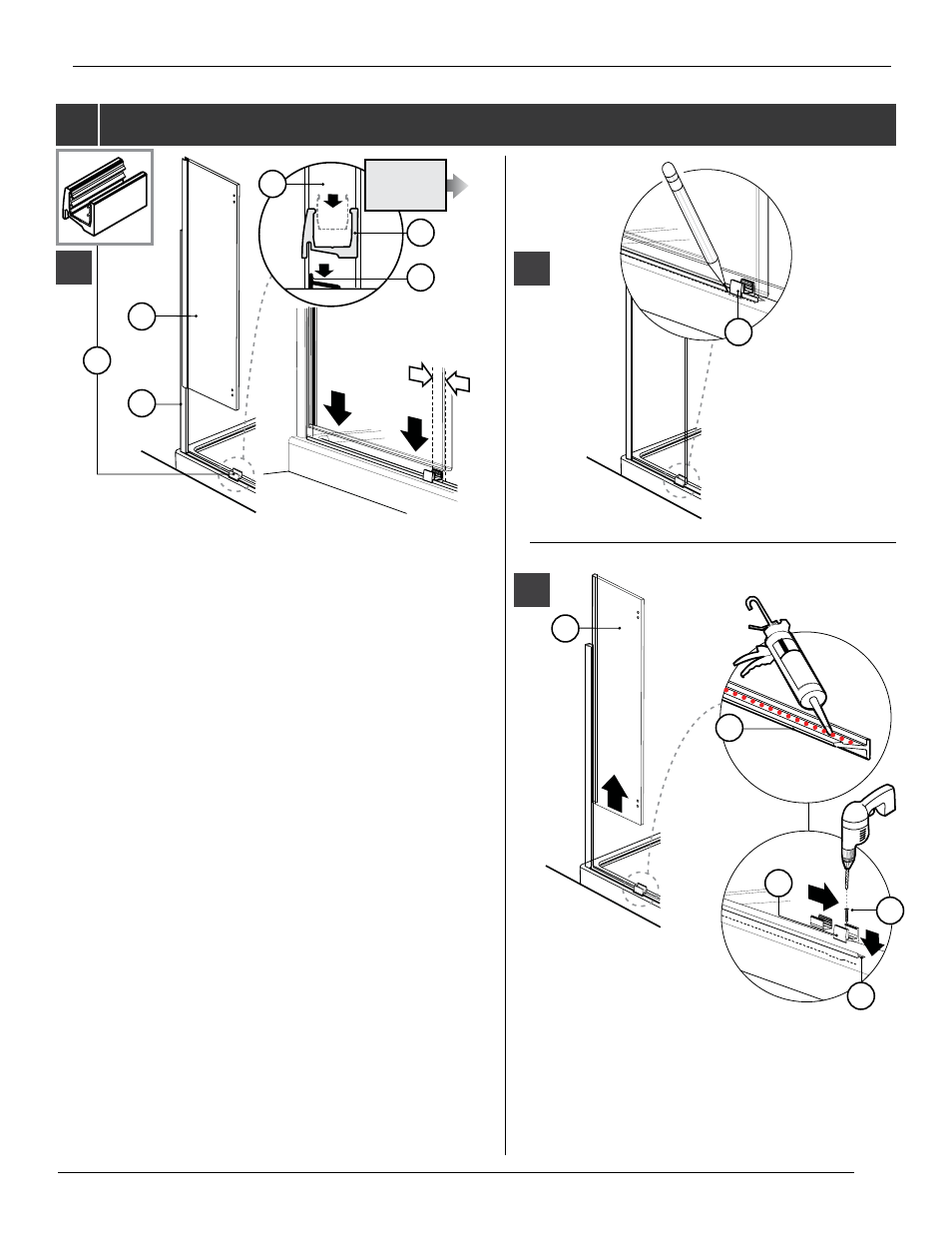

FASTEN THE BOTTOM GLASS CLIP.

2

2A.

Place the aluminum threshold (4) and bottom glass

clip (15) on the shower threshold and align it to the wall

jamb (2).

Slide the expander (3b) attached to the side panel (3a)

within the wall jamb (2). Ensure that the side panel

inserts itself into the glass clip and that the dimension

illustrated is respected.

2B.

Trace an outline of the aluminum threshold (4) as well as

the bottom glass clip (15).

2C

2C.

Remove the side panel (3a) and the expander (3b)

from the wall jamb (2). Run a bead of silicone down the

underside of the aluminium threshold (4). Reposition the

aluminium threshold and bottom glass clip (15) where

marked in the previouus step. Secure these two with a

#6 3/4 screw (14).

2B

3/4”

2A

4

3a

3a

4

INTERIOR

SHOWER SIDE

15

2

15

15

15

4

14
